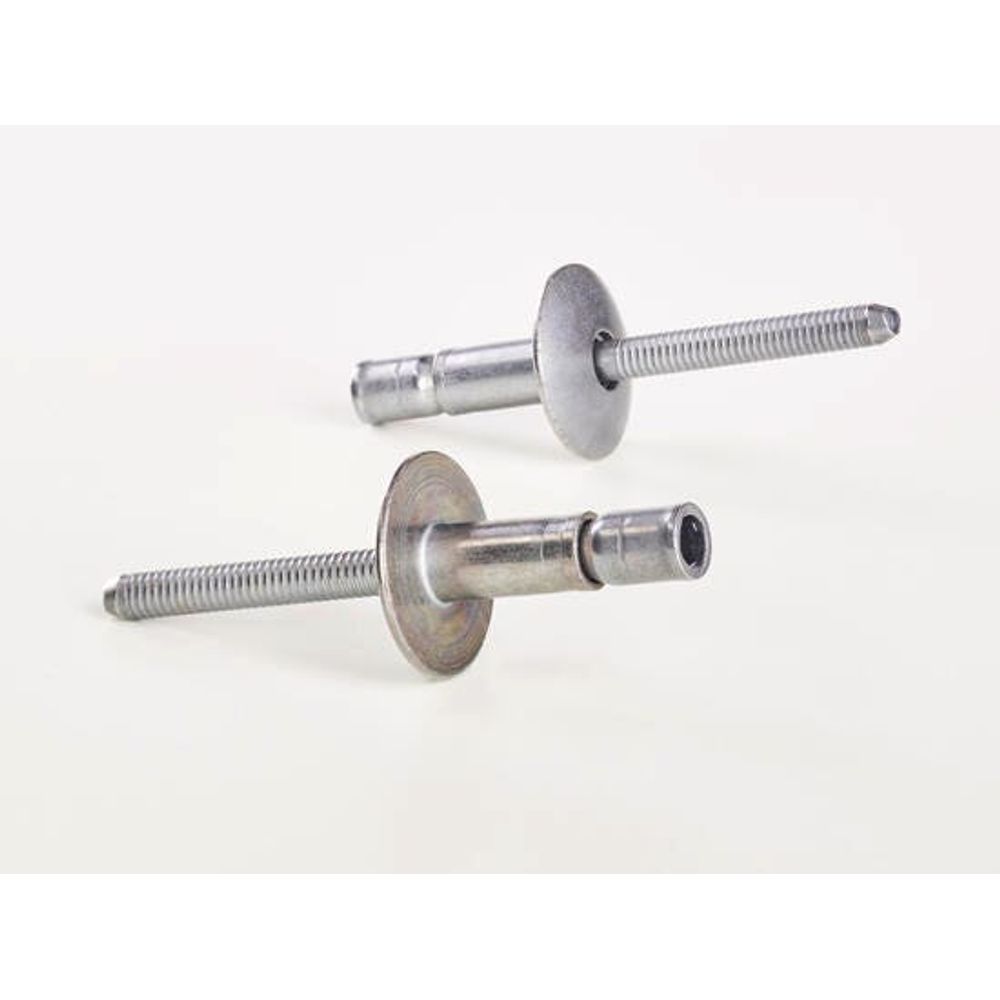

MONOBOLT® 6.4mm [1/4] (8) Steel / Steel Structural Rivet Nuts - SSCV-08-08
Cód:
SSCV-08-08
Opinião dos Consumidores:0

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

3.18-12.07 mm grip with 6.4mm [1/4] (8) Nominal Diameter based on Countersunk Head Style with Steel Body material and Steel Mandrel material

Monobolt

product name3.175-12.065 mm Steel/Steel Monobolt Structural Blind Rivets
Body MaterialSteel
Mandrel MaterialSteel
Finish-BodyZinc Plate
Finish- MandrelZinc Plate Zinc Trivalent
Head StyleCountersunk
Min grip mm3.18
Max grip mm12.07
Min Grip Inches0.125
Max Grip Inches0.475
Min Hole Size mm6.63
Max Hole Size mm7.01
Min Holes Size Inches0.261
Max Hole Size Inches0.276
Max Body Length mm16.76
Max Body Length Inches0.66
Flange Diameter mm11.38
Flange Diameter inches0.448
Flange Thickness mm2.29
Flange Thickness Inches0.09
Shear lbf2400
Tensile lbf1850
BrandAvdel

default

JDE_Weight_UOMLB
JDE_Weight_Per_UOMM
JDE_HTS_Code8308206000
JDE_Country_of_OriginUS
JDE_Lead_Time_Days70
JDE_Weight17.7717
Features

    Fast Facts:

  • Structural breakstem rivet.
  • Stem mechanically locked into body.
  • Blind hole, one-sided installation capability.
  • Multi-grip capability.
  • High shear and tensile strength.
  • Good sheet take-up performance.
  • Visible lock for quick and easy inspection.
  • Excellent hole fill via rapidly expanded body.
  • Wide choice of installation tools.
  • One fastener can be used to replace several standard grip fasteners.
  • Reduced fastener inventory and simpler stock control.
  • Compensates for irregular, oversized, slotted or misaligned holes.
  • Can stop sheet movement in non-standard holes.
  • Large gap closing capability.
  • Provides very strong, vibration resistant joints.
  • No damage, electrical problems, or rattling due to loose stems.
  • Breakstem fasteners can be customized to meet unique assembly requirements.

    • Specifications:
  • Sizes: 4.8mm, 6.4mm and 10 mm (3/16", ¼" and 3/8")
  • Materials: Aluminum alloy, steel and stainless steel 304 grade / A2 and 316 grade / A4
  • Headforms: Protruding and countersunk
