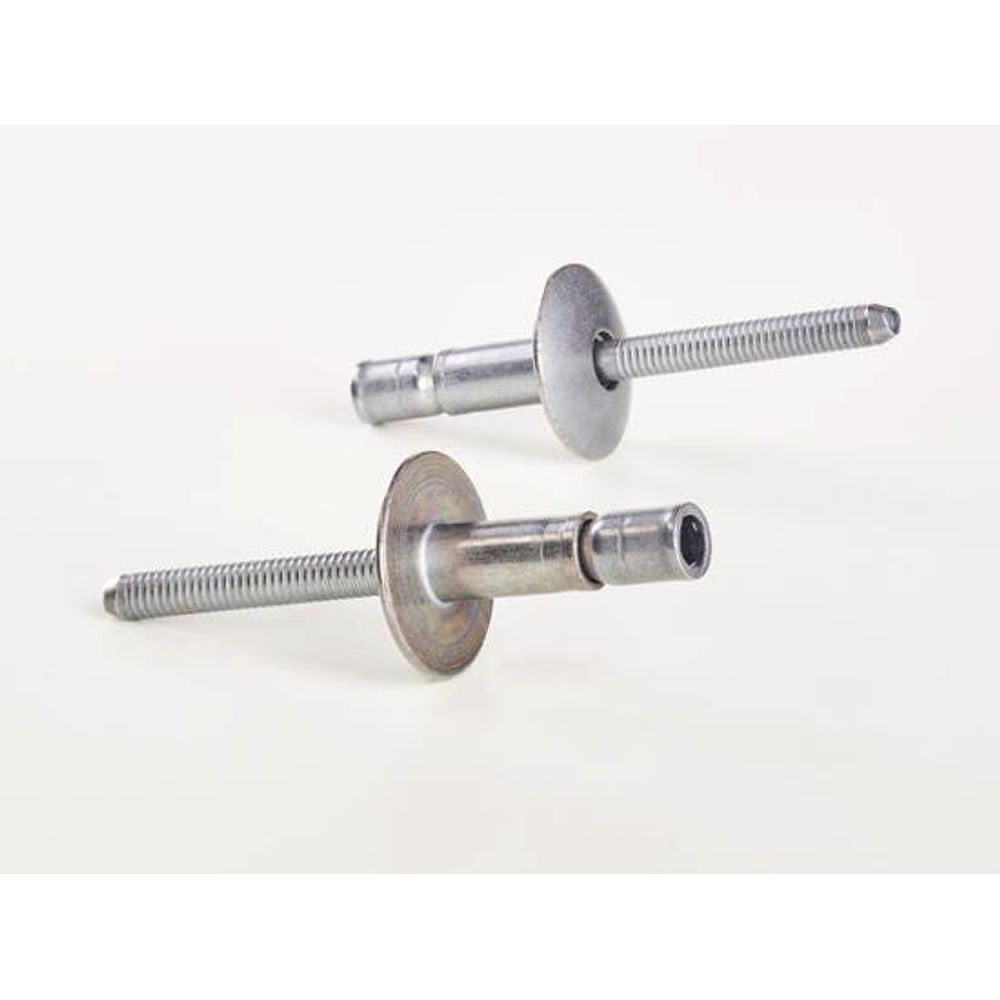

MONOBOLT® 4.8mm [3/16] (6) Steel / Steel Structural Rivet Nuts - SSPV-E06-07
Cód:
SSPV-E06-07
Opinião dos Consumidores:0

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

1.63-11.1 mm grip with 4.8mm [3/16] (6) Nominal Diameter based on Dome Head Style with Steel Body material and Steel Mandrel material

Monobolt

product name1.6256-11.0998 mm Steel/Steel Monobolt Structural Blind Rivets
Body MaterialSteel
Mandrel MaterialSteel
Finish-BodyZinc Plate
Finish- MandrelZinc Plate Zinc Trivalent
Head StyleDome
Min grip mm1.63
Max grip mm11.1
Min Grip Inches0.064
Max Grip Inches0.437
Min Hole Size mm4.93
Max Hole Size mm5.18
Min Holes Size Inches0.194
Max Hole Size Inches0.204
Max Body Length mm14.66
Max Body Length Inches0.577
Flange Diameter mm10.16
Flange Diameter inches0.4
Flange Thickness mm2.29
Flange Thickness Inches0.09
Shear lbf1300
Tensile lbf1000
BrandAvdel

default

JDE_Weight_UOMLB
JDE_Weight_Per_UOMM
JDE_HTS_Code8308206000
JDE_Country_of_OriginUS
JDE_Lead_Time_Days70
JDE_Weight9.6269
Features

    Fast Facts:

  • Structural breakstem rivet.
  • Stem mechanically locked into body.
  • Blind hole, one-sided installation capability.
  • Multi-grip capability.
  • High shear and tensile strength.
  • Good sheet take-up performance.
  • Visible lock for quick and easy inspection.
  • Excellent hole fill via rapidly expanded body.
  • Wide choice of installation tools.
  • One fastener can be used to replace several standard grip fasteners.
  • Reduced fastener inventory and simpler stock control.
  • Compensates for irregular, oversized, slotted or misaligned holes.
  • Can stop sheet movement in non-standard holes.
  • Large gap closing capability.
  • Provides very strong, vibration resistant joints.
  • No damage, electrical problems, or rattling due to loose stems.
  • Breakstem fasteners can be customized to meet unique assembly requirements.

    • Specifications:
  • Sizes: 4.8mm, 6.4mm and 10 mm (3/16", ¼" and 3/8")
  • Materials: Aluminum alloy, steel and stainless steel 304 grade / A2 and 316 grade / A4
  • Headforms: Protruding and countersunk
