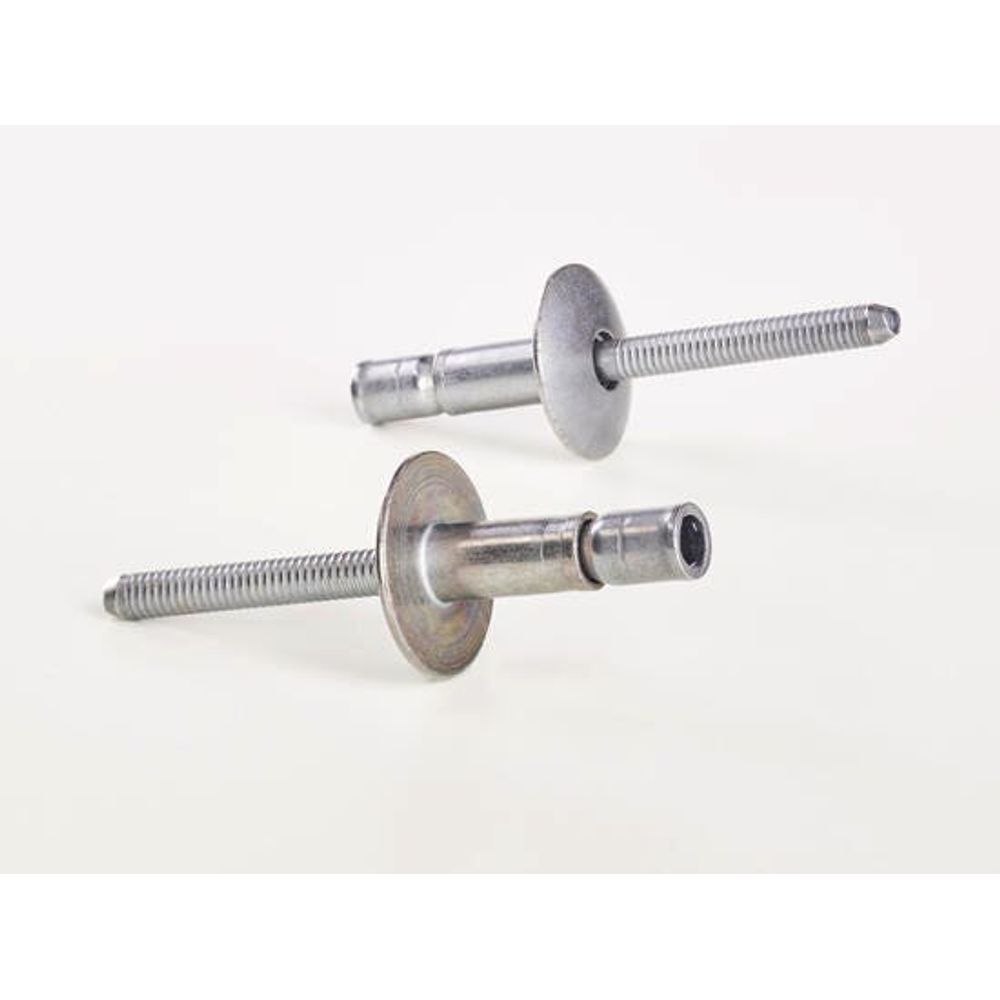

MONOBOLT® 6.4mm [1/4] (8) Aluminum / Aluminum Structural Rivet Nuts - BAPV-08-06
Cód:
BAPV-08-06
Opinião dos Consumidores:0

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

2.03-9.53 mm grip with 6.4mm [1/4] (8) Nominal Diameter based on Dome Head Style with Aluminum Body material and Aluminum Mandrel material

Monobolt

product name2.032-9.525 mm Aluminum/Aluminum Monobolt Structural Blind Rivets
Body MaterialAluminum
Mandrel MaterialAluminum
Finish-BodyNone
Finish- MandrelNone
Head StyleDome
Min grip mm2.03
Max grip mm9.53
Min Grip Inches0.08
Max Grip Inches0.375
Min Hole Size mm6.63
Max Hole Size mm7.01
Min Holes Size Inches0.261
Max Hole Size Inches0.276
Max Body Length mm14.12
Max Body Length Inches0.556
Flange Diameter mm13.46
Flange Diameter inches0.53
Flange Thickness mm2.97
Flange Thickness Inches0.117
Shear lbf1270
Tensile lbf830
BrandAvdel

default

JDE_Weight_UOMLB
JDE_Weight_Per_UOMM
JDE_HTS_Code8308206000
JDE_Country_of_OriginUS
JDE_Lead_Time_Days98
JDE_Weight7.8225
Features

    Fast Facts:

  • Structural breakstem rivet.
  • Stem mechanically locked into body.
  • Blind hole, one-sided installation capability.
  • Multi-grip capability.
  • High shear and tensile strength.
  • Good sheet take-up performance.
  • Visible lock for quick and easy inspection.
  • Excellent hole fill via rapidly expanded body.
  • Wide choice of installation tools.
  • One fastener can be used to replace several standard grip fasteners.
  • Reduced fastener inventory and simpler stock control.
  • Compensates for irregular, oversized, slotted or misaligned holes.
  • Can stop sheet movement in non-standard holes.
  • Large gap closing capability.
  • Provides very strong, vibration resistant joints.
  • No damage, electrical problems, or rattling due to loose stems.
  • Breakstem fasteners can be customized to meet unique assembly requirements.

    • Specifications:
  • Sizes: 4.8mm, 6.4mm and 10 mm (3/16", ¼" and 3/8")
  • Materials: Aluminum alloy, steel and stainless steel 304 grade / A2 and 316 grade / A4
  • Headforms: Protruding and countersunk
