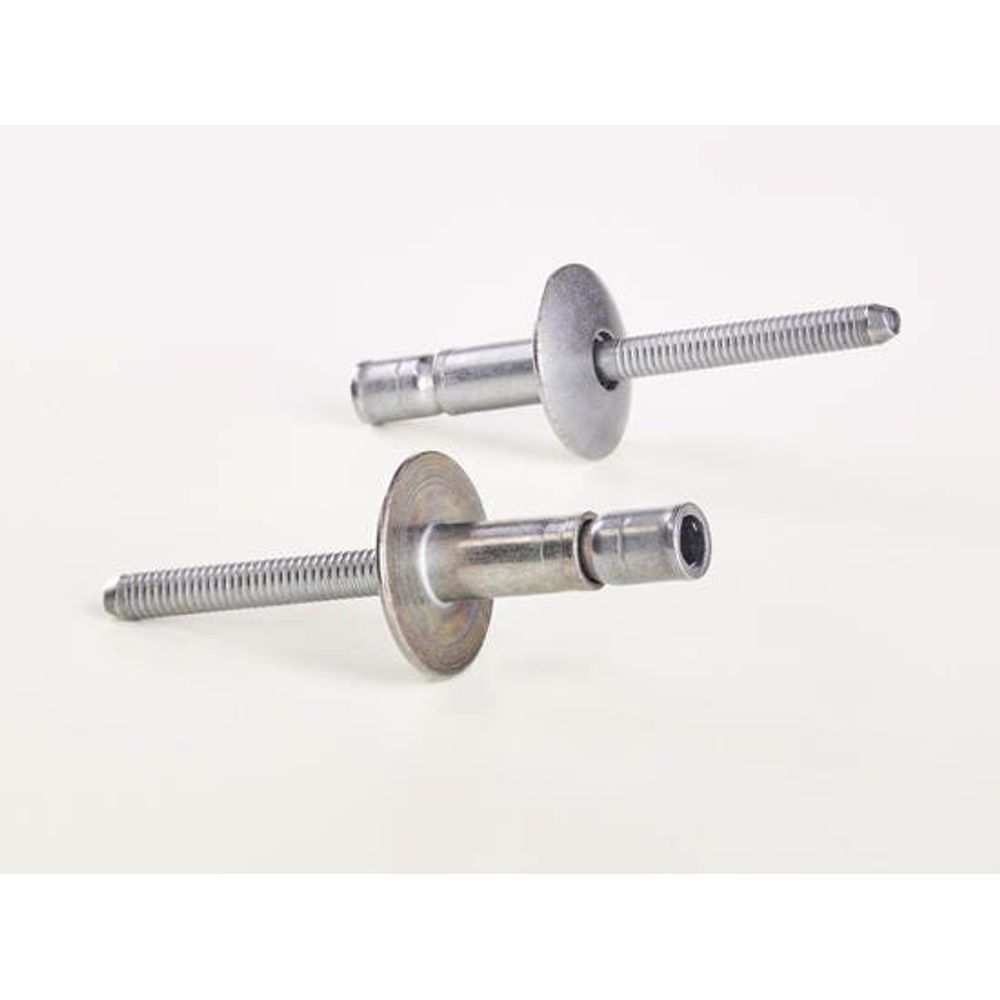

MONOBOLT® 4.8mm [3/16] (6) Steel / Steel Structural Rivet Nuts - 02761-00619
Cód:
02761-00619
Opinião dos Consumidores:0

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

3.18-12.22 mm grip with 4.8mm [3/16] (6) Nominal Diameter based on Countersunk Head Style with Steel Body material and Steel Mandrel material

Monobolt

product name3.175-12.2174 mm Steel/Steel Monobolt Structural Blind Rivets
Body MaterialSteel
Mandrel MaterialSteel
Finish-BodyZinc Plate
Finish- MandrelZinc Plate
Head StyleCountersunk
Min grip mm3.17
Max grip mm12.22
Min Grip Inches0.125
Max Grip Inches0.481
Min Hole Size mm4.9
Max Hole Size mm5.1
Min Holes Size Inches0.193
Max Hole Size Inches0.2007
Max Secondary Protrusion mm26.3
Max Secondary Protrusion inches1.032
Flange Diameter mm8.3
Flange Thickness mm2.2
Flange Thickness Inches0.084
Shear kN6.44
Tensile kN5.11
Shear lbf1450.0
Tensile lbf1150.0
BrandAvdel
Nominal Diameter4.8mm [3/16]
Max Secondary Protrusion Inches1.032

default

JDE_Weight_UOMLB
JDE_Weight_Per_UOMM
JDE_HTS_Code8308206000
JDE_Country_of_OriginGB
JDE_Lead_Time_Days252
JDE_Weight9.70034
Minimum Order Quantity2500
Features

    Fast Facts:

  • Structural breakstem rivet.
  • Stem mechanically locked into body.
  • Blind hole, one-sided installation capability.
  • Multi-grip capability.
  • High shear and tensile strength.
  • Good sheet take-up performance.
  • Visible lock for quick and easy inspection.
  • Excellent hole fill via rapidly expanded body.
  • Wide choice of installation tools.
  • One fastener can be used to replace several standard grip fasteners.
  • Reduced fastener inventory and simpler stock control.
  • Compensates for irregular, oversized, slotted or misaligned holes.
  • Can stop sheet movement in non-standard holes.
  • Large gap closing capability.
  • Provides very strong, vibration resistant joints.
  • No damage, electrical problems, or rattling due to loose stems.
  • Breakstem fasteners can be customized to meet unique assembly requirements.

    • Specifications:
  • Sizes: 4.8mm, 6.4mm and 10 mm (3/16", ¼" and 3/8")
  • Materials: Aluminum alloy, steel and stainless steel 304 grade / A2 and 316 grade / A4
  • Headforms: Protruding and countersunk
