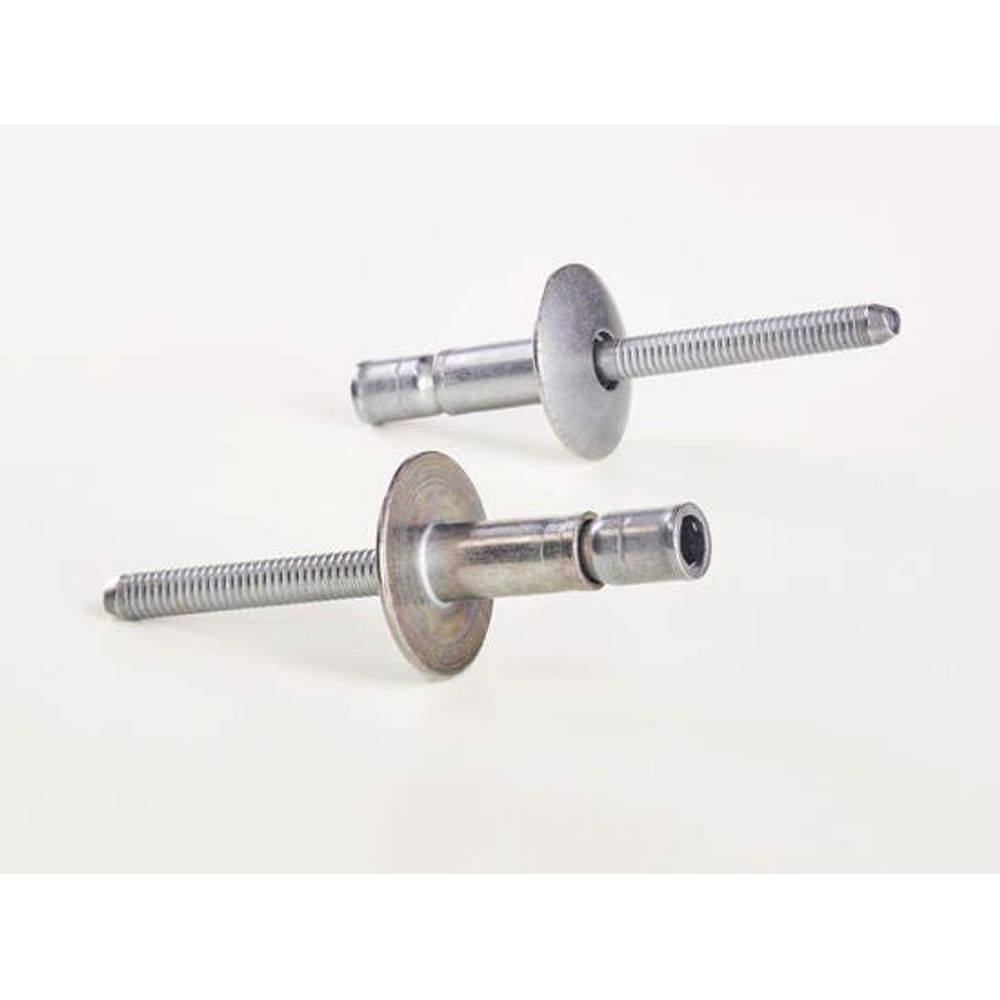

MONOBOLT® 4.8mm [3/16] (6) Aluminum / Aluminum Structural Rivet Nuts - 02774-00617
Cód:
02774-00617
Opinião dos Consumidores:0

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

1.63-11.1 mm grip with 4.8mm [3/16] (6) Nominal Diameter based on Dome Head Style with Aluminum Body material and Aluminum Mandrel material

Monobolt

product name1.6256-11.0998 mm Aluminum/Aluminum Monobolt Structural Blind Rivets
Body MaterialAluminium
Mandrel MaterialAluminium
Finish-BodyPolished
Finish- MandrelNatural
Head StyleDome
Min grip mm1.63
Max grip mm11.1
Min Grip Inches0.064
Max Grip Inches0.437
Min Hole Size mm4.9
Max Hole Size mm5.1
Min Holes Size Inches0.193
Max Hole Size Inches0.2
Max Body Length mm14.25
Max Body Length Inches0.556
Max Secondary Protrusion mm24.05
Max Secondary Protrusion inches0.946
Flange Diameter mm10.1
Flange Diameter inches0.395
Flange Thickness mm2.1
Flange Thickness Inches0.083
Shear kN3.0
Tensile kN2.22
Shear lbf675.0
Tensile lbf500.0
BrandAvdel
Nominal Diameter4.8mm [3/16]
Max Secondary Protrusion Inches0.946

default

JDE_Weight_UOMLB
JDE_Weight_Per_UOMM
JDE_HTS_Code8308206000
JDE_Country_of_OriginGB
JDE_Lead_Time_Days252
JDE_Weight3.5
Minimum Order Quantity2500
Features

    Fast Facts:

  • Structural breakstem rivet.
  • Stem mechanically locked into body.
  • Blind hole, one-sided installation capability.
  • Multi-grip capability.
  • High shear and tensile strength.
  • Good sheet take-up performance.
  • Visible lock for quick and easy inspection.
  • Excellent hole fill via rapidly expanded body.
  • Wide choice of installation tools.
  • One fastener can be used to replace several standard grip fasteners.
  • Reduced fastener inventory and simpler stock control.
  • Compensates for irregular, oversized, slotted or misaligned holes.
  • Can stop sheet movement in non-standard holes.
  • Large gap closing capability.
  • Provides very strong, vibration resistant joints.
  • No damage, electrical problems, or rattling due to loose stems.
  • Breakstem fasteners can be customized to meet unique assembly requirements.

    • Specifications:
  • Sizes: 4.8mm, 6.4mm and 10 mm (3/16", ¼" and 3/8")
  • Materials: Aluminum alloy, steel and stainless steel 304 grade / A2 and 316 grade / A4
  • Headforms: Protruding and countersunk
