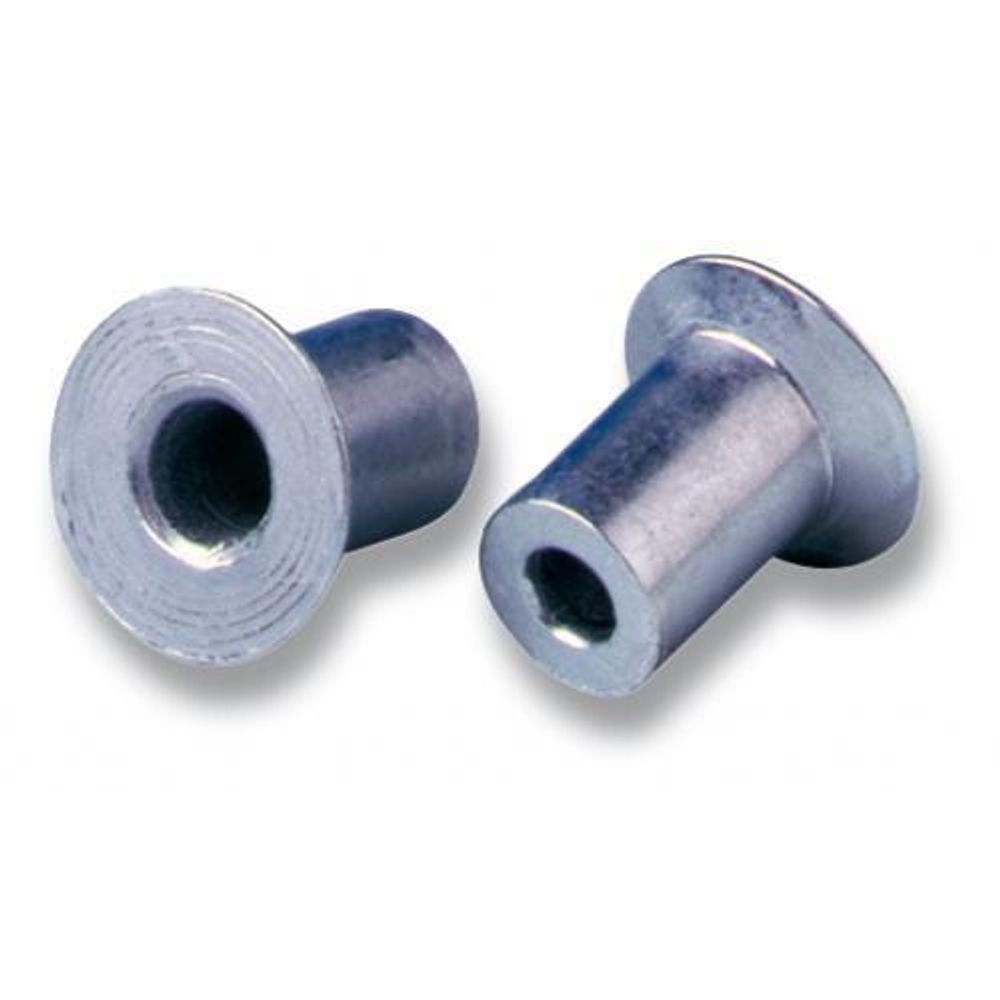

Chobert 4 mm Aluminium Speed Fastener - 01125-00516
Cód:
01125-00516
Opinião dos Consumidores:0

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

9.52-11.1 mm grip with 4 Nominal Diameter with 4.09-4.16 mm Hole Size and Aluminium Material

Chobert

BrandAvdel
Fasteners per Pod21
Tensile lbfNo value
Shear kN1
Flange Thickness Inches0.05826771653543307
Flange Thickness mm1.48
Flange Diameter inches0.25708661417322837
Flange Diameter mm6.53
Max Secondary Protrusion inches0.15984251968503937
Max Secondary Protrusion mm4.06
Body Length Inches0.5
Min Hole Size mm4.09
Max Grip Inches0.43700787401574803
Min Grip Inches0.37
Max grip mm11.1
Min grip mm9.52
Finishnatural
MaterialAluminium
nominal Diameter4.0
Shear lbf224.81
Tensile kNNo value
Body Length mm12.7
Max Hole Size Inches0.16377952755905514
Min Holes Size Inches0.1610236220472441
Max Hole Size mm4.16

default

JDE_Weight_UOMLB
JDE_Weight_Per_UOMM
JDE_HTS_Code7616103000
JDE_Country_of_OriginGB
JDE_Lead_Time_Days252
JDE_Weight4.12705
Minimum Order Quantity100000
Features

    Fast Facts:

  • Internally tapered bore ensures consistent light clamp to reduce potential damage to soft or brittle materials.
  • The light clamp makes it ideal for use as a pivot pin or hose tail.
  • Expands radially during installation to ensure maximum hole fill.
  • Lower in-place costs than welding or nail rivets.
  • Placed using a unique repetition mandrel system for high speed assembly.
  • Can be bowl fed for larger volume applications using automated equipment.
  • Available as a customized design to meet your unique assembly requirements.
  • Popular assembly applications include automotive, electronic component, sheet metal, electrical engineering, injection molded components, switchgear, domestic appliance, and light fabrication.

    • Specifications:
  • Sizes: 2.4mm to 6.4mm (3/32" to ¼")
  • Materials: Aluminum alloy, steel, brass, nickel plated brass, and tin plated brass*
  • Headform: Dome/mushroom and countersunk
