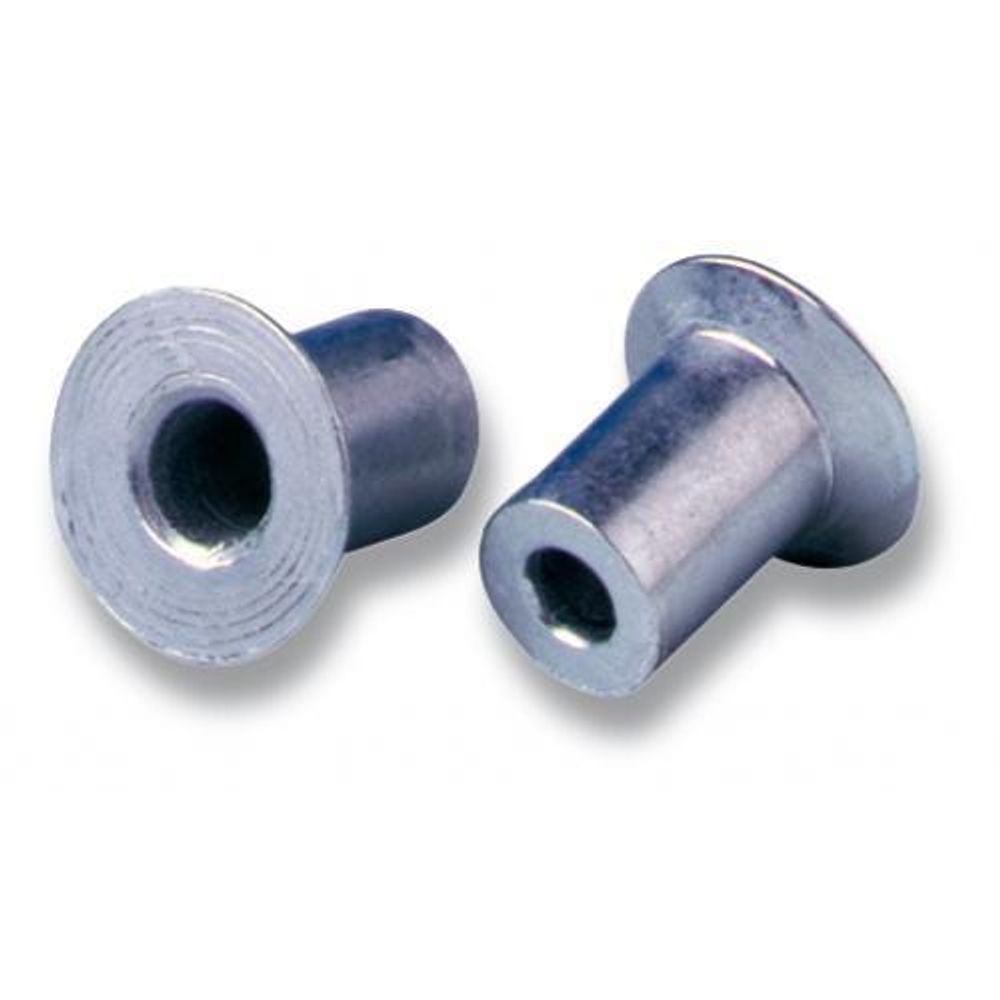

Chobert 3.2 mm Steel Speed Fastener - 01121-00408
Cód:
01121-00408
Opinião dos Consumidores:0

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

3.18-4.75 mm grip with 3.2 Nominal Diameter with 3.26-3.34 mm Hole Size and Steel Material

Chobert

BrandAvdel
nominal Diameter3.2
MaterialSteel
FinishZinc plated clear passivated
Min grip mm3.18
Max grip mm4.75
Min Grip Inches0.13
Max Grip Inches0.18700787401574803
Min Hole Size mm3.26
Max Hole Size mm3.34
Min Holes Size Inches0.1283464566929134
Fasteners per Pod46
Tensile lbfNo value
Shear lbf319.23019999999997
Tensile kNNo value
Shear kN1.42
Flange Thickness Inches0.044094488188976384
Flange Thickness mm1.12
Flange Diameter inches0.21535433070866142
Flange Diameter mm5.47
Max Secondary Protrusion inches0.1279527559055118
Max Secondary Protrusion mm3.25
Body Length Inches0.2519685039370079
Body Length mm6.4
Max Hole Size Inches0.131496062992126

default

JDE_Lead_Time_Days252
JDE_Weight11.37585
JDE_Country_of_OriginGB
JDE_HTS_Code7318230000
JDE_Weight_Per_UOMM
JDE_Weight_UOMLB
Minimum Order Quantity105000
Features

    Fast Facts:

  • Internally tapered bore ensures consistent light clamp to reduce potential damage to soft or brittle materials.
  • The light clamp makes it ideal for use as a pivot pin or hose tail.
  • Expands radially during installation to ensure maximum hole fill.
  • Lower in-place costs than welding or nail rivets.
  • Placed using a unique repetition mandrel system for high speed assembly.
  • Can be bowl fed for larger volume applications using automated equipment.
  • Available as a customized design to meet your unique assembly requirements.
  • Popular assembly applications include automotive, electronic component, sheet metal, electrical engineering, injection molded components, switchgear, domestic appliance, and light fabrication.

    • Specifications:
  • Sizes: 2.4mm to 6.4mm (3/32" to ¼")
  • Materials: Aluminum alloy, steel, brass, nickel plated brass, and tin plated brass*
  • Headform: Dome/mushroom and countersunk
