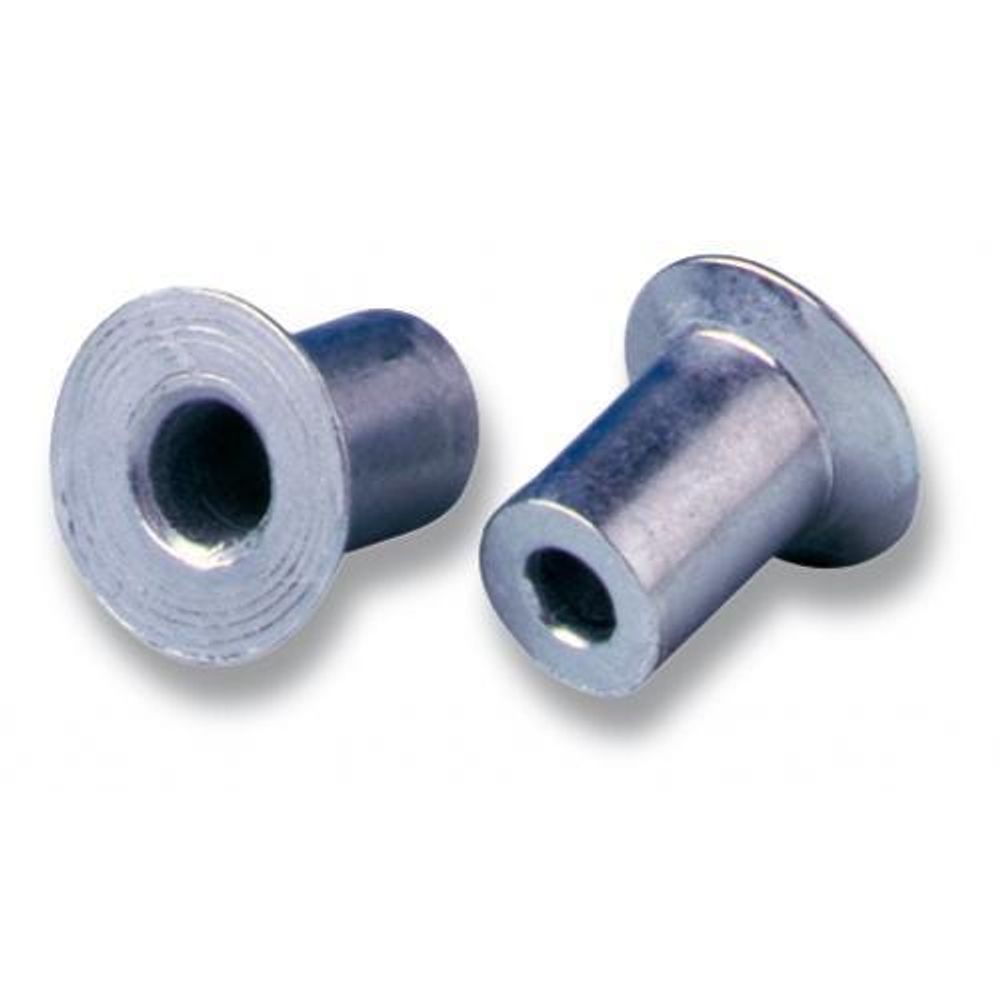

Chobert 2.4 mm Aluminium 3,5%Mg Speed Fastener - 01132-00306
Cód:
01132-00306
Opinião dos Consumidores:0

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

1.57-3.17 mm grip with 2.4 Nominal Diameter with 2.49-2.55 mm Hole Size and Aluminium 3,5%Mg Material

Chobert

BrandAvdel
nominal Diameter2.4
MaterialAluminium 3,5%Mg
Finishnatural
Min grip mm1.57
Max grip mm3.17
Min Grip Inches0.06
Max Grip Inches0.12480314960629922
Min Hole Size mm2.49
Max Hole Size mm2.55
Min Holes Size Inches0.09803149606299214
Max Hole Size Inches0.10039370078740158
Body Length mm4.88
Body Length Inches0.1921259842519685
Max Secondary Protrusion mm2.46
Max Secondary Protrusion inches0.09685039370078741
Flange Diameter mm4.16
Flange Diameter inches0.16377952755905514
Flange Thickness mm0.89
Flange Thickness Inches0.03503937007874016
Shear kN0.5
Tensile kNNo value
Shear lbf112.405
Tensile lbfNo value
Fasteners per Pod61

default

JDE_Weight_UOMLB
JDE_Weight_Per_UOMM
JDE_HTS_Code7616103000
JDE_Country_of_OriginGB
JDE_Lead_Time_Days252
JDE_Weight1.98416
Minimum Order Quantity20000
Features

    Fast Facts:

  • Internally tapered bore ensures consistent light clamp to reduce potential damage to soft or brittle materials.
  • The light clamp makes it ideal for use as a pivot pin or hose tail.
  • Expands radially during installation to ensure maximum hole fill.
  • Lower in-place costs than welding or nail rivets.
  • Placed using a unique repetition mandrel system for high speed assembly.
  • Can be bowl fed for larger volume applications using automated equipment.
  • Available as a customized design to meet your unique assembly requirements.
  • Popular assembly applications include automotive, electronic component, sheet metal, electrical engineering, injection molded components, switchgear, domestic appliance, and light fabrication.

    • Specifications:
  • Sizes: 2.4mm to 6.4mm (3/32" to ¼")
  • Materials: Aluminum alloy, steel, brass, nickel plated brass, and tin plated brass*
  • Headform: Dome/mushroom and countersunk
