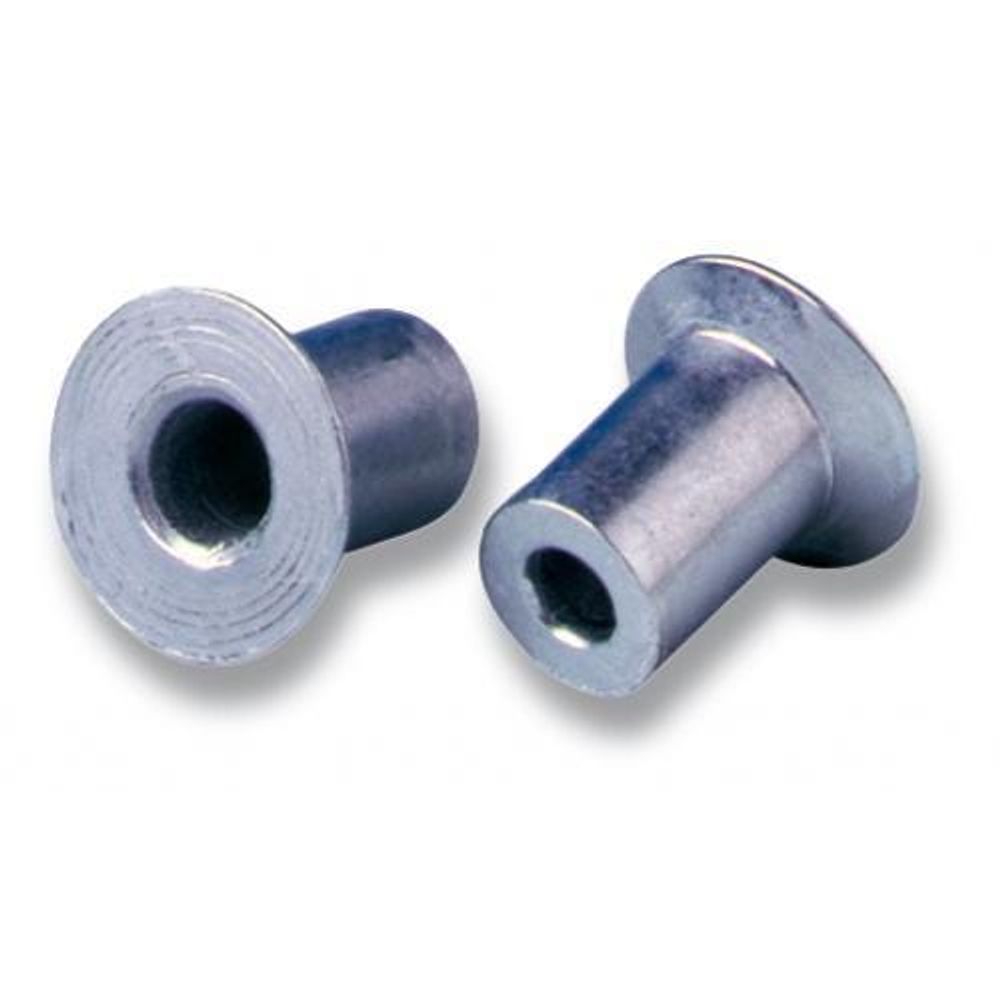

Chobert 4 mm Steel Speed Fastener - 01121-00510
Cód:
01121-00510
Opinião dos Consumidores:0

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

4.75-6.35 mm grip with 4 Nominal Diameter with 4.09-4.16 mm Hole Size and Steel Material

Chobert

BrandAvdel
nominal Diameter4.0
MaterialSteel
FinishZinc plated clear passivated
Max grip mm6.35
Min Grip Inches0.19
Max Grip Inches0.25
Min Hole Size mm4.09
Max Hole Size mm4.16
Min Holes Size Inches0.1610236220472441
Max Hole Size Inches0.16377952755905514
Body Length mm7.9
Body Length Inches0.31102362204724415
Max Secondary Protrusion mm4.04
Max Secondary Protrusion inches0.15905511811023623
Flange Diameter mm6.48
Flange Diameter inches0.2551181102362205
Flange Thickness mm1.45
Flange Thickness Inches0.05708661417322835
Shear kN2.44
Tensile kNNo value
Shear lbf548.5364
Tensile lbfNo value
Min grip mm4.75
Fasteners per Pod37

default

JDE_Weight_UOMLB
JDE_Weight_Per_UOMM
JDE_HTS_Code7318230000
JDE_Country_of_OriginGB
JDE_Lead_Time_Days252
JDE_Weight1.79
Minimum Order Quantity10000
Features

    Fast Facts:

  • Internally tapered bore ensures consistent light clamp to reduce potential damage to soft or brittle materials.
  • The light clamp makes it ideal for use as a pivot pin or hose tail.
  • Expands radially during installation to ensure maximum hole fill.
  • Lower in-place costs than welding or nail rivets.
  • Placed using a unique repetition mandrel system for high speed assembly.
  • Can be bowl fed for larger volume applications using automated equipment.
  • Available as a customized design to meet your unique assembly requirements.
  • Popular assembly applications include automotive, electronic component, sheet metal, electrical engineering, injection molded components, switchgear, domestic appliance, and light fabrication.

    • Specifications:
  • Sizes: 2.4mm to 6.4mm (3/32" to ¼")
  • Materials: Aluminum alloy, steel, brass, nickel plated brass, and tin plated brass*
  • Headform: Dome/mushroom and countersunk
