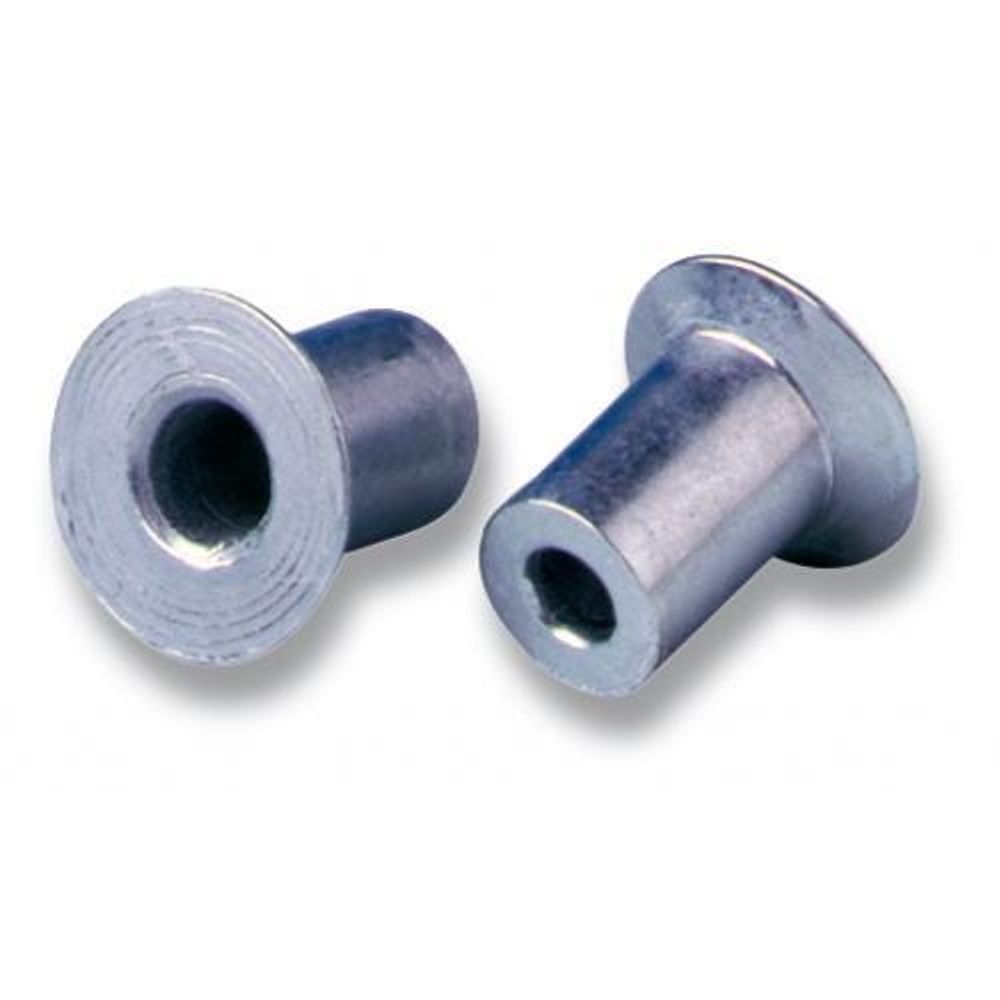

Chobert 4.8 mm Aluminium Speed Fastener - 01125-00611
Cód:
01125-00611
Opinião dos Consumidores:0

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

4.75-6.35 mm grip with 4.8 Nominal Diameter with 4.85-4.93 mm Hole Size and Aluminium Material

Chobert

BrandAvdel
nominal Diameter4.8
MaterialAluminium
Finishnatural
Min grip mm4.75
Max grip mm6.35
Min Grip Inches0.19
Max Grip Inches0.25
Min Hole Size mm4.85
Max Hole Size mm4.93
Min Holes Size Inches0.19094488188976377
Max Hole Size Inches0.19409448818897637
Body Length mm8.74
Body Length Inches0.3440944881889764
Max Secondary Protrusion mm4.82
Max Secondary Protrusion inches0.18976377952755907
Flange Diameter mm8.92
Flange Diameter inches0.35118110236220473
Flange Thickness mm1.81
Flange Thickness Inches0.07125984251968505
Shear kN1.5
Tensile kNNo value
Shear lbf337.21500000000003
Tensile lbfNo value
Fasteners per Pod28

default

JDE_Weight_UOMLB
JDE_Weight_Per_UOMM
JDE_HTS_Code7616103000
JDE_Country_of_OriginGB
JDE_Lead_Time_Days252
JDE_Weight1.1
Minimum Order Quantity98000
Features

    Fast Facts:

  • Internally tapered bore ensures consistent light clamp to reduce potential damage to soft or brittle materials.
  • The light clamp makes it ideal for use as a pivot pin or hose tail.
  • Expands radially during installation to ensure maximum hole fill.
  • Lower in-place costs than welding or nail rivets.
  • Placed using a unique repetition mandrel system for high speed assembly.
  • Can be bowl fed for larger volume applications using automated equipment.
  • Available as a customized design to meet your unique assembly requirements.
  • Popular assembly applications include automotive, electronic component, sheet metal, electrical engineering, injection molded components, switchgear, domestic appliance, and light fabrication.

    • Specifications:
  • Sizes: 2.4mm to 6.4mm (3/32" to ¼")
  • Materials: Aluminum alloy, steel, brass, nickel plated brass, and tin plated brass*
  • Headform: Dome/mushroom and countersunk
