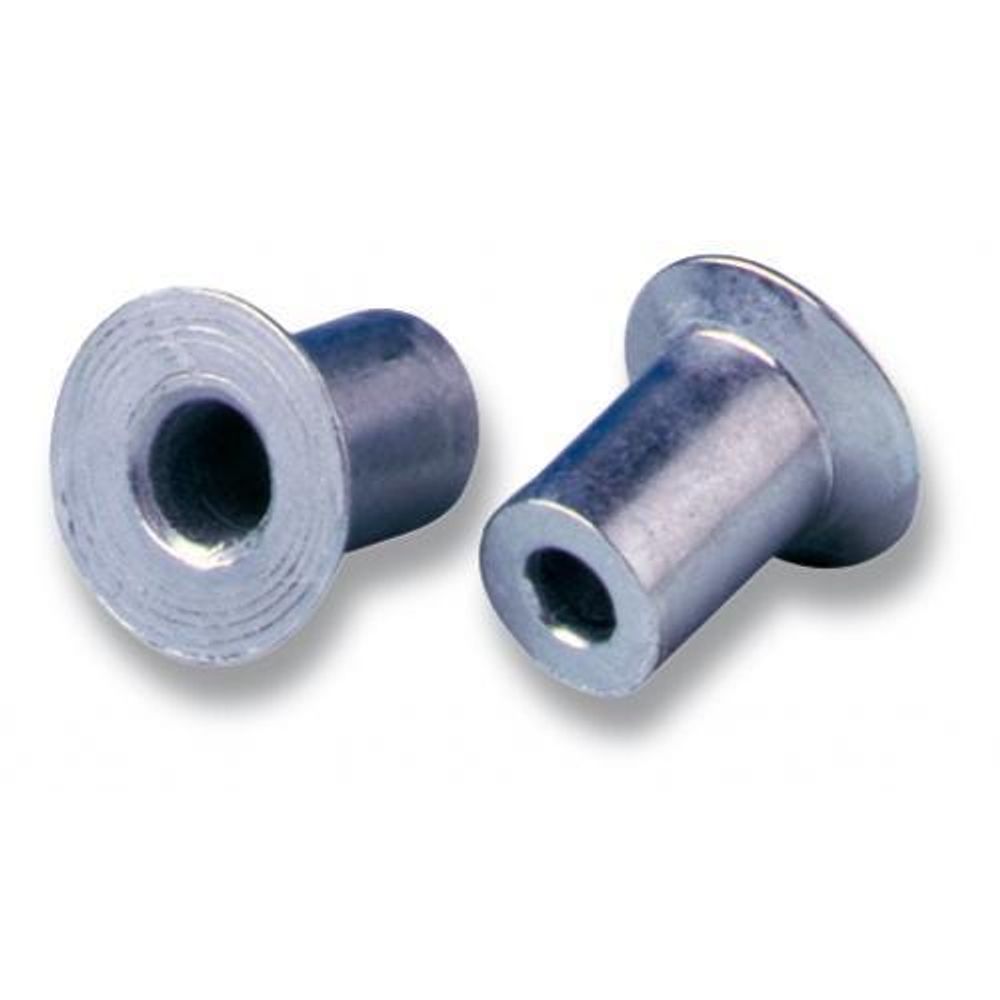

Chobert 3.2 mm Aluminium Speed Fastener - 01125-00408
Cód:
01125-00408
Opinião dos Consumidores:0

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

3.17-4.75 mm grip with 3.2 Nominal Diameter with 3.28-3.34 mm Hole Size and Aluminium Material

Chobert

BrandAvdel
nominal Diameter3.2
MaterialAluminium
Finishnatural
Fasteners per Pod39
Tensile lbfNo value
Shear lbf134.886
Tensile kNNo value
Shear kN0.6
Flange Thickness Inches0.0452755905511811
Flange Thickness mm1.15
Flange Diameter inches0.2173228346456693
Flange Diameter mm5.52
Max Secondary Protrusion inches0.12874015748031498
Max Secondary Protrusion mm3.27
Body Length Inches0.25
Body Length mm6.35
Max Hole Size Inches0.131496062992126
Min Holes Size Inches0.12913385826771653
Max Hole Size mm3.34
Min Hole Size mm3.28
Max Grip Inches0.18700787401574803
Min Grip Inches0.12
Max grip mm4.75
Min grip mm3.17

default

JDE_Weight_UOMLB
JDE_Weight_Per_UOMM
JDE_HTS_Code7616103000
JDE_Country_of_OriginGB
JDE_Lead_Time_Days182
JDE_Weight4.33208
Minimum Order Quantity15000
Features

    Fast Facts:

  • Internally tapered bore ensures consistent light clamp to reduce potential damage to soft or brittle materials.
  • The light clamp makes it ideal for use as a pivot pin or hose tail.
  • Expands radially during installation to ensure maximum hole fill.
  • Lower in-place costs than welding or nail rivets.
  • Placed using a unique repetition mandrel system for high speed assembly.
  • Can be bowl fed for larger volume applications using automated equipment.
  • Available as a customized design to meet your unique assembly requirements.
  • Popular assembly applications include automotive, electronic component, sheet metal, electrical engineering, injection molded components, switchgear, domestic appliance, and light fabrication.

    • Specifications:
  • Sizes: 2.4mm to 6.4mm (3/32" to ¼")
  • Materials: Aluminum alloy, steel, brass, nickel plated brass, and tin plated brass*
  • Headform: Dome/mushroom and countersunk
