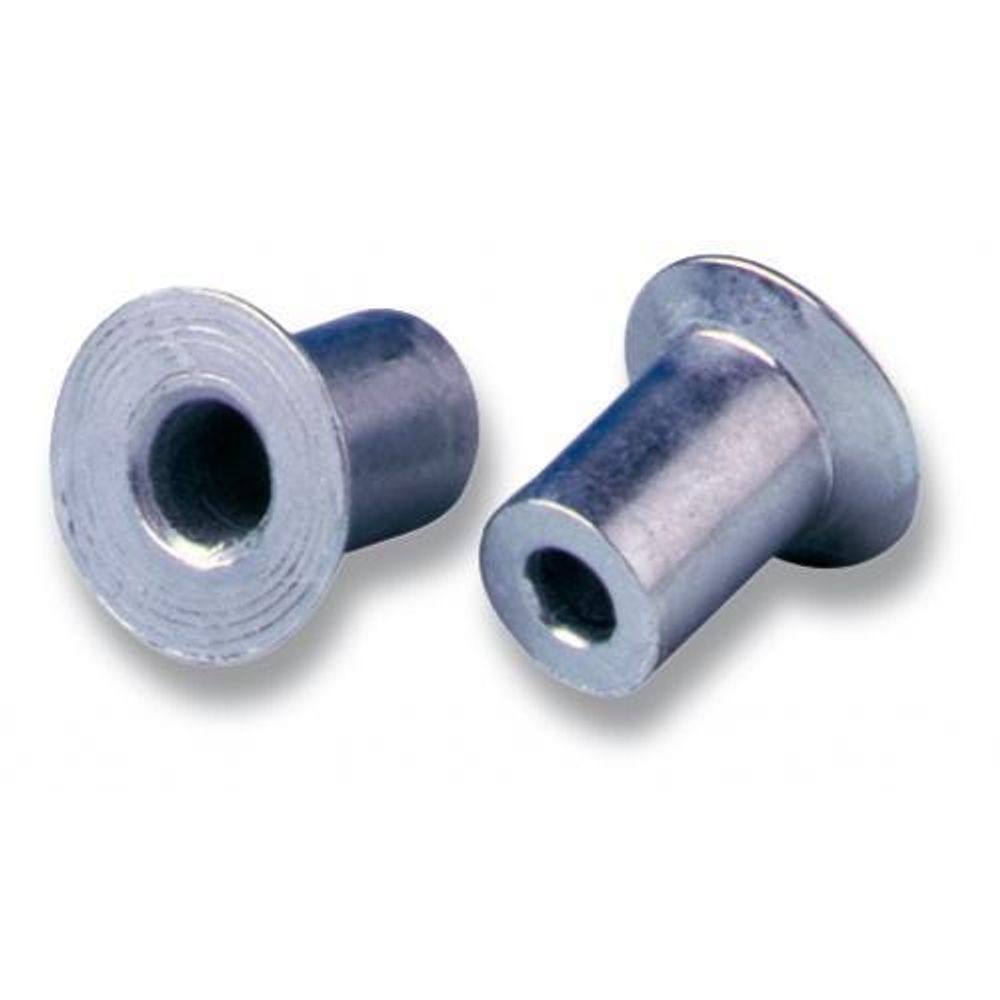

Chobert 2.4 mm Aluminium 3,5%Mg Speed Fastener - 01131-00310
Cód:
01131-00310
Opinião dos Consumidores:0

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

4.75-6.35 mm grip with 2.4 Nominal Diameter with 2.49-2.55 mm Hole Size and Aluminium 3,5%Mg Material

Chobert

BrandAvdel
Fasteners per Pod33
Tensile lbfNo value
Shear lbf112.405
Tensile kNNo value
Shear kN0.5
Flange Thickness Inches0.03700787401574803
Flange Thickness mm0.94
Flange Diameter inches0.16299212598425197
Flange Diameter mm4.14
Max Secondary Protrusion inches0.09763779527559055
Max Secondary Protrusion mm2.48
Body Length Inches0.31181102362204727
Body Length mm7.92
Max Hole Size Inches0.10039370078740158
Min Holes Size Inches0.09803149606299214
Max Hole Size mm2.55
Min Hole Size mm2.49
Max Grip Inches0.25
Min Grip Inches0.19
Max grip mm6.35
Min grip mm4.75
Finishnatural
MaterialAluminium 3,5%Mg
nominal Diameter2.4

default

JDE_Weight_UOMLB
JDE_Weight_Per_UOMM
JDE_HTS_Code7616103000
JDE_Country_of_OriginGB
JDE_Lead_Time_Days252
JDE_Weight0.244713
Minimum Order Quantity15000
Features

    Fast Facts:

  • Internally tapered bore ensures consistent light clamp to reduce potential damage to soft or brittle materials.
  • The light clamp makes it ideal for use as a pivot pin or hose tail.
  • Expands radially during installation to ensure maximum hole fill.
  • Lower in-place costs than welding or nail rivets.
  • Placed using a unique repetition mandrel system for high speed assembly.
  • Can be bowl fed for larger volume applications using automated equipment.
  • Available as a customized design to meet your unique assembly requirements.
  • Popular assembly applications include automotive, electronic component, sheet metal, electrical engineering, injection molded components, switchgear, domestic appliance, and light fabrication.

    • Specifications:
  • Sizes: 2.4mm to 6.4mm (3/32" to ¼")
  • Materials: Aluminum alloy, steel, brass, nickel plated brass, and tin plated brass*
  • Headform: Dome/mushroom and countersunk
