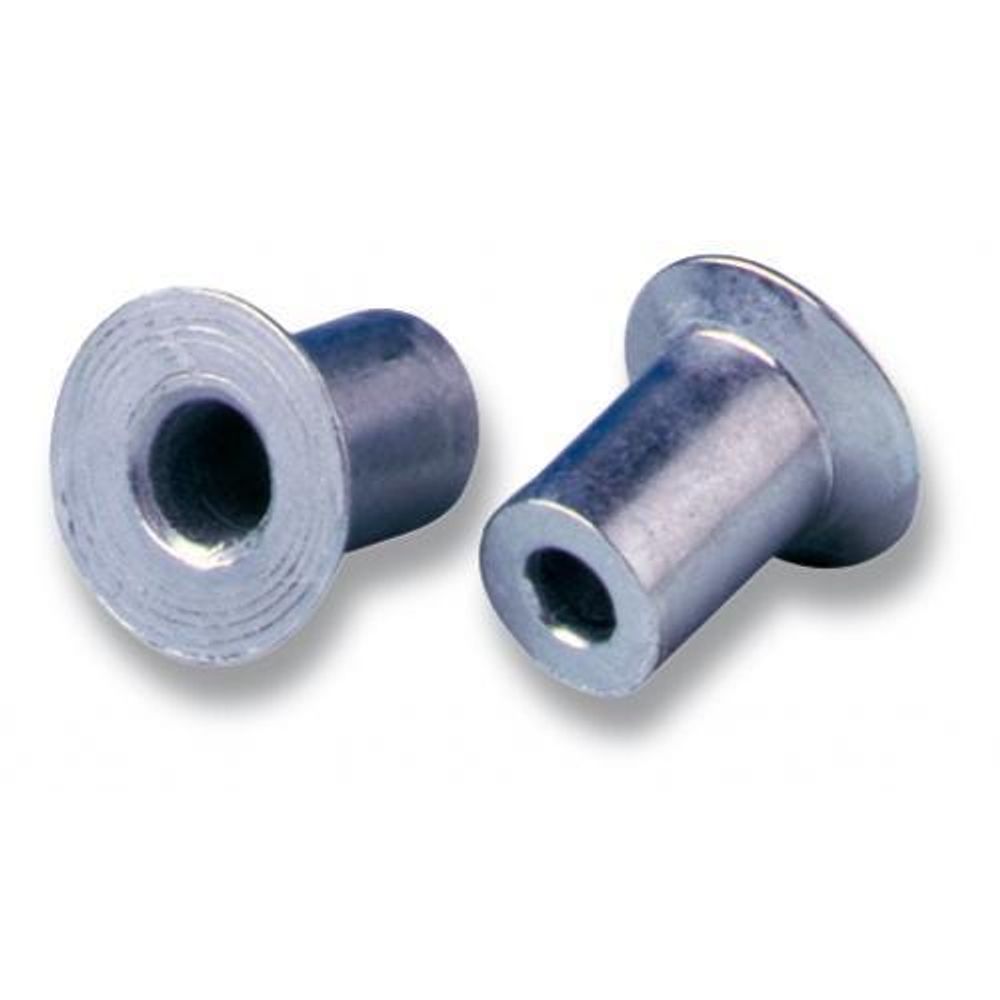

Chobert 6.4 mm Steel Speed Fastener - 01121-00809
Cód:
01121-00809
Opinião dos Consumidores:0

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

3.18-4.75 mm grip with 6.4 Nominal Diameter with 6.36-6.42 mm Hole Size and Steel Material

Chobert

BrandAvdel
nominal Diameter6.4
MaterialSteel
FinishZinc plated clear passivated
Min grip mm3.18
Max grip mm4.75
Min Grip Inches0.13
Max Grip Inches0.18700787401574803
Min Hole Size mm6.36
Max Hole Size mm6.42
Min Holes Size Inches0.2503937007874016
Fasteners per Pod25
Tensile lbfNo value
Shear lbf989.1640000000001
Tensile kNNo value
Shear kN4.4
Flange Thickness Inches0.08307086614173229
Flange Thickness mm2.11
Flange Diameter inches0.4110236220472441
Flange Diameter mm10.44
Max Secondary Protrusion inches0.25
Max Secondary Protrusion mm6.35
Body Length Inches0.28346456692913385
Body Length mm7.2
Max Hole Size Inches0.25275590551181104

default

JDE_Lead_Time_Days252
JDE_Weight22.77816
JDE_Country_of_OriginGB
JDE_HTS_Code7318230000
JDE_Weight_Per_UOMM
JDE_Weight_UOMLB
Minimum Order Quantity6000
Features

    Fast Facts:

  • Internally tapered bore ensures consistent light clamp to reduce potential damage to soft or brittle materials.
  • The light clamp makes it ideal for use as a pivot pin or hose tail.
  • Expands radially during installation to ensure maximum hole fill.
  • Lower in-place costs than welding or nail rivets.
  • Placed using a unique repetition mandrel system for high speed assembly.
  • Can be bowl fed for larger volume applications using automated equipment.
  • Available as a customized design to meet your unique assembly requirements.
  • Popular assembly applications include automotive, electronic component, sheet metal, electrical engineering, injection molded components, switchgear, domestic appliance, and light fabrication.

    • Specifications:
  • Sizes: 2.4mm to 6.4mm (3/32" to ¼")
  • Materials: Aluminum alloy, steel, brass, nickel plated brass, and tin plated brass*
  • Headform: Dome/mushroom and countersunk
