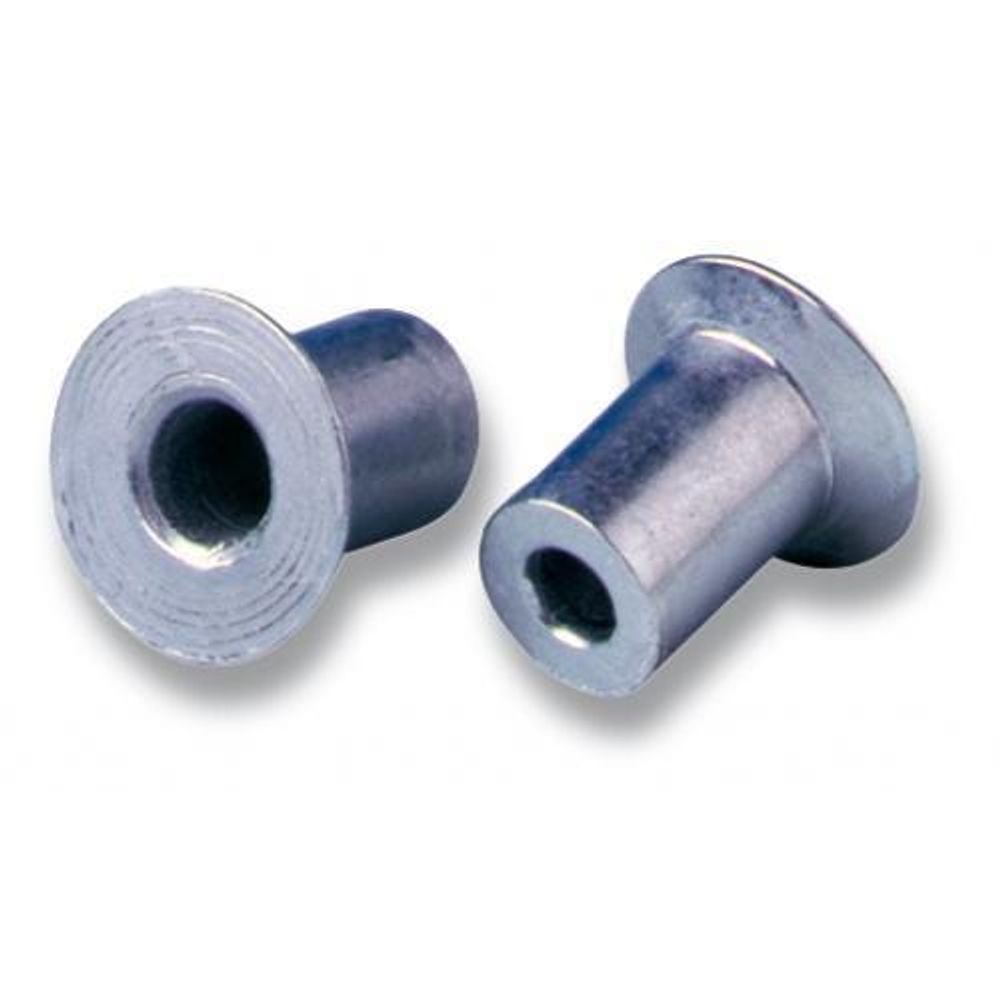

Chobert 4.8 mm Steel Speed Fastener - 01121-00609
Cód:
01121-00609
Opinião dos Consumidores:0

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

3.18-4.75 mm grip with 4.8 Nominal Diameter with 4.86-4.93 mm Hole Size and Steel Material

Chobert

BrandAvdel
nominal Diameter4.8
MaterialSteel
FinishZinc plated clear passivated
Min grip mm3.18
Max grip mm4.75
Min Grip Inches0.13
Max Grip Inches0.18700787401574803
Min Hole Size mm4.86
Max Hole Size mm4.93
Min Holes Size Inches0.1913385826771654
Max Hole Size Inches0.19409448818897637
Body Length mm7.2
Body Length Inches0.28346456692913385
Max Secondary Protrusion mm4.85
Max Secondary Protrusion inches0.19094488188976377
Flange Diameter mm8.87
Flange Diameter inches0.34921259842519686
Tensile kNNo value
Shear lbf719.392
Tensile lbfNo value
Fasteners per Pod33
Shear kN3.2
Flange Thickness Inches0.07007874015748032
Flange Thickness mm1.78

default

JDE_Weight_UOMLB
JDE_Weight_Per_UOMM
JDE_HTS_Code7318230000
JDE_Country_of_OriginGB
JDE_Lead_Time_Days252
JDE_Weight20.03561
Minimum Order Quantity96000
Features

    Fast Facts:

  • Internally tapered bore ensures consistent light clamp to reduce potential damage to soft or brittle materials.
  • The light clamp makes it ideal for use as a pivot pin or hose tail.
  • Expands radially during installation to ensure maximum hole fill.
  • Lower in-place costs than welding or nail rivets.
  • Placed using a unique repetition mandrel system for high speed assembly.
  • Can be bowl fed for larger volume applications using automated equipment.
  • Available as a customized design to meet your unique assembly requirements.
  • Popular assembly applications include automotive, electronic component, sheet metal, electrical engineering, injection molded components, switchgear, domestic appliance, and light fabrication.

    • Specifications:
  • Sizes: 2.4mm to 6.4mm (3/32" to ¼")
  • Materials: Aluminum alloy, steel, brass, nickel plated brass, and tin plated brass*
  • Headform: Dome/mushroom and countersunk
