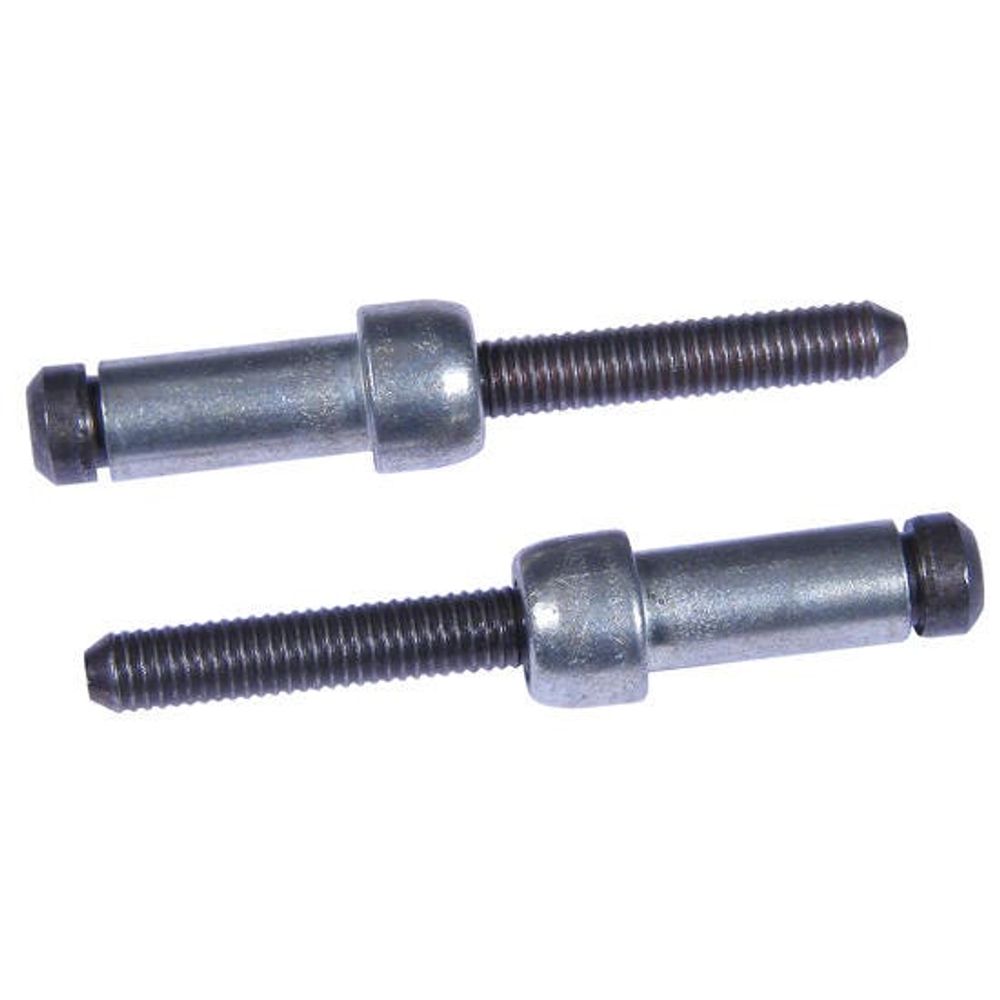

AVDEL Carbon steel Lockbolts with 8mm [5/16] nominal diameter with 7.95 - 11.13 mm grip range - 21021-01006
Cód:
21021-01006
Opinião dos Consumidores:0

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

7.95-11.13 mm grip with 8mm [5/16] Nominal Diameter based on Collar head style and Carbon steel Pin Material

Avbolt

Head Thickness Inches0.34
Head Thickness mm8.64
Head Diameter inches0.488
Head Diameter mm12.4
Body Length Inches1.042
Body Length mm26.47
Max Hole Size Inches0.368
Min Holes Size Inches0.348
Max Hole Size mm9.35
Min Hole Size mm8.84
Max Grip Inches0.438
Min Grip Inches0.313
Max grip mm11.13
Min grip mm7.95
Head StyleCollar
Pin MaterialCarbon steel
nominal Diameter8mm [5/16]

default

JDE_HTS_Code7318290000
JDE_Country_of_OriginGB
JDE_Lead_Time_Days252
JDE_Weight53
JDE_Weight_Per_UOMM
JDE_Weight_UOMLB
Minimum Order Quantity500
Features

    Fast Facts:

  • Use on blind-sided application.
  • High tensile and shear strength.
  • Speed of installation.
  • Vibration resistance.
  • High grip capability.
  • Tamper resistant.
  • Ideal for areas with restricted access.
  • Used in assembly applications such as ship building, railway, automotive assembly including car seats, other ground transportation, mining equipment, and construction.

    • Specifications:
  • Sizes: 4.8 mm, 6.4 mm, 8.0 mm, 10 mm, 12.7 mm and 1 6mm (3/16", 1/4'', 1/2", 5/16", 3/8" and 5/8")
  • Materials Stem: Alloy steel, black oxide
  • Materials Sleeve and collar: Carbon steel, zinc plated + clear passivated
  • Collar: Flanged (only on 3/8'', 1/2" & 5/8'' (three piece) diameters)
