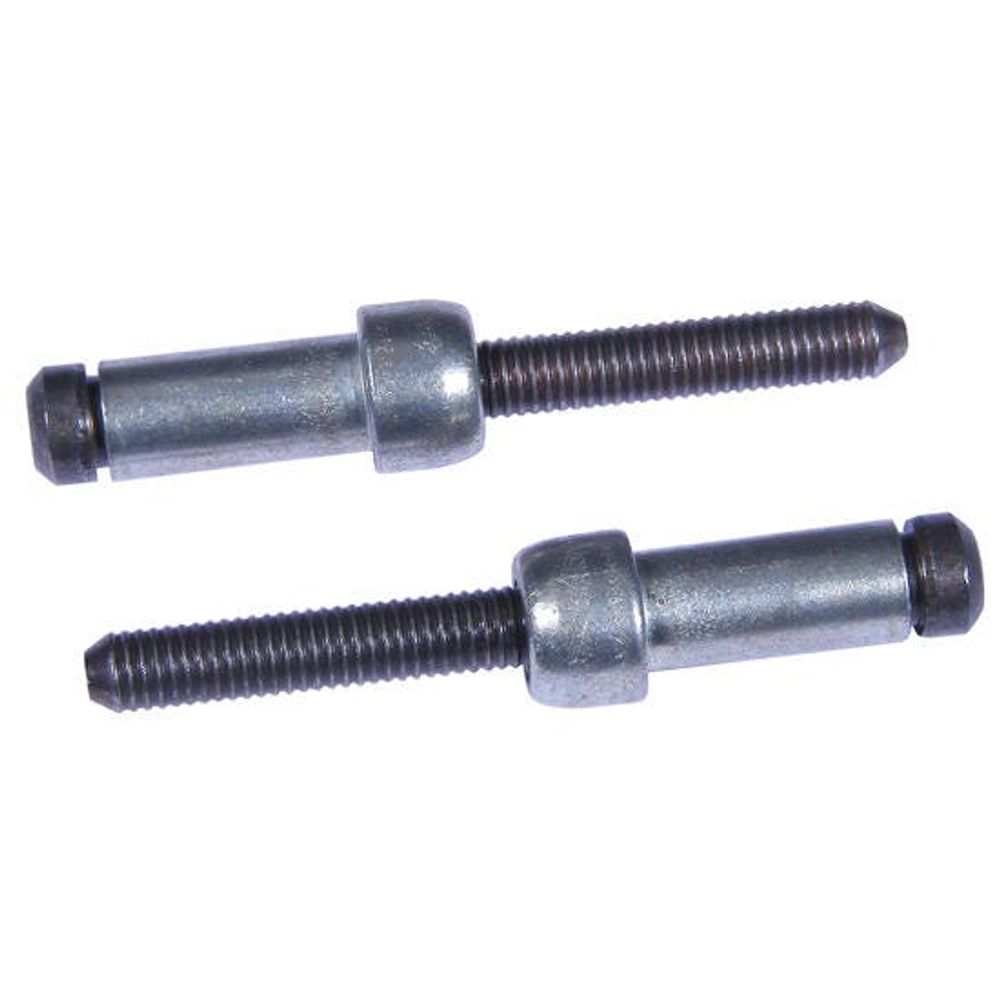

AVDEL Carbon steel Lockbolts with 4.8mm [3/16] nominal diameter with 7.16 - 8.76 mm grip range - 21021-00605
Cód:
21021-00605
Opinião dos Consumidores:0

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

7.16-8.76 mm grip with 4.8mm [3/16] Nominal Diameter based on Collar head style and Carbon steel Pin Material

Avbolt

nominal Diameter4.8mm [3/16]
Pin MaterialCarbon steel
Head StyleCollar
Min grip mm7.16
Max grip mm8.76
Min Grip Inches0.282
Max Grip Inches0.345
Min Hole Size mm5.28
Max Hole Size mm5.64
Min Holes Size Inches0.208
Max Hole Size Inches0.222
Body Length mm17.2
Body Length Inches0.677
Head Diameter mm7.32
Head Diameter inches0.288
Head Thickness mm4.95
Head Thickness Inches0.195

default

JDE_Weight_UOMLB
JDE_Weight_Per_UOMM
JDE_HTS_Code7318290000
JDE_Country_of_OriginGB
JDE_Lead_Time_Days252
JDE_Weight11.504
Minimum Order Quantity50000
Features

    Fast Facts:

  • Use on blind-sided application.
  • High tensile and shear strength.
  • Speed of installation.
  • Vibration resistance.
  • High grip capability.
  • Tamper resistant.
  • Ideal for areas with restricted access.
  • Used in assembly applications such as ship building, railway, automotive assembly including car seats, other ground transportation, mining equipment, and construction.

    • Specifications:
  • Sizes: 4.8 mm, 6.4 mm, 8.0 mm, 10 mm, 12.7 mm and 1 6mm (3/16", 1/4'', 1/2", 5/16", 3/8" and 5/8")
  • Materials Stem: Alloy steel, black oxide
  • Materials Sleeve and collar: Carbon steel, zinc plated + clear passivated
  • Collar: Flanged (only on 3/8'', 1/2" & 5/8'' (three piece) diameters)
