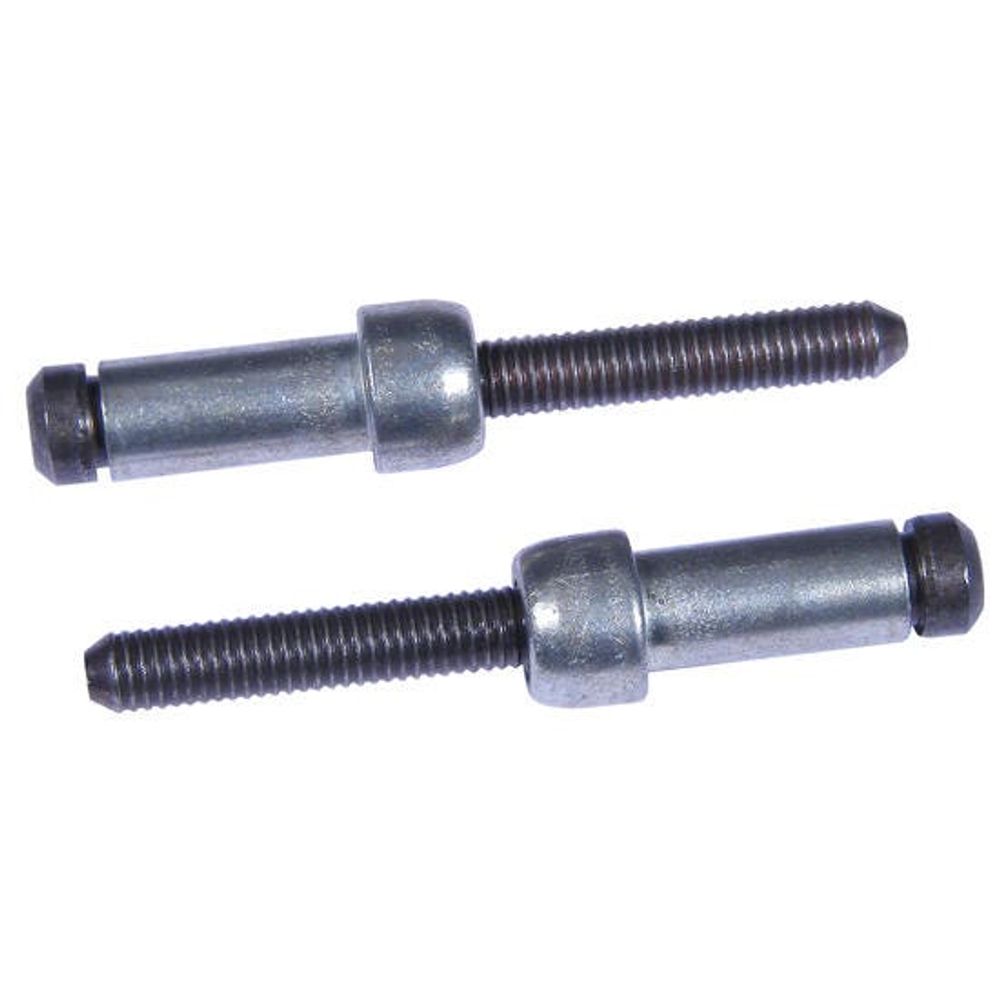

AVDEL Carbon steel Lockbolts with 10mm [3/8] nominal diameter with 7.95 - 11.13 mm grip range - 21001-01206
Cód:
21001-01206
![AVDEL Carbon steel Lockbolts with 10mm [3/8] nominal diameter with 7.95 - 11.13 mm grip range 21001-01206](https://sbdsefprod.vteximg.com.br/arquivos/ids/168795-1000-1000/21001-01206.jpg?v=637729552964800000 "AVDEL Carbon steel Lockbolts with 10mm [3/8] nominal diameter with 7.95 - 11.13 mm grip range 21001-01206")
De: $0.00Por: $0.02ou X de
Preço a vista: $0.02
De: $0.00Por: $0.02ou X de
Preço a vista: $0.02
| nominal Diameter | 10mm [3/8] |
|---|---|
| Pin Material | Carbon steel |
| Head Style | Collar |
| Min grip mm | 7.95 |
| Max grip mm | 11.13 |
| Min Grip Inches | 0.313 |
| Max Grip Inches | 0.438 |
| Min Hole Size mm | 10.49 |
| Max Hole Size mm | 11.05 |
| Min Holes Size Inches | 0.413 |
| Max Hole Size Inches | 0.435 |
| Body Length mm | 28.27 |
| Body Length Inches | 1.113 |
| Head Diameter mm | 18.77 |
| Head Diameter inches | 0.739 |
| Head Thickness mm | 12.65 |
| Head Thickness Inches | 0.498 |
| Shear kN | 44.99 |
| Tensile kN | 32.24 |
| Shear lbf | 10115.0 |
| Tensile lbf | 7250.0 |
| JDE_Weight_UOM | LB |
|---|---|
| JDE_Weight_Per_UOM | M |
| JDE_HTS_Code | 7318290000 |
| JDE_Country_of_Origin | GB |
| JDE_Lead_Time_Days | 252 |
| JDE_Weight | 16.86536 |
| Minimum Order Quantity | 10200 |
| Features |
Fast Facts: Specifications: |
