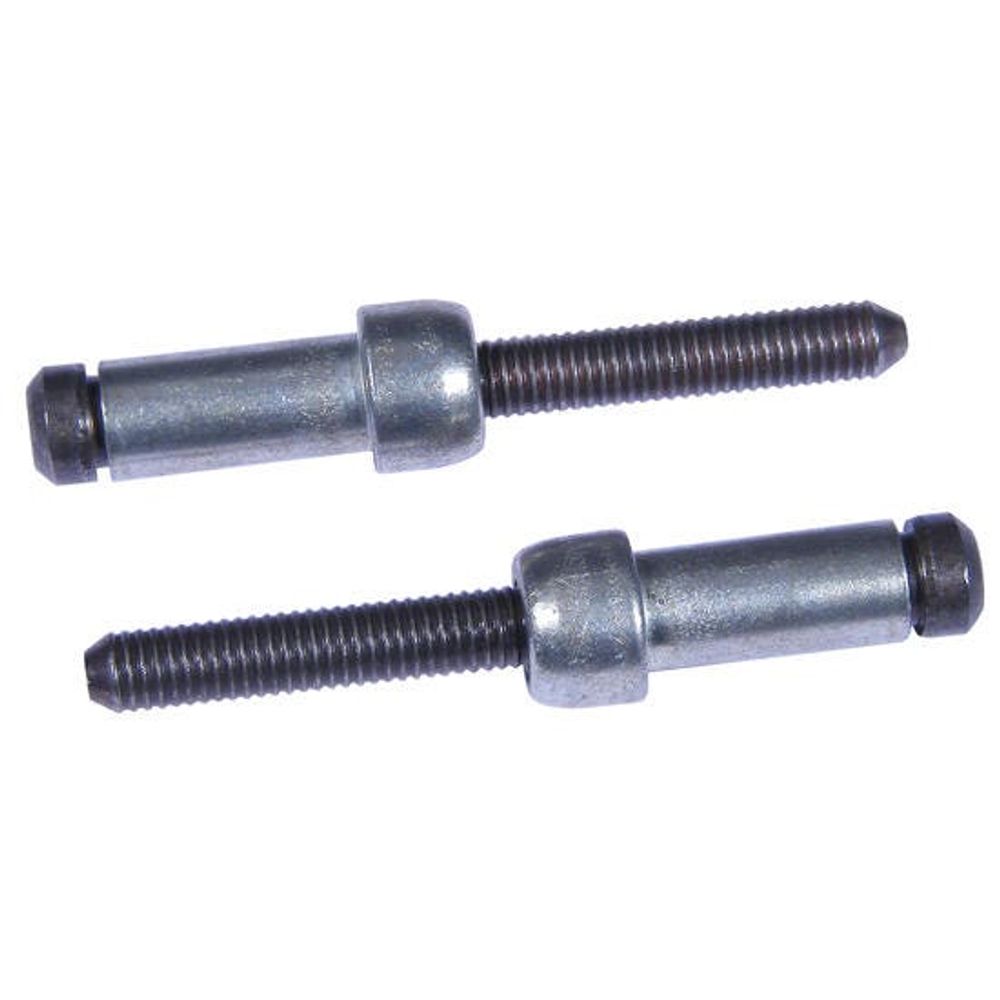

AVDEL Carbon steel Lockbolts with 8mm [5/16] nominal diameter with 4.78 - 7.95 mm grip range - 21021-01004
Cód:
21021-01004
Opinião dos Consumidores:0

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

4.78-7.95 mm grip with 8mm [5/16] Nominal Diameter based on Collar head style and Carbon steel Pin Material

Avbolt

nominal Diameter8mm [5/16]
Pin MaterialCarbon steel
Head StyleCollar
Min grip mm4.78
Max grip mm7.95
Min Grip Inches0.188
Max Grip Inches0.313
Min Hole Size mm8.84
Max Hole Size mm9.35
Min Holes Size Inches0.348
Max Hole Size Inches0.368
Body Length mm23.29
Body Length Inches0.917
Head Diameter mm12.4
Head Diameter inches0.488
Head Thickness mm8.64
Head Thickness Inches0.34

default

JDE_HTS_Code7318290000
JDE_Country_of_OriginGB
JDE_Lead_Time_Days252
Minimum Order Quantity50000
Features

    Fast Facts:

  • Use on blind-sided application.
  • High tensile and shear strength.
  • Speed of installation.
  • Vibration resistance.
  • High grip capability.
  • Tamper resistant.
  • Ideal for areas with restricted access.
  • Used in assembly applications such as ship building, railway, automotive assembly including car seats, other ground transportation, mining equipment, and construction.

    • Specifications:
  • Sizes: 4.8 mm, 6.4 mm, 8.0 mm, 10 mm, 12.7 mm and 1 6mm (3/16", 1/4'', 1/2", 5/16", 3/8" and 5/8")
  • Materials Stem: Alloy steel, black oxide
  • Materials Sleeve and collar: Carbon steel, zinc plated + clear passivated
  • Collar: Flanged (only on 3/8'', 1/2" & 5/8'' (three piece) diameters)
