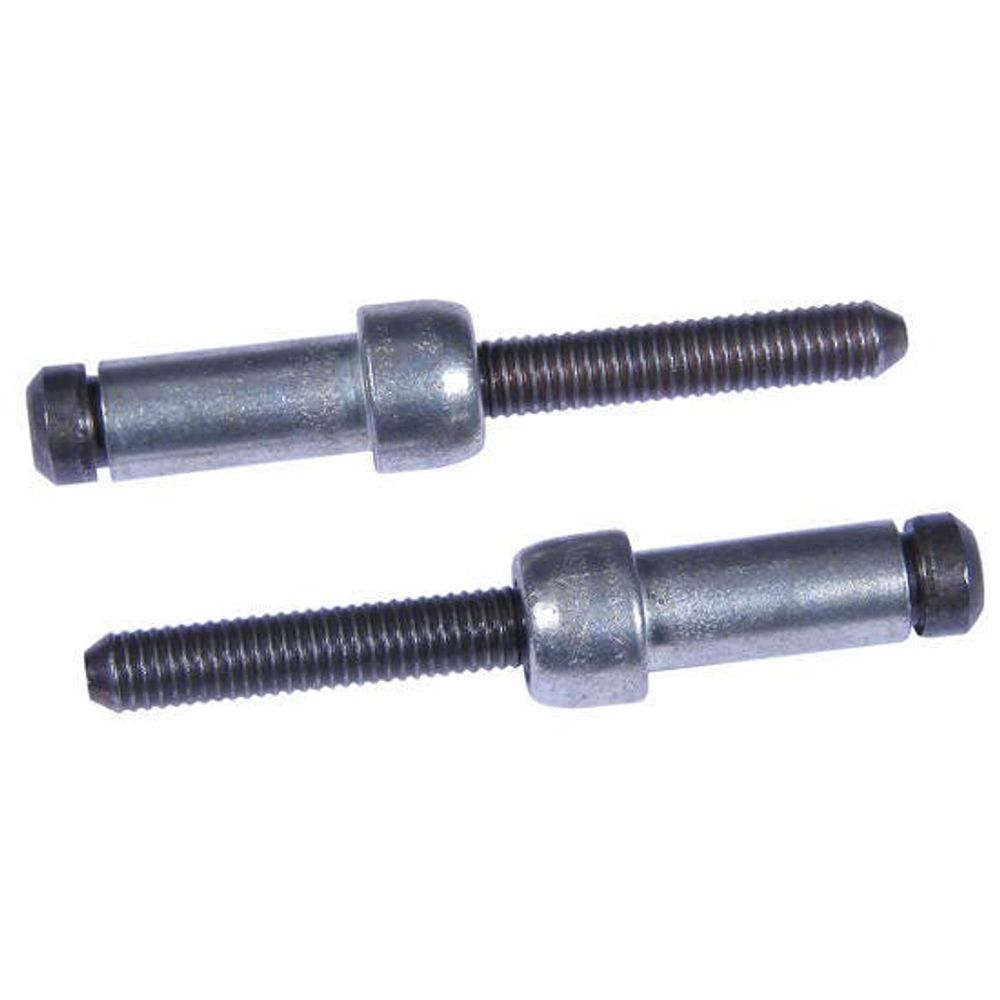

AVDEL Carbon steel Lockbolts with 12.7mm [1/2] nominal diameter with 6.38 - 9.55 mm grip range - 21001-01604
Cód:
21001-01604
Opinião dos Consumidores:0

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

6.38-9.55 mm grip with 12.7mm [1/2] Nominal Diameter based on Collar head style and Carbon steel Pin Material

Avbolt

Tensile lbf13000.0
Shear lbf20150.0
Tensile kN57.82
Shear kN89.63
Head Thickness Inches0.591
Head Thickness mm15.01
Head Diameter inches0.957
Head Diameter mm24.31
Body Length Inches1.253
Body Length mm31.83
Max Hole Size Inches0.581
Min Holes Size Inches0.546
Max Hole Size mm14.76
Min Hole Size mm13.87
Max Grip Inches0.376
Min Grip Inches0.251
Max grip mm9.55
Min grip mm6.38
Head StyleCollar
Pin MaterialCarbon steel
nominal Diameter12.7mm [1/2]

default

JDE_Weight_UOMLB
JDE_Weight_Per_UOMM
JDE_HTS_Code7318290000
JDE_Lead_Time_Days252
JDE_Weight185.59
Minimum Order Quantity250000
Features

    Fast Facts:

  • Use on blind-sided application.
  • High tensile and shear strength.
  • Speed of installation.
  • Vibration resistance.
  • High grip capability.
  • Tamper resistant.
  • Ideal for areas with restricted access.
  • Used in assembly applications such as ship building, railway, automotive assembly including car seats, other ground transportation, mining equipment, and construction.

    • Specifications:
  • Sizes: 4.8 mm, 6.4 mm, 8.0 mm, 10 mm, 12.7 mm and 1 6mm (3/16", 1/4'', 1/2", 5/16", 3/8" and 5/8")
  • Materials Stem: Alloy steel, black oxide
  • Materials Sleeve and collar: Carbon steel, zinc plated + clear passivated
  • Collar: Flanged (only on 3/8'', 1/2" & 5/8'' (three piece) diameters)
