Chobert 4 mm Aluminium Speed Fastener - 01125-00510
Cód:
01125-00510
Opinião dos Consumidores:0

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

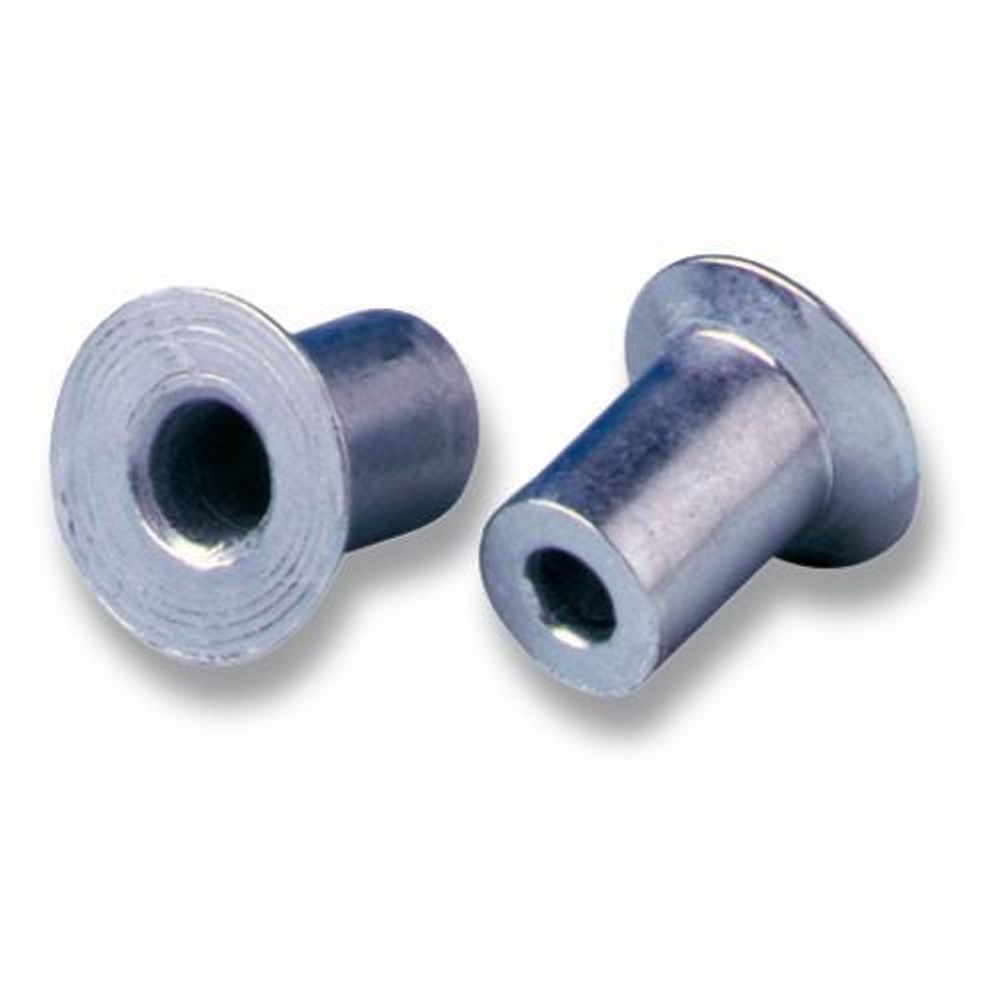

Descrição do Produto

4.75-6.35 mm grip with 4 Nominal Diameter with 4.09-4.16 mm Hole Size and Aluminium Material

Chobert

BrandAvdel
nominal Diameter4.0
MaterialAluminium
Finishnatural
Min grip mm4.75
Max grip mm6.35
Min Grip Inches0.19
Max Grip Inches0.25
Fasteners per Pod31
Tensile lbfNo value
Shear lbf224.81
Tensile kNNo value
Shear kN1
Flange Thickness Inches0.05826771653543307
Flange Thickness mm1.48
Flange Diameter inches0.25708661417322837
Flange Diameter mm6.53
Max Secondary Protrusion inches0.15984251968503937
Max Secondary Protrusion mm4.06
Body Length Inches0.31181102362204727
Body Length mm7.92
Max Hole Size Inches0.16377952755905514
Min Holes Size Inches0.1610236220472441
Max Hole Size mm4.16
Min Hole Size mm4.09

default

JDE_Weight_UOMLB
JDE_Weight_Per_UOMM
JDE_HTS_Code7616103000
JDE_Country_of_OriginGB
JDE_Lead_Time_Days252
JDE_Weight0.6679332
Minimum Order Quantity10000
Features

    Fast Facts:

  • Internally tapered bore ensures consistent light clamp to reduce potential damage to soft or brittle materials.
  • The light clamp makes it ideal for use as a pivot pin or hose tail.
  • Expands radially during installation to ensure maximum hole fill.
  • Lower in-place costs than welding or nail rivets.
  • Placed using a unique repetition mandrel system for high speed assembly.
  • Can be bowl fed for larger volume applications using automated equipment.
  • Available as a customized design to meet your unique assembly requirements.
  • Popular assembly applications include automotive, electronic component, sheet metal, electrical engineering, injection molded components, switchgear, domestic appliance, and light fabrication.

    • Specifications:
  • Sizes: 2.4mm to 6.4mm (3/32" to ¼")
  • Materials: Aluminum alloy, steel, brass, nickel plated brass, and tin plated brass*
  • Headform: Dome/mushroom and countersunk
