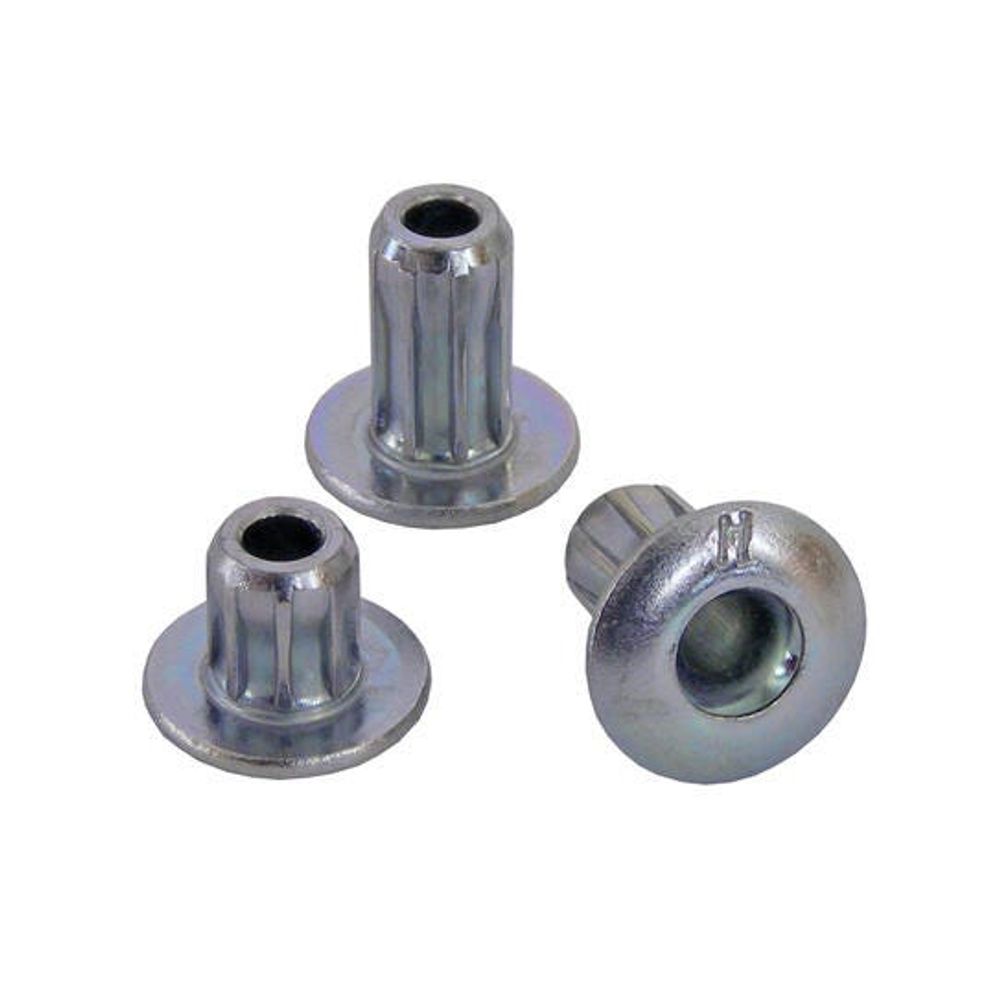

NeoSpeed 3.2 mm Aluminium 5%Mg Speed Fastener - 57101-03207
Cód:
57101-03207
Opinião dos Consumidores:0

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

0.4-4.5 mm grip with 3.2 Nominal Diameter with 3.35-3.62 mm Hole Size and Aluminium 5%Mg Material

NeoSpeed

BrandAvdel
nominal Diameter3.2
MaterialAluminium 5%Mg
Finishnatural
Min grip mm0.4
Max grip mm4.5
Min Grip Inches0.02
Max Grip Inches0.17716535433070868
Min Hole Size mm3.35
Max Hole Size mm3.62
Min Holes Size Inches0.13188976377952757
Max Hole Size Inches0.1425196850393701
Body Length mm7.3
Body Length Inches0.2874015748031496
Max Secondary Protrusion mm3.17
Max Secondary Protrusion inches0.12480314960629922
Flange Diameter mm6.53
Flange Diameter inches0.25708661417322837
Flange Thickness mm1.1
Flange Thickness Inches0.043307086614173235
Shear kN0.76
Tensile kN1.25
Shear lbf170.8556
Tensile lbf281.0125
Fasteners per Pod37

default

JDE_Weight_UOMLB
JDE_Weight_Per_UOMM
JDE_HTS_Code7616103000
JDE_Country_of_OriginGB
JDE_Lead_Time_Days252
JDE_Weight3.02033
Minimum Order Quantity10000
Features

    Fast Facts:

  • Multi-grip capability accommodates wide variations in material thickness.
  • One rivet can be used to replace several standard grip fasteners.
  • External splines fill rear sheet and oversize front sheet holes.
  • 3x greater hole-size tolerance than standard breakstem rivets.
  • Far less sensitive to application variations.
  • Easier specification due to one-rivet x one-mandrel solution.
  • Typically half the installed weight versus an equivalent breakstem rivet.
  • Either magazine-fed or fed via a vibrating bowl to a wide choice of installation equipment.
  • Assembly applications where you will find NeoSpeed® fasteners include automotive, electronic, domestic appliance, electrical equipment, and general light fabrication.

    • Specifications:
  • Sizes: 3.2 mm (1/8") to 4.8 mm (5/32")
  • Materials: Steel, Stainless Steel A4, Aluminum
  • Head Styles: Mushroom, Countersunk
