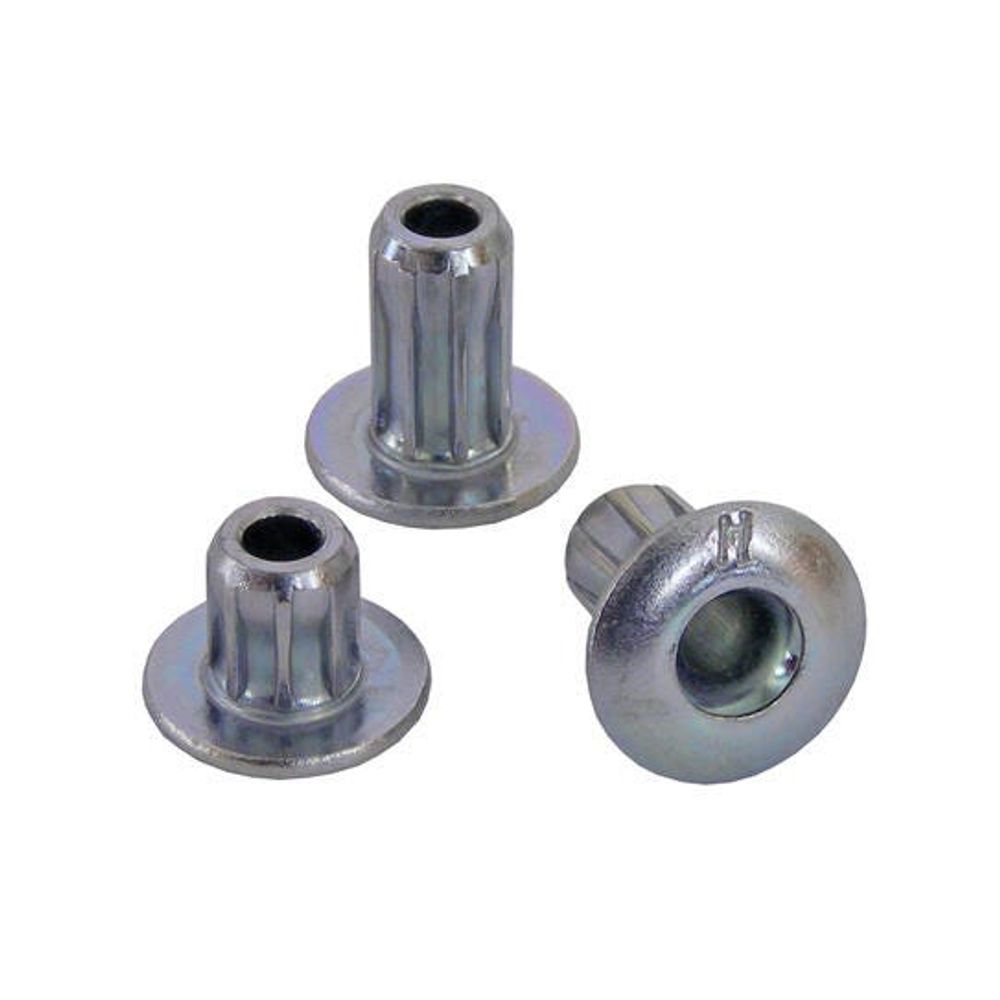

NeoSpeed 4.8 mm Steel Speed Fastener - 57121-04808
Cód:
57121-04808
Opinião dos Consumidores:0

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

0.6-5.2 mm grip with 4.8 Nominal Diameter with 5-5.4 mm Hole Size and Steel Material

NeoSpeed

BrandAvdel
nominal Diameter4.8
MaterialSteel
FinishZinc clear passivated
Min grip mm0.6
Max grip mm5.2
Min Grip Inches0.02
Max Grip Inches0.20472440944881892
Min Hole Size mm5.0
Max Hole Size mm5.4
Min Holes Size Inches0.1968503937007874
Max Hole Size Inches0.21259842519685043
Body Length mm8.9
Body Length Inches0.3503937007874016
Max Secondary Protrusion mm4.79
Max Secondary Protrusion inches0.18858267716535435
Flange Diameter mm9.71
Flange Diameter inches0.3822834645669292
Flange Thickness mm1.5
Flange Thickness Inches0.05905511811023623
Shear kN2.6
Tensile kN4.2
Shear lbf584.506
Tensile lbf944.202
Fasteners per Pod30

default

JDE_Weight_UOMLB
JDE_Weight_Per_UOMM
JDE_HTS_Code7318230000
JDE_Country_of_OriginGB
JDE_Lead_Time_Days252
JDE_Weight3.31
Minimum Order Quantity6000
Features

    Fast Facts:

  • Multi-grip capability accommodates wide variations in material thickness.
  • One rivet can be used to replace several standard grip fasteners.
  • External splines fill rear sheet and oversize front sheet holes.
  • 3x greater hole-size tolerance than standard breakstem rivets.
  • Far less sensitive to application variations.
  • Easier specification due to one-rivet x one-mandrel solution.
  • Typically half the installed weight versus an equivalent breakstem rivet.
  • Either magazine-fed or fed via a vibrating bowl to a wide choice of installation equipment.
  • Assembly applications where you will find NeoSpeed® fasteners include automotive, electronic, domestic appliance, electrical equipment, and general light fabrication.

    • Specifications:
  • Sizes: 3.2 mm (1/8") to 4.8 mm (5/32")
  • Materials: Steel, Stainless Steel A4, Aluminum
  • Head Styles: Mushroom, Countersunk
