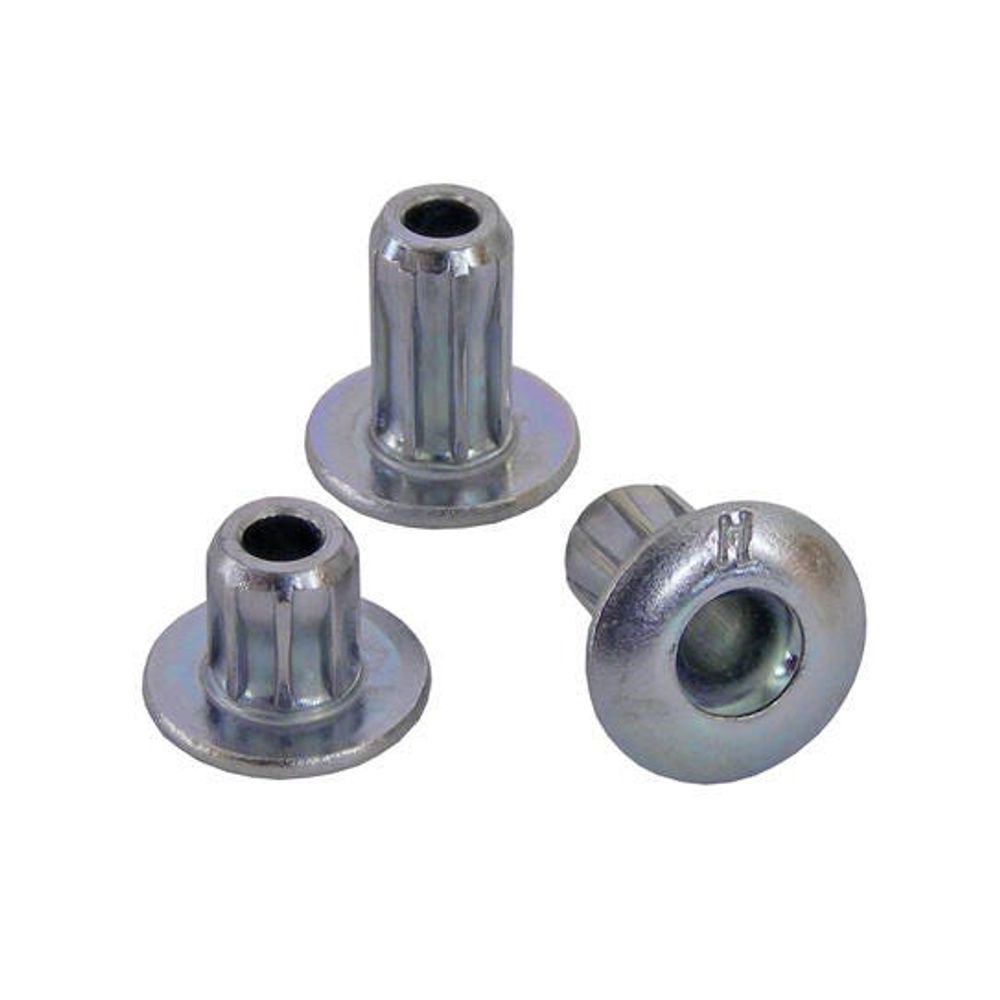

NeoSpeed 3.2 mm Aluminium 5%Mg Speed Fastener - 57101-03211
Cód:
57101-03211
Opinião dos Consumidores:0

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

0.4-8.6 mm grip with 3.2 Nominal Diameter with 3.35-3.62 mm Hole Size and Aluminium 5%Mg Material

NeoSpeed

BrandAvdel
nominal Diameter3.2
MaterialAluminium 5%Mg
Finishnatural
Min grip mm0.4
Max grip mm8.6
Min Grip Inches0.02
Max Grip Inches0.33858267716535434
Min Hole Size mm3.35
Max Hole Size mm3.62
Min Holes Size Inches0.13188976377952757
Max Hole Size Inches0.1425196850393701
Body Length mm11.5
Body Length Inches0.45275590551181105
Max Secondary Protrusion mm3.17
Max Secondary Protrusion inches0.12480314960629922
Flange Diameter mm6.53
Flange Diameter inches0.25708661417322837
Flange Thickness mm1.1
Flange Thickness Inches0.043307086614173235
Shear kN0.76
Tensile kN1.25
Shear lbf170.8556
Tensile lbf281.0125
Fasteners per Pod24

default

JDE_Weight_UOMLB
JDE_Weight_Per_UOMM
JDE_HTS_Code7616103000
JDE_Country_of_OriginGB
JDE_Lead_Time_Days252
JDE_Weight2.85499
Minimum Order Quantity56000
Features

    Fast Facts:

  • Multi-grip capability accommodates wide variations in material thickness.
  • One rivet can be used to replace several standard grip fasteners.
  • External splines fill rear sheet and oversize front sheet holes.
  • 3x greater hole-size tolerance than standard breakstem rivets.
  • Far less sensitive to application variations.
  • Easier specification due to one-rivet x one-mandrel solution.
  • Typically half the installed weight versus an equivalent breakstem rivet.
  • Either magazine-fed or fed via a vibrating bowl to a wide choice of installation equipment.
  • Assembly applications where you will find NeoSpeed® fasteners include automotive, electronic, domestic appliance, electrical equipment, and general light fabrication.

    • Specifications:
  • Sizes: 3.2 mm (1/8") to 4.8 mm (5/32")
  • Materials: Steel, Stainless Steel A4, Aluminum
  • Head Styles: Mushroom, Countersunk
