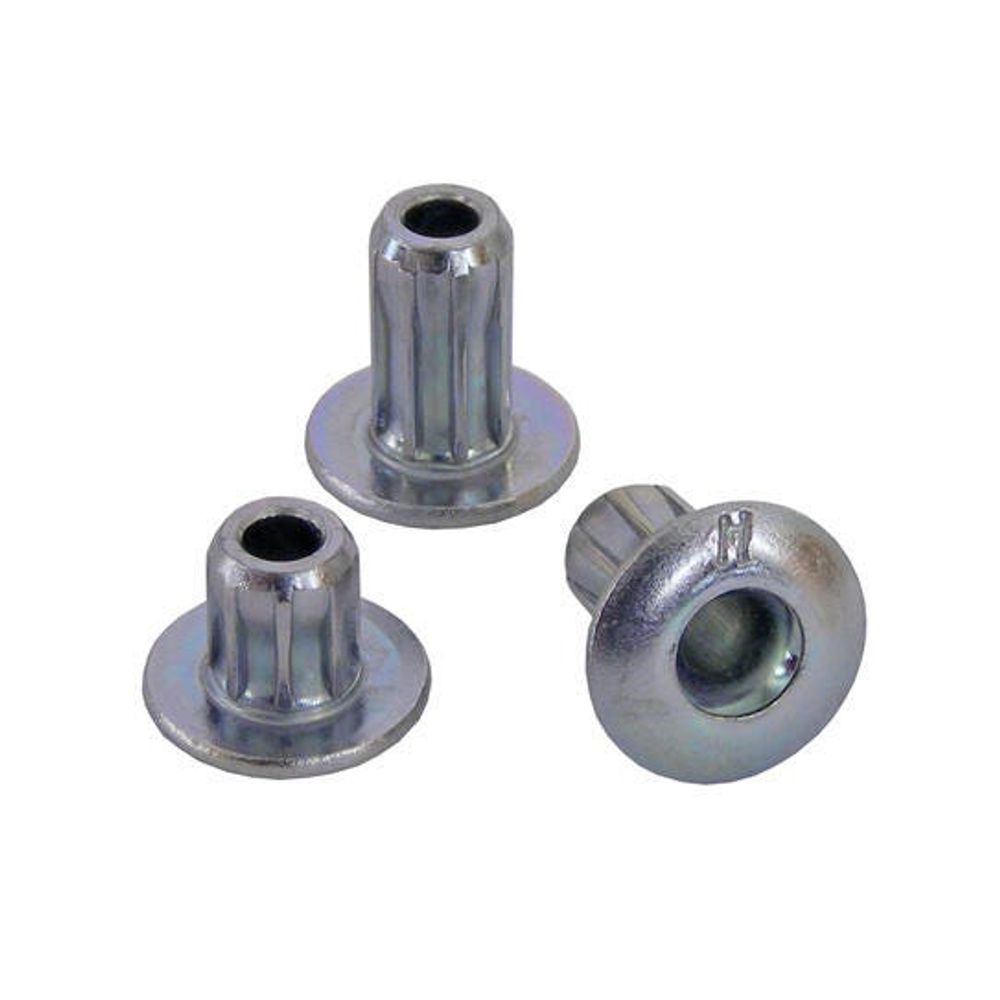

NeoSpeed 4 mm A4 Stainless Speed Fastener - 57141-04009
Cód:
57141-04009
Opinião dos Consumidores:0

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

0.5-7.1 mm grip with 4 Nominal Diameter with 4.1-4.43 mm Hole Size and A4 Stainless Material

NeoSpeed

BrandAvdel
nominal Diameter4.0
MaterialA4 Stainless
FinishPassivated
Min grip mm0.5
Max grip mm7.1
Min Grip Inches0.02
Max Grip Inches0.2795275590551181
Min Hole Size mm4.1
Max Hole Size mm4.43
Min Holes Size Inches0.16141732283464566
Max Hole Size Inches0.17440944881889764
Body Length mm9.7
Body Length Inches0.38188976377952755
Max Secondary Protrusion mm3.84
Max Secondary Protrusion inches0.15118110236220472
Flange Diameter mm7.93
Flange Diameter inches0.31220472440944885
Flange Thickness mm1.25
Flange Thickness Inches0.04921259842519685
Shear kN2.9
Tensile kN3.9
Shear lbf651.949
Tensile lbf876.759
Fasteners per Pod28

default

JDE_Weight_UOMLB
JDE_Weight_Per_UOMM
JDE_HTS_Code7318230000
JDE_Country_of_OriginGB
JDE_Lead_Time_Days252
JDE_Weight12.69863
Minimum Order Quantity64000
Features

    Fast Facts:

  • Multi-grip capability accommodates wide variations in material thickness.
  • One rivet can be used to replace several standard grip fasteners.
  • External splines fill rear sheet and oversize front sheet holes.
  • 3x greater hole-size tolerance than standard breakstem rivets.
  • Far less sensitive to application variations.
  • Easier specification due to one-rivet x one-mandrel solution.
  • Typically half the installed weight versus an equivalent breakstem rivet.
  • Either magazine-fed or fed via a vibrating bowl to a wide choice of installation equipment.
  • Assembly applications where you will find NeoSpeed® fasteners include automotive, electronic, domestic appliance, electrical equipment, and general light fabrication.

    • Specifications:
  • Sizes: 3.2 mm (1/8") to 4.8 mm (5/32")
  • Materials: Steel, Stainless Steel A4, Aluminum
  • Head Styles: Mushroom, Countersunk
