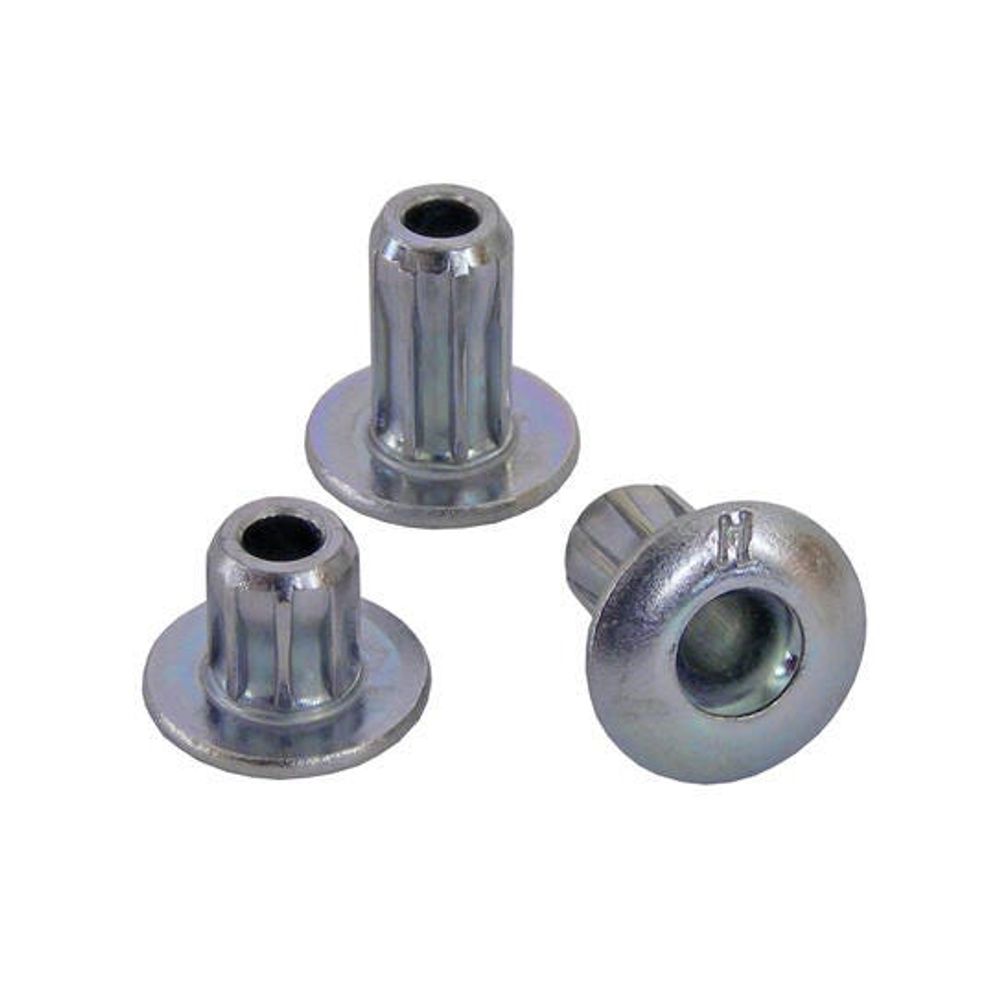

NeoSpeed 4.8 mm A4 Stainless Speed Fastener - 57141-04805
Cód:
57141-04805
Opinião dos Consumidores:0

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

0.6-2.4 mm grip with 4.8 Nominal Diameter with 5-5.3 mm Hole Size and A4 Stainless Material

NeoSpeed

BrandAvdel
nominal Diameter4.8
MaterialA4 Stainless
FinishPassivated
Min grip mm0.6
Max grip mm2.4
Min Grip Inches0.02
Max Grip Inches0.09448818897637795
Min Hole Size mm5.0
Max Hole Size mm5.3
Min Holes Size Inches0.1968503937007874
Max Hole Size Inches0.20866141732283466
Body Length mm5.8
Body Length Inches0.2283464566929134
Max Secondary Protrusion mm4.82
Max Secondary Protrusion inches0.18976377952755907
Flange Diameter mm9.45
Flange Diameter inches0.3720472440944882
Flange Thickness mm1.5
Flange Thickness Inches0.05905511811023623
Shear kN4.4
Tensile kN6.5
Shear lbf989.1640000000001
Tensile lbf1461.265
Fasteners per Pod44

default

JDE_Weight_UOMLB
JDE_Weight_Per_UOMM
JDE_HTS_Code7318230000
JDE_Country_of_OriginGB
JDE_Lead_Time_Days252
JDE_Weight15.60873
Minimum Order Quantity8000
Features

    Fast Facts:

  • Multi-grip capability accommodates wide variations in material thickness.
  • One rivet can be used to replace several standard grip fasteners.
  • External splines fill rear sheet and oversize front sheet holes.
  • 3x greater hole-size tolerance than standard breakstem rivets.
  • Far less sensitive to application variations.
  • Easier specification due to one-rivet x one-mandrel solution.
  • Typically half the installed weight versus an equivalent breakstem rivet.
  • Either magazine-fed or fed via a vibrating bowl to a wide choice of installation equipment.
  • Assembly applications where you will find NeoSpeed® fasteners include automotive, electronic, domestic appliance, electrical equipment, and general light fabrication.

    • Specifications:
  • Sizes: 3.2 mm (1/8") to 4.8 mm (5/32")
  • Materials: Steel, Stainless Steel A4, Aluminum
  • Head Styles: Mushroom, Countersunk
