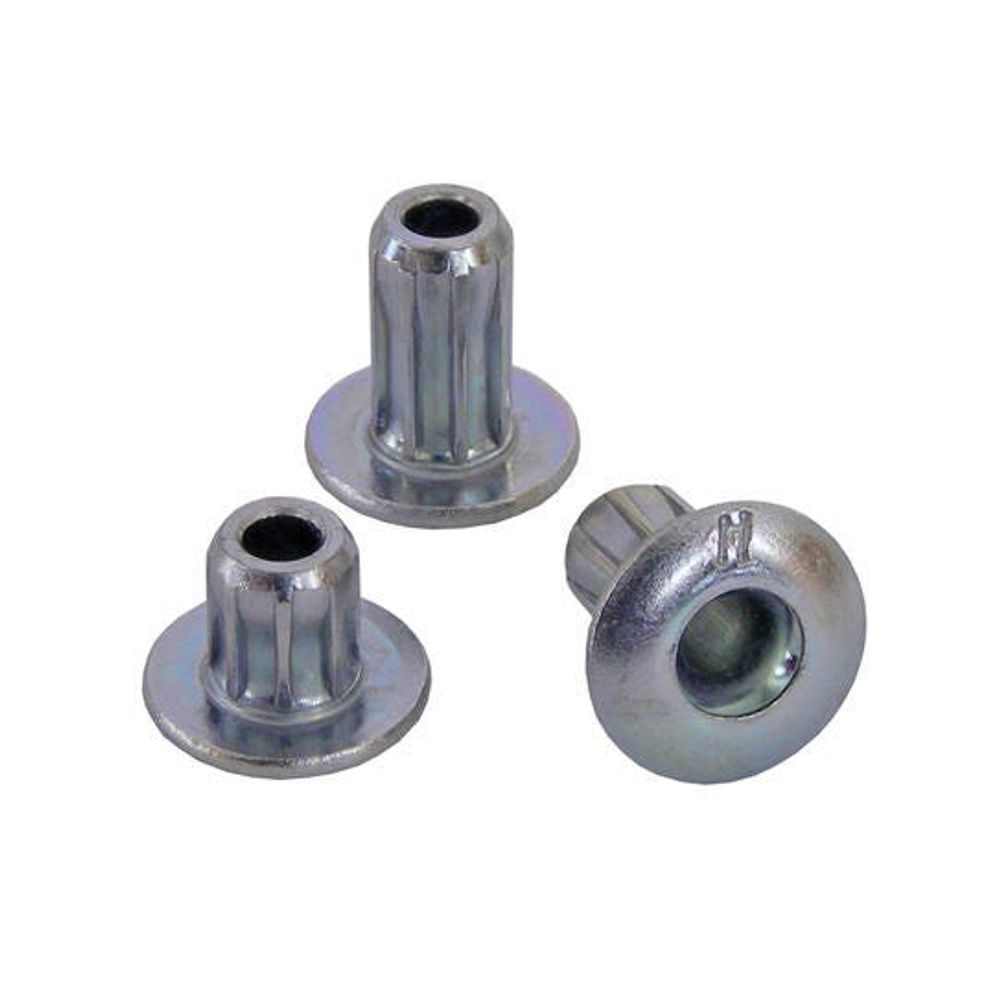

NeoSpeed 4 mm Steel Speed Fastener - 57121-04011
Cód:
57121-04011
Opinião dos Consumidores:0

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

0.5-9.1 mm grip with 4 Nominal Diameter with 4.1-4.43 mm Hole Size and Steel Material

NeoSpeed

nominal Diameter4.0
MaterialSteel
FinishZinc clear passivated
Min grip mm0.5
Max grip mm9.1
Min Grip Inches0.02
Max Grip Inches0.3582677165354331
Min Hole Size mm4.1
Max Hole Size mm4.43
Min Holes Size Inches0.16141732283464566
Max Hole Size Inches0.17440944881889764
Body Length mm11.7
Body Length Inches0.46062992125984253
Max Secondary Protrusion mm3.9
Max Secondary Protrusion inches0.15354330708661418
Flange Diameter mm8.18
Flange Diameter inches0.3220472440944882
Flange Thickness mm1.25
Flange Thickness Inches0.04921259842519685
Shear kN2
Tensile kN2.8
Shear lbf449.62
Tensile lbf629.468
Fasteners per Pod23

default

JDE_Weight_UOMLB
JDE_Weight_Per_UOMM
JDE_HTS_Code7318230000
JDE_Country_of_OriginGB
JDE_Lead_Time_Days252
JDE_Weight10.66155
Minimum Order Quantity54000
Features

    Fast Facts:

  • Multi-grip capability accommodates wide variations in material thickness.
  • One rivet can be used to replace several standard grip fasteners.
  • External splines fill rear sheet and oversize front sheet holes.
  • 3x greater hole-size tolerance than standard breakstem rivets.
  • Far less sensitive to application variations.
  • Easier specification due to one-rivet x one-mandrel solution.
  • Typically half the installed weight versus an equivalent breakstem rivet.
  • Either magazine-fed or fed via a vibrating bowl to a wide choice of installation equipment.
  • Assembly applications where you will find NeoSpeed® fasteners include automotive, electronic, domestic appliance, electrical equipment, and general light fabrication.

    • Specifications:
  • Sizes: 3.2 mm (1/8") to 4.8 mm (5/32")
  • Materials: Steel, Stainless Steel A4, Aluminum
  • Head Styles: Mushroom, Countersunk
