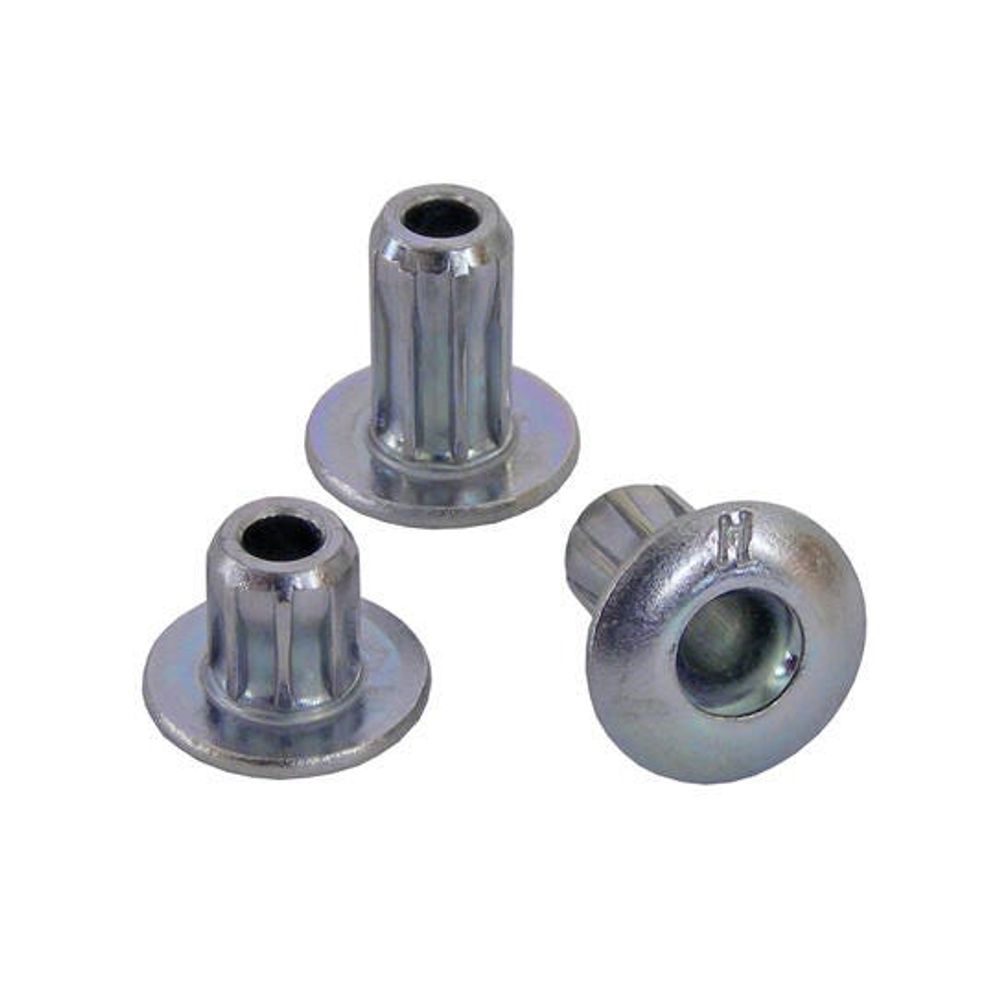

NeoSpeed 3.2 mm Steel Speed Fastener - 57221-03211
Cód:
57221-03211
Opinião dos Consumidores:0

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

1-8.6 mm grip with 3.2 Nominal Diameter with 3.26-3.34 mm Hole Size and Steel Material

NeoSpeed

BrandAvdel
nominal Diameter3.2
MaterialSteel
FinishZinc clear passivated
Min grip mm1.0
Max grip mm8.6
Min Grip Inches0.04
Max Grip Inches0.33858267716535434
Min Hole Size mm3.26
Max Hole Size mm3.34
Min Holes Size Inches0.1283464566929134
Max Hole Size Inches0.131496062992126
Body Length mm11.5
Body Length Inches0.45275590551181105
Max Secondary Protrusion mm3.17
Max Secondary Protrusion inches0.12480314960629922
Flange Diameter mm5.84
Flange Diameter inches0.22992125984251968
Flange Thickness mm0.8
Flange Thickness Inches0.03149606299212599
Shear kN1.15
Tensile kN1.68
Shear lbf258.5315
Tensile lbf377.6808
Fasteners per Pod27

default

JDE_Weight_UOMLB
JDE_Weight_Per_UOMM
JDE_HTS_Code7318230000
JDE_Country_of_OriginGB
JDE_Lead_Time_Days252
JDE_Weight6.14208
Minimum Order Quantity203000
Features

    Fast Facts:

  • Multi-grip capability accommodates wide variations in material thickness.
  • One rivet can be used to replace several standard grip fasteners.
  • External splines fill rear sheet and oversize front sheet holes.
  • 3x greater hole-size tolerance than standard breakstem rivets.
  • Far less sensitive to application variations.
  • Easier specification due to one-rivet x one-mandrel solution.
  • Typically half the installed weight versus an equivalent breakstem rivet.
  • Either magazine-fed or fed via a vibrating bowl to a wide choice of installation equipment.
  • Assembly applications where you will find NeoSpeed® fasteners include automotive, electronic, domestic appliance, electrical equipment, and general light fabrication.

    • Specifications:
  • Sizes: 3.2 mm (1/8") to 4.8 mm (5/32")
  • Materials: Steel, Stainless Steel A4, Aluminum
  • Head Styles: Mushroom, Countersunk
