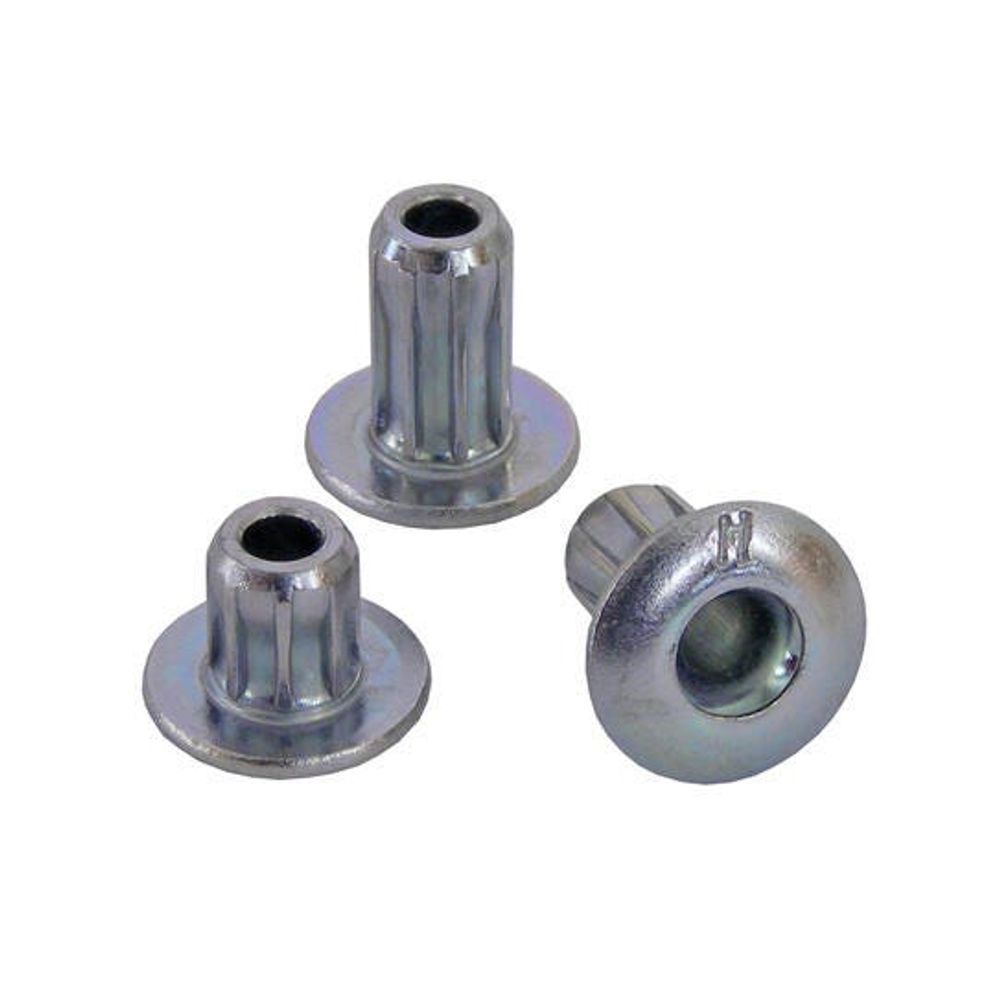

NeoSpeed 3.2 mm A4 Stainless Speed Fastener - 57141-03204
Cód:
57141-03204
Opinião dos Consumidores:0

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

0.4-2 mm grip with 3.2 Nominal Diameter with 3.35-3.62 mm Hole Size and A4 Stainless Material

NeoSpeed

nominal Diameter3.2
MaterialA4 Stainless
FinishPassivated
Min grip mm0.4
Max grip mm2.0
Min Grip Inches0.02
Max Grip Inches0.07874015748031496
Min Hole Size mm3.35
Max Hole Size mm3.62
Min Holes Size Inches0.13188976377952757
Max Hole Size Inches0.1425196850393701
Body Length mm4.8
Body Length Inches0.1889763779527559
Max Secondary Protrusion mm3.17
Max Secondary Protrusion inches0.12480314960629922
Flange Diameter mm6.27
Flange Diameter inches0.2468503937007874
Flange Thickness mm1.12
Flange Thickness Inches0.044094488188976384
Shear kN1.85
Tensile kN2.75
Shear lbf415.8985
Tensile lbf618.2275
Fasteners per Pod52

default

JDE_Weight_UOMLB
JDE_Weight_Per_UOMM
JDE_HTS_Code7318230000
JDE_Country_of_OriginGB
JDE_Lead_Time_Days252
JDE_Weight9.42476
Minimum Order Quantity15000
Features

    Fast Facts:

  • Multi-grip capability accommodates wide variations in material thickness.
  • One rivet can be used to replace several standard grip fasteners.
  • External splines fill rear sheet and oversize front sheet holes.
  • 3x greater hole-size tolerance than standard breakstem rivets.
  • Far less sensitive to application variations.
  • Easier specification due to one-rivet x one-mandrel solution.
  • Typically half the installed weight versus an equivalent breakstem rivet.
  • Either magazine-fed or fed via a vibrating bowl to a wide choice of installation equipment.
  • Assembly applications where you will find NeoSpeed® fasteners include automotive, electronic, domestic appliance, electrical equipment, and general light fabrication.

    • Specifications:
  • Sizes: 3.2 mm (1/8") to 4.8 mm (5/32")
  • Materials: Steel, Stainless Steel A4, Aluminum
  • Head Styles: Mushroom, Countersunk
