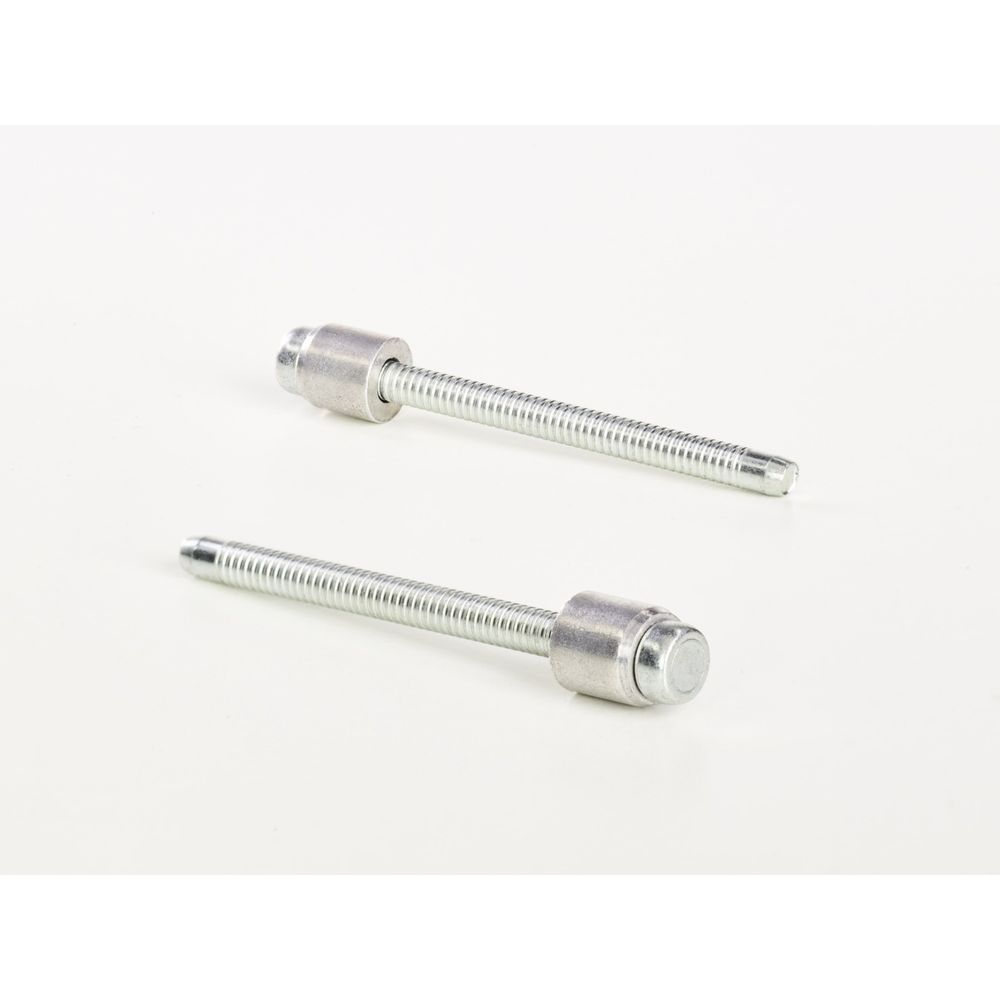

Avseal II 9 mm Aluminium / Steel Sealing Plug - 02961-00911
Cód:
02961-00911
Opinião dos Consumidores:0

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

8.8-9.8 mm hole size with 8.5 mm Sleeve Length and 9 Nominal Diameter with Aluminium Sleeve and Steel Stem

default

JDE_Weight_UOMLB
JDE_Weight_Per_UOMM
JDE_HTS_Code7616107090
JDE_Country_of_OriginGB
JDE_Lead_Time_Days252
JDE_Weight6.97212
Minimum Order Quantity500
Features

    Fast Facts:

  • Blind hole, one-sided installation capability.
  • Fully annealed sleeve yields high sealing performance.
  • Improved seal and wider hole tolerance.
  • Simplified hole alignment when automated placing is required
  • Internal lock. Flat nose tip and ease of use.
  • Improved stem retention and increased vibration resistance.
  • No locking ring formed by nose tip. Standard equipment reduces preventative maintenance.
  • Tapered sleeve and stem allows for ease of entry with standard tooling.
  • Suited to automated systems, seal quality is not operator dependent.
  • Available as a customized design to meet your unique assembly requirements.
  • Popular assembly applications include thin wall applications, restricted space, shorter hole length, high-pressure applications, holes with large tolerance, and automotive low-pressure applications.

    • Specifications:
  • The standard Avseal XT range suits holes of sizes 5mm up to 10mm.
