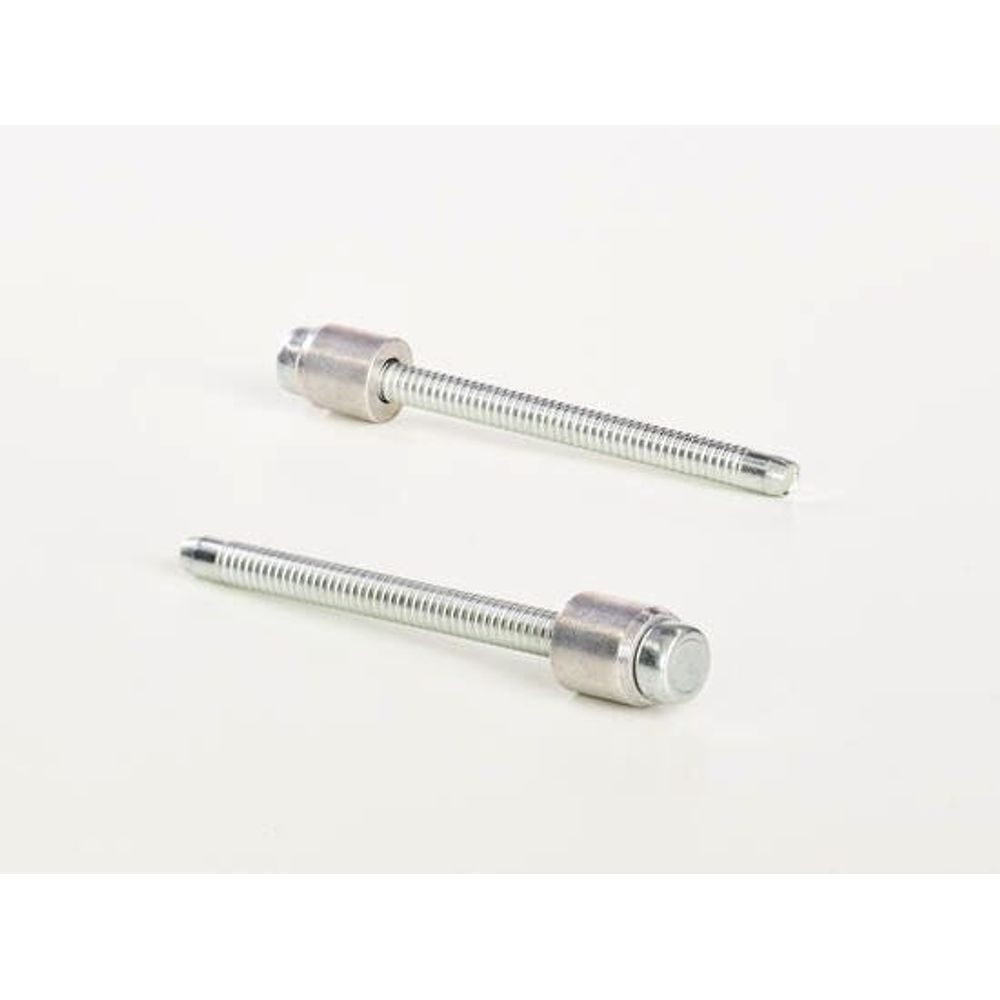

Avseal 4 mm Aluminium / Steel Sealing Plug - 02961-00405
Cód:
02961-00405
Opinião dos Consumidores:0

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

3.9-4.3 mm hole size with 4.1 mm Sleeve Length and 4 Nominal Diameter with Aluminium Sleeve and Steel Stem

Avseal

Nominal Diameter4
Sleeve MaterialAluminium
Stem MaterialSteel
Finish- Sleevenatural
Finish - StemZinc plated clear passivated
Min Hole Size mm3.9
Max Hole Size mm4.3
Min Hole Size Inches0.15
Max Hole Size Inches0.17
Sleeve Length mm4.1
Sleeve Length Inches0.16
Stem Diameter mm1.9
Stem Diameter inches0.07
Stem length mm41.4
Stem length inches1.63

default

JDE_Weight_UOMLB
JDE_Weight_Per_UOMM
JDE_HTS_Code7616109090
JDE_Country_of_OriginGB
JDE_Lead_Time_Days252
Dontuse0
JDE_Weight2.57941
Minimum Order Quantity1000
Features

    Fast Facts:

  • Blind hole, one-sided installation capability.
  • Fully annealed sleeve yields high sealing performance.
  • Improved seal and wider hole tolerance.
  • Larger hole tolerance. Simplified hole alignment when automated placing is required.
  • Internal lock. Flat nose tip and ease of use.
  • Improved stem retention and increased vibration resistance.
  • No locking ring formed by nose tip. Standard equipment reduces preventative maintenance.
  • Tapered sleeve and stem allows ease of entry with standard tooling.
  • Suited to automated systems, seal quality is not operator dependent
  • Available as a customized design to meet your unique assembly requirements.
  • Popular assembly applications include thin wall applications, restricted space, shorter hole length, high-pressure applications, holes with large tolerance, and automotive low-pressure applications.

    • Specifications:
  • 4mm - 12mm in the high-pressure version (Avseal 2961 series)
  • 9mm - 16mm in the low-pressure version, primarily for automotive applications (Avseal 2964 series)
  • Low-pressure version offers a reduced radial expansion force.
