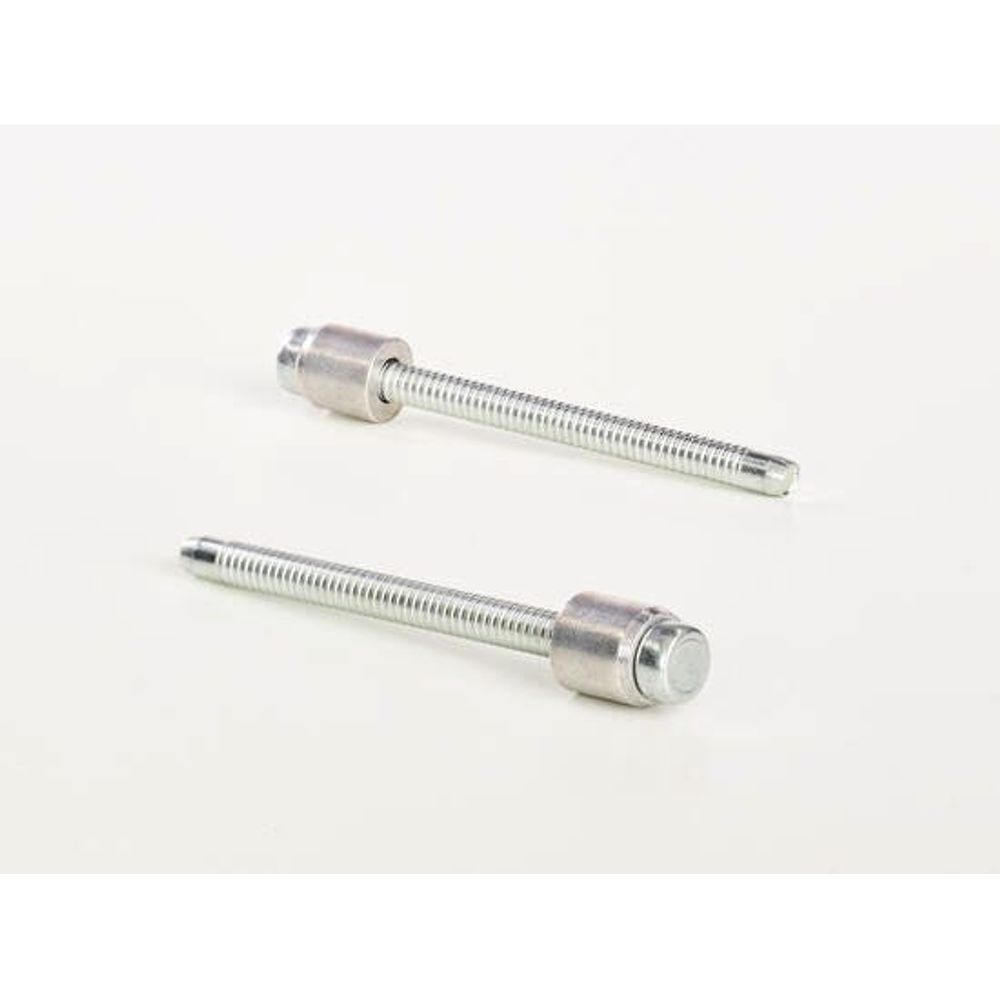

Avseal 8 mm Aluminium / Steel Sealing Plug - 02961-00820

Cód:

02961-00820

Opinião dos Consumidores:0

De: $0.00Por: $0.02ou 1X de $0.02

Preço a vista: $0.02

Comprar

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto Especificações do Produto Avaliações

Descrição do Produto

7.8-8.4 mm hole size with 7.9 mm Sleeve Length and 8 Nominal Diameter with Aluminium Sleeve and Steel Stem

Avseal

Nominal Diameter	8
Sleeve Material	Aluminium
Stem Material	Steel
Finish- Sleeve	natural
Finish - Stem	Zinc plated clear passivated
Min Hole Size mm	7.8
Max Hole Size mm	8.4
Min Hole Size Inches	0.31
Max Hole Size Inches	0.33
Sleeve Length mm	7.9
Sleeve Length Inches	0.31
Stem Diameter mm	3.6
Stem Diameter inches	0.14
Stem length mm	67.8
Stem length inches	2.67

default

Minimum Order Quantity 500

Features

Minimum Order Quantity	500
Features	Fast Facts: Blind hole, one-sided installation capability. Fully annealed sleeve yields high sealing performance. Improved seal and wider hole tolerance. Larger hole tolerance. Simplified hole alignment when automated placing is required. Internal lock. Flat nose tip and ease of use. Improved stem retention and increased vibration resistance. No locking ring formed by nose tip. Standard equipment reduces preventative maintenance. Tapered sleeve and stem allows ease of entry with standard tooling. Suited to automated systems, seal quality is not operator dependent Available as a customized design to meet your unique assembly requirements. Popular assembly applications include thin wall applications, restricted space, shorter hole length, high-pressure applications, holes with large tolerance, and automotive low-pressure applications. Specifications: 4mm - 12mm in the high-pressure version (Avseal 2961 series) 9mm - 16mm in the low-pressure version, primarily for automotive applications (Avseal 2964 series) Low-pressure version offers a reduced radial expansion force.

Fast Facts:

Blind hole, one-sided installation capability.
Fully annealed sleeve yields high sealing performance.
Improved seal and wider hole tolerance.
Larger hole tolerance. Simplified hole alignment when automated placing is required.
Internal lock. Flat nose tip and ease of use.
Improved stem retention and increased vibration resistance.
No locking ring formed by nose tip. Standard equipment reduces preventative maintenance.
Tapered sleeve and stem allows ease of entry with standard tooling.
Suited to automated systems, seal quality is not operator dependent
Available as a customized design to meet your unique assembly requirements.
Popular assembly applications include thin wall applications, restricted space, shorter hole length, high-pressure applications, holes with large tolerance, and automotive low-pressure applications.

Specifications:
4mm - 12mm in the high-pressure version (Avseal 2961 series)
9mm - 16mm in the low-pressure version, primarily for automotive applications (Avseal 2964 series)
Low-pressure version offers a reduced radial expansion force.
