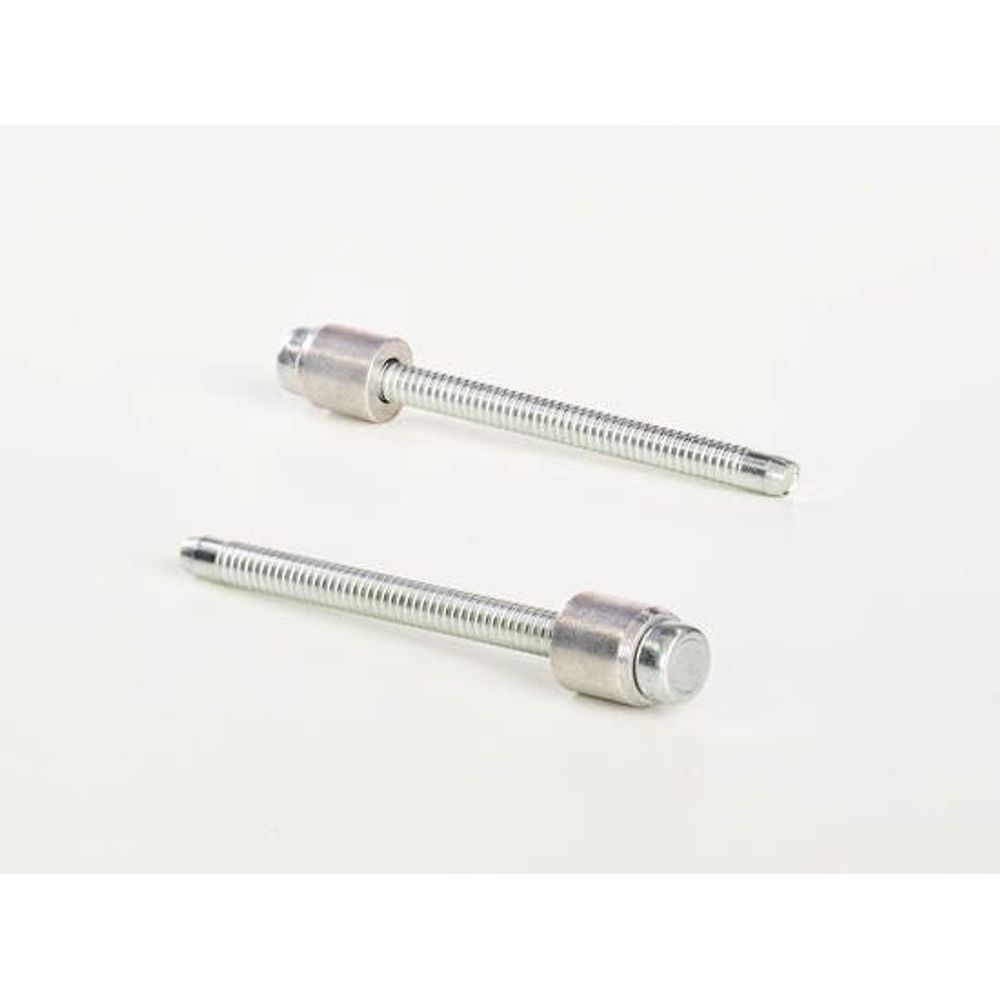

Avseal 12 mm Aluminium / Steel Sealing Plug - 02964-01215
Cód:
02964-01215
Opinião dos Consumidores:0

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

12-12.4 mm hole size with 9.5 mm Sleeve Length and 12 Nominal Diameter with Aluminium Sleeve and Steel Stem

Avseal

Nominal Diameter12
Sleeve MaterialAluminium
Stem MaterialSteel
Finish- Sleevenatural
Finish - StemZinc plated clear passivated
Min Hole Size mm12.0
Max Hole Size mm12.4
Min Hole Size Inches0.47
Max Hole Size Inches0.49
Sleeve Length mm9.5
Sleeve Length Inches0.37
Stem Diameter mm4.4
Stem Diameter inches0.17
Stem length mm53.4
Stem length inches2.1

default

JDE_Weight_UOMLB
JDE_Weight_Per_UOMM
JDE_HTS_Code7616107090
JDE_Country_of_OriginGB
JDE_Lead_Time_Days252
JDE_Weight4.75647
Minimum Order Quantity250
Features

    Fast Facts:

  • Blind hole, one-sided installation capability.
  • Fully annealed sleeve yields high sealing performance.
  • Improved seal and wider hole tolerance.
  • Larger hole tolerance. Simplified hole alignment when automated placing is required.
  • Internal lock. Flat nose tip and ease of use.
  • Improved stem retention and increased vibration resistance.
  • No locking ring formed by nose tip. Standard equipment reduces preventative maintenance.
  • Tapered sleeve and stem allows ease of entry with standard tooling.
  • Suited to automated systems, seal quality is not operator dependent
  • Available as a customized design to meet your unique assembly requirements.
  • Popular assembly applications include thin wall applications, restricted space, shorter hole length, high-pressure applications, holes with large tolerance, and automotive low-pressure applications.

    • Specifications:
  • 4mm - 12mm in the high-pressure version (Avseal 2961 series)
  • 9mm - 16mm in the low-pressure version, primarily for automotive applications (Avseal 2964 series)
  • Low-pressure version offers a reduced radial expansion force.
