Q Rivet 6.4mm [1/4] (8) Stainless Steel / Stainless Steel Structural Rivet Nuts - CCPQ-08-04
Cód:
CCPQ-08-04
Opinião dos Consumidores:0

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

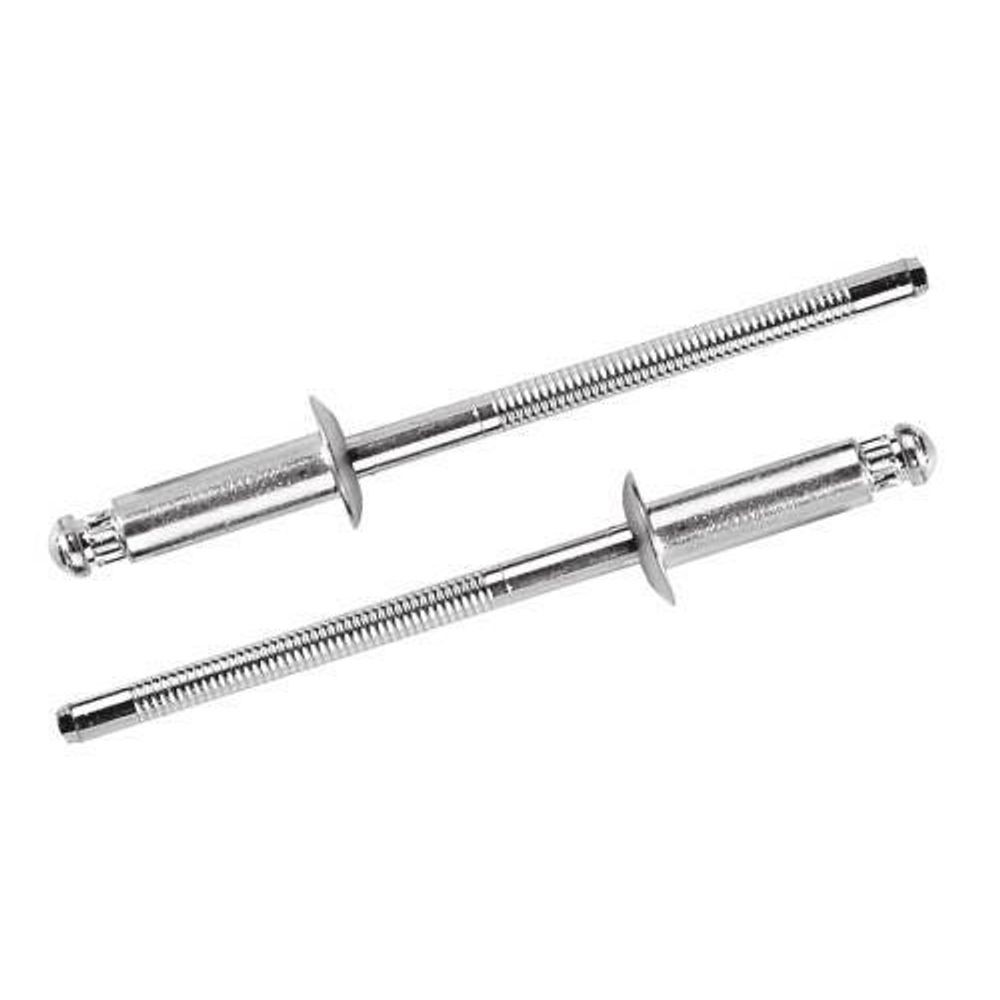

3.2-6.35 mm grip with 6.4mm [1/4] (8) Nominal Diameter based on Dome Head Style with Stainless Steel Body material and Stainless Steel Mandrel material

Q Rivet

product name3.2004-6.35 mm Stainless Steel/Stainless Steel Q Rivet Structural Blind Rivets
nominal Diameter6.4mm [1/4] (8)
Body MaterialStainless Steel
Mandrel MaterialStainless Steel
Finish-BodyNone
Finish- MandrelNone
Head StyleDome
Min grip mm3.2
Max grip mm6.35
Min Grip Inches0.126
Max Grip Inches0.25
Min Hole Size mm6.35
Max Hole Size mm6.63
Min Holes Size Inches0.25
Max Hole Size Inches0.261
Max Body Length mm12.7
Max Body Length Inches0.5
Max Secondary Protrusion mm20.7
Max Secondary Protrusion inches0.815
Flange Diameter mm13.34
Flange Diameter inches0.525
Flange Thickness mm1.96
Flange Thickness Inches0.077
Shear lbf2450
Tensile lbf2250
BrandAvdel

default

JDE_Weight_UOMLB
JDE_Weight_Per_UOMM
JDE_HTS_Code8308206000
JDE_Country_of_OriginUS
JDE_Lead_Time_Days182
JDE_Weight17.526
Features

    Fast Facts:

  • Structural breakstem rivet.
  • Retained stem.
  • Blind hole, one-sided installation capability.
  • Weatherproof fastener.
  • Interference lock formed by a splined stem.
  • Provides powerful locking strength and hole filling.
  • High shear and tensile strength.
  • Spreads the tail bearing/clamp load on the rear sheet.
  • Ideal for thin sheet materials.
  • Provides strong, vibration resistant joints.
  • No damage, electrical problems, or rattling due to loose stems.
  • Breakstem fasteners can be customized to meet unique assembly requirements.

    • Specifications:
  • Sizes: 3.2 mm to 6.4 mm (1/8" to ¼")
  • Materials: Aluminum alloy, steel, and stainless steel
  • Headform: Protruding, large flange, and countersunk
