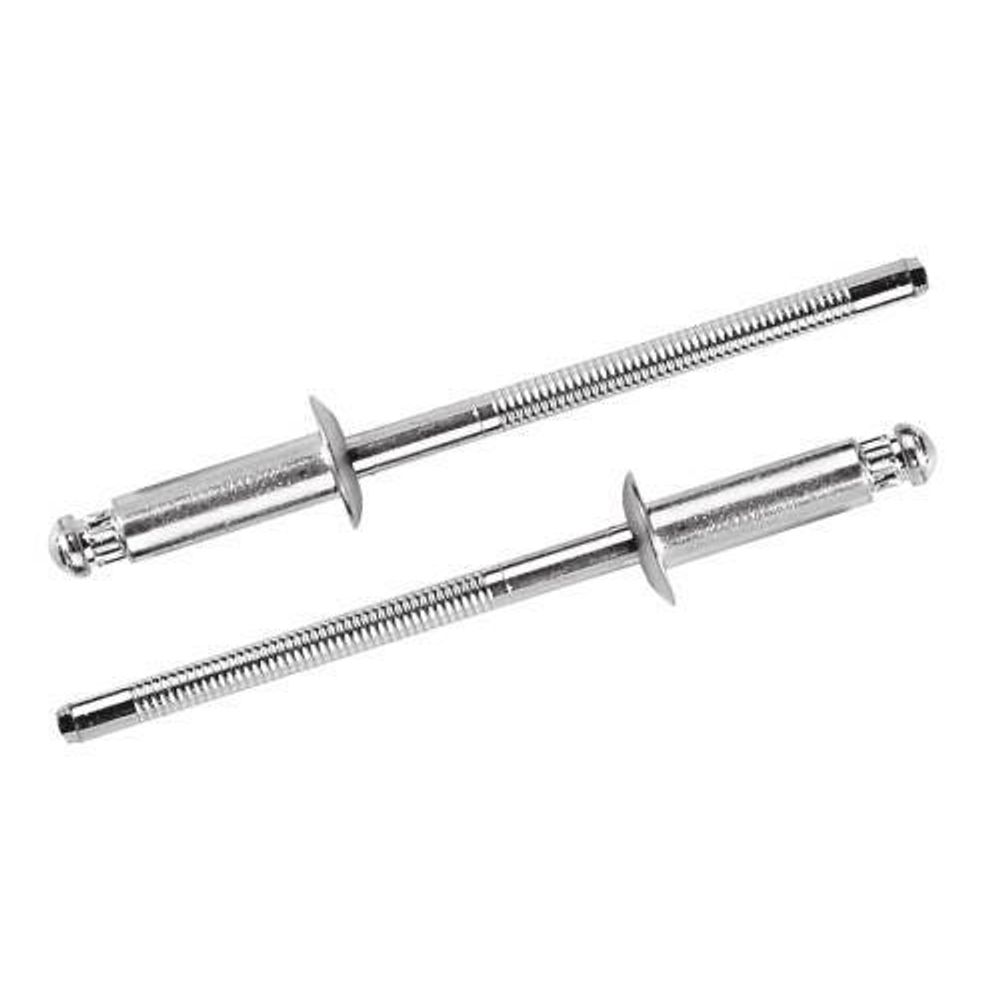

Q Rivet 3.2mm [1/8] (4) Steel / Steel Structural Rivet Nuts

Descrição do Produto

1.6-3.18 mm grip with 3.2mm [1/8] (4) Nominal Diameter based on Dome Head Style with Steel Body material and Steel Mandrel material

product name	1.6002-3.175 mm Steel/Steel Q Rivet Structural Blind Rivets
nominal Diameter	3.2mm [1/8] (4)
Body Material	Steel
Mandrel Material	Steel
Finish-Body	Zinc Plate
Finish- Mandrel	Zinc Plate
Head Style	Dome
Min grip mm	1.6
Max grip mm	3.18
Min Grip Inches	0.063
Max Grip Inches	0.125
Min Hole Size mm	3.28
Max Hole Size mm	3.38
Min Holes Size Inches	0.129
Max Hole Size Inches	0.133
Max Body Length mm	6.99
Max Body Length Inches	0.275
Max Secondary Protrusion mm	11.73
Max Secondary Protrusion inches	0.462
Flange Diameter mm	6.65
Flange Diameter inches	0.262
Flange Thickness mm	1.07
Flange Thickness Inches	0.042
Shear lbf	500
Tensile lbf	400
Brand	Avdel

JDE_Weight_UOM	LB
JDE_Weight_Per_UOM	M
JDE_HTS_Code	8308206000
JDE_Country_of_Origin	US
JDE_Lead_Time_Days	112
JDE_Weight	2.8324
Features	Fast Facts: Structural breakstem rivet. Retained stem. Blind hole, one-sided installation capability. Weatherproof fastener. Interference lock formed by a splined stem. Provides powerful locking strength and hole filling. High shear and tensile strength. Spreads the tail bearing/clamp load on the rear sheet. Ideal for thin sheet materials. Provides strong, vibration resistant joints. No damage, electrical problems, or rattling due to loose stems. Breakstem fasteners can be customized to meet unique assembly requirements. Specifications: Sizes: 3.2 mm to 6.4 mm (1/8" to ¼") Materials: Aluminum alloy, steel, and stainless steel Headform: Protruding, large flange, and countersunk
