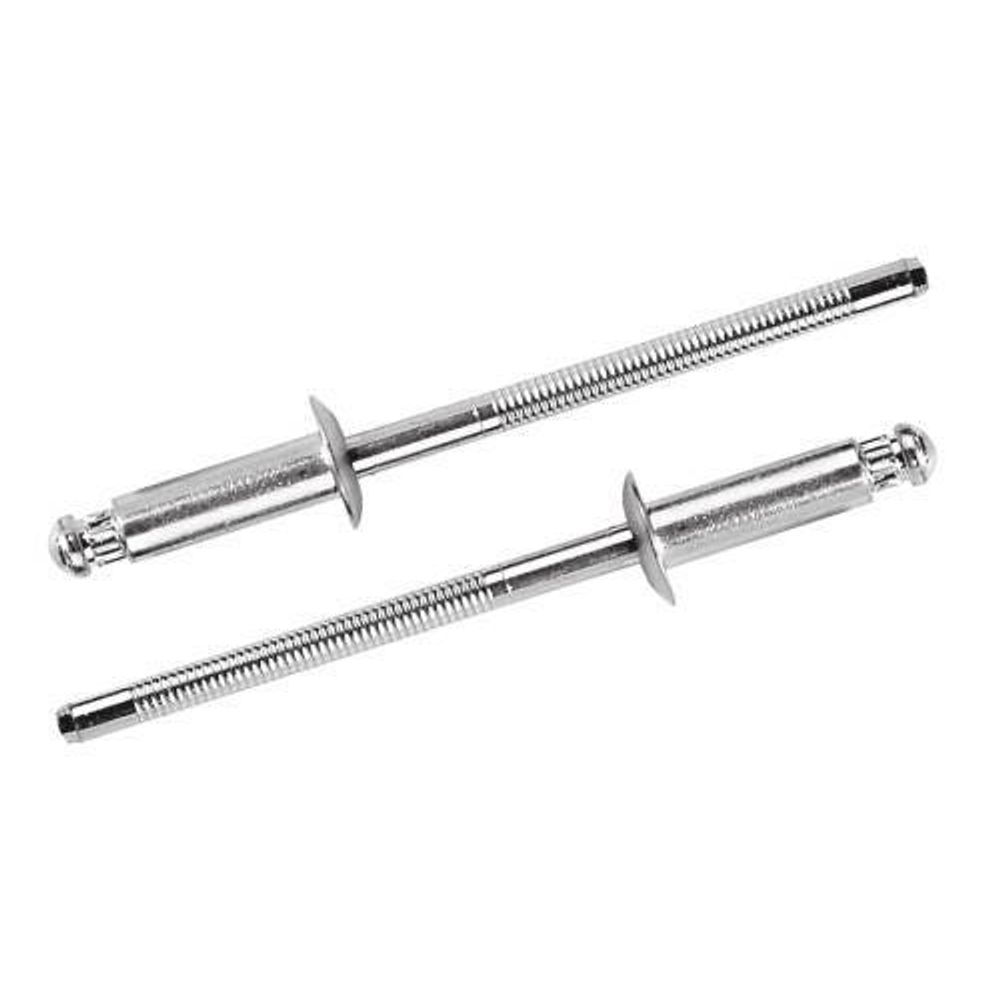

Q Rivet 3.2mm [1/8] (4) Aluminum / Aluminum Structural Rivet Nuts

Descrição do Produto

0-1.57 mm grip with 3.2mm [1/8] (4) Nominal Diameter based on Dome Head Style with Aluminum Body material and Aluminum Mandrel material

product name	0-1.5748 mm Aluminum/Aluminum Q Rivet Structural Blind Rivets
nominal Diameter	3.2mm [1/8] (4)
Body Material	Aluminum
Mandrel Material	Aluminum
Finish-Body	None
Finish- Mandrel	None
Head Style	Dome
Min grip mm	0.0
Max grip mm	1.57
Min Grip Inches	0.0
Max Grip Inches	0.062
Min Hole Size mm	3.28
Max Hole Size mm	3.38
Min Holes Size Inches	0.129
Max Hole Size Inches	0.133
Max Body Length mm	5.38
Max Body Length Inches	0.212
Max Secondary Protrusion mm	10.13
Max Secondary Protrusion inches	0.399
Flange Diameter mm	6.65
Flange Diameter inches	0.262
Flange Thickness mm	1.07
Flange Thickness Inches	0.042
Shear lbf	225
Tensile lbf	250
Brand	Avdel

JDE_HTS_Code	8308206000
JDE_Country_of_Origin	US
JDE_Lead_Time_Days	112
Features	Fast Facts: Structural breakstem rivet. Retained stem. Blind hole, one-sided installation capability. Weatherproof fastener. Interference lock formed by a splined stem. Provides powerful locking strength and hole filling. High shear and tensile strength. Spreads the tail bearing/clamp load on the rear sheet. Ideal for thin sheet materials. Provides strong, vibration resistant joints. No damage, electrical problems, or rattling due to loose stems. Breakstem fasteners can be customized to meet unique assembly requirements. Specifications: Sizes: 3.2 mm to 6.4 mm (1/8" to ¼") Materials: Aluminum alloy, steel, and stainless steel Headform: Protruding, large flange, and countersunk
