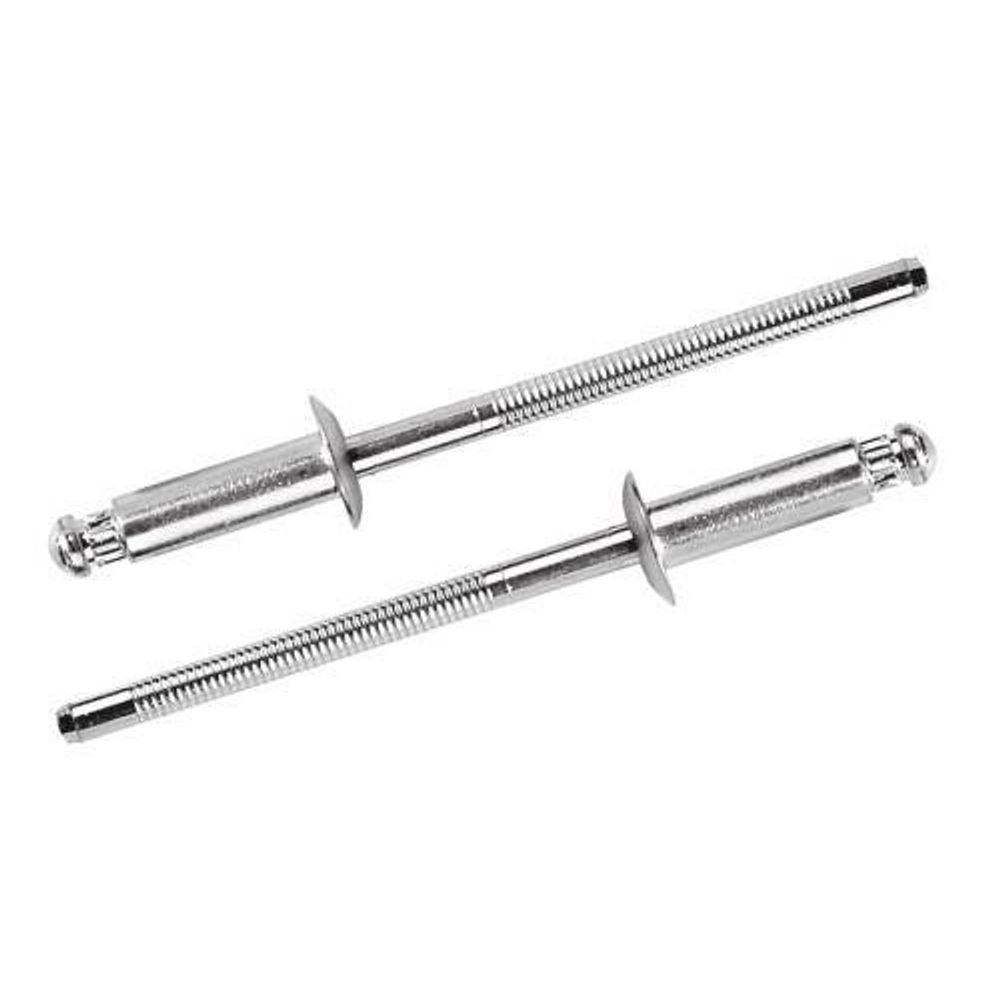

Q Rivet 4.8mm [3/16] (6) Aluminum / Aluminum Structural Rivet Nuts

Descrição do Produto

23.88-6.35 mm grip with 4.8mm [3/16] (6) Nominal Diameter based on Dome Head Style with Aluminum Body material and Aluminum Mandrel material

product name	23.876-6.35 mm Aluminum/Aluminum Q Rivet Structural Blind Rivets
nominal Diameter	4.8mm [3/16] (6)
Body Material	Aluminum
Mandrel Material	Aluminum
Finish-Body	None
Finish- Mandrel	None
Head Style	Dome
Min grip mm	23.88
Max grip mm	6.35
Min Grip Inches	0.94
Max Grip Inches	0.25
Min Hole Size mm	4.88
Max Hole Size mm	4.98
Min Holes Size Inches	0.192
Max Hole Size Inches	0.196
Max Body Length mm	11.43
Max Body Length Inches	0.45
Max Secondary Protrusion mm	17.83
Max Secondary Protrusion inches	0.702
Flange Diameter mm	10.01
Flange Diameter inches	0.394
Flange Thickness mm	1.45
Flange Thickness Inches	0.057
Shear lbf	500
Tensile lbf	450
Brand	Avdel

JDE_Weight_UOM	LB
JDE_Weight_Per_UOM	M
JDE_HTS_Code	8308206000
JDE_Country_of_Origin	US
JDE_Lead_Time_Days	112
JDE_Weight	3.042
Minimum Order Quantity	100000
Features	Fast Facts: Structural breakstem rivet. Retained stem. Blind hole, one-sided installation capability. Weatherproof fastener. Interference lock formed by a splined stem. Provides powerful locking strength and hole filling. High shear and tensile strength. Spreads the tail bearing/clamp load on the rear sheet. Ideal for thin sheet materials. Provides strong, vibration resistant joints. No damage, electrical problems, or rattling due to loose stems. Breakstem fasteners can be customized to meet unique assembly requirements. Specifications: Sizes: 3.2 mm to 6.4 mm (1/8" to ¼") Materials: Aluminum alloy, steel, and stainless steel Headform: Protruding, large flange, and countersunk
