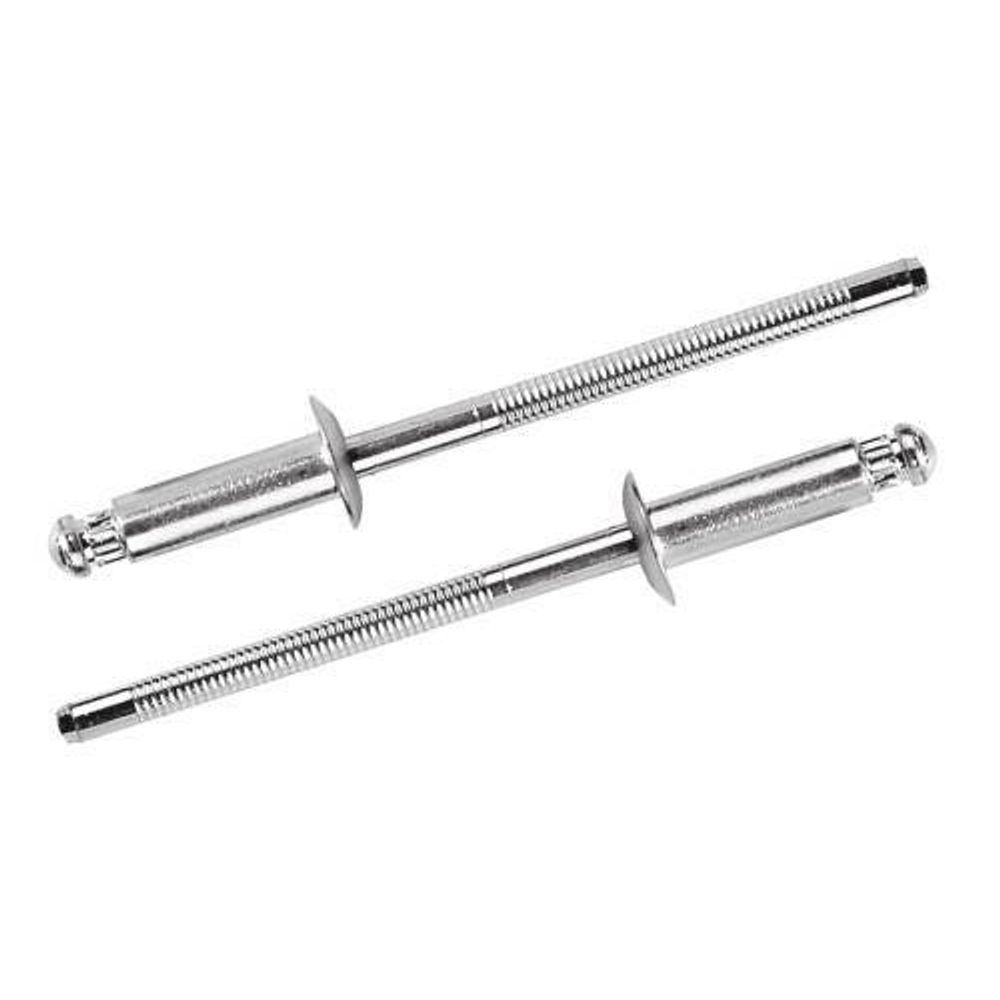

Q Rivet 4.8mm [3/16] (6) Aluminum / Aluminum Structural Rivet Nuts

Descrição do Produto

9.55-12.7 mm grip with 4.8mm [3/16] (6) Nominal Diameter based on Countersunk Head Style with Aluminum Body material and Aluminum Mandrel material

product name	9.5504-12.7 mm Aluminum/Aluminum Q Rivet Structural Blind Rivets
nominal Diameter	4.8mm [3/16] (6)
Body Material	Aluminum
Mandrel Material	Aluminum
Finish-Body	None
Finish- Mandrel	None
Head Style	Countersunk
Min grip mm	9.55
Max grip mm	12.7
Min Grip Inches	0.376
Max Grip Inches	0.5
Min Hole Size mm	4.88
Max Hole Size mm	4.98
Min Holes Size Inches	0.192
Max Hole Size Inches	0.196
Max Body Length mm	17.78
Max Body Length Inches	0.7
Max Secondary Protrusion mm	24.18
Max Secondary Protrusion inches	0.952
Flange Diameter mm	8.74
Flange Diameter inches	0.344
Flange Thickness mm	1.27
Flange Thickness Inches	0.05
Shear lbf	500
Tensile lbf	450
Brand	Avdel

JDE_Weight_UOM	LB
JDE_Weight_Per_UOM	M
JDE_HTS_Code	8308206000
JDE_Country_of_Origin	US
JDE_Lead_Time_Days	112
JDE_Weight	3.649
Features	Fast Facts: Structural breakstem rivet. Retained stem. Blind hole, one-sided installation capability. Weatherproof fastener. Interference lock formed by a splined stem. Provides powerful locking strength and hole filling. High shear and tensile strength. Spreads the tail bearing/clamp load on the rear sheet. Ideal for thin sheet materials. Provides strong, vibration resistant joints. No damage, electrical problems, or rattling due to loose stems. Breakstem fasteners can be customized to meet unique assembly requirements. Specifications: Sizes: 3.2 mm to 6.4 mm (1/8" to ¼") Materials: Aluminum alloy, steel, and stainless steel Headform: Protruding, large flange, and countersunk
