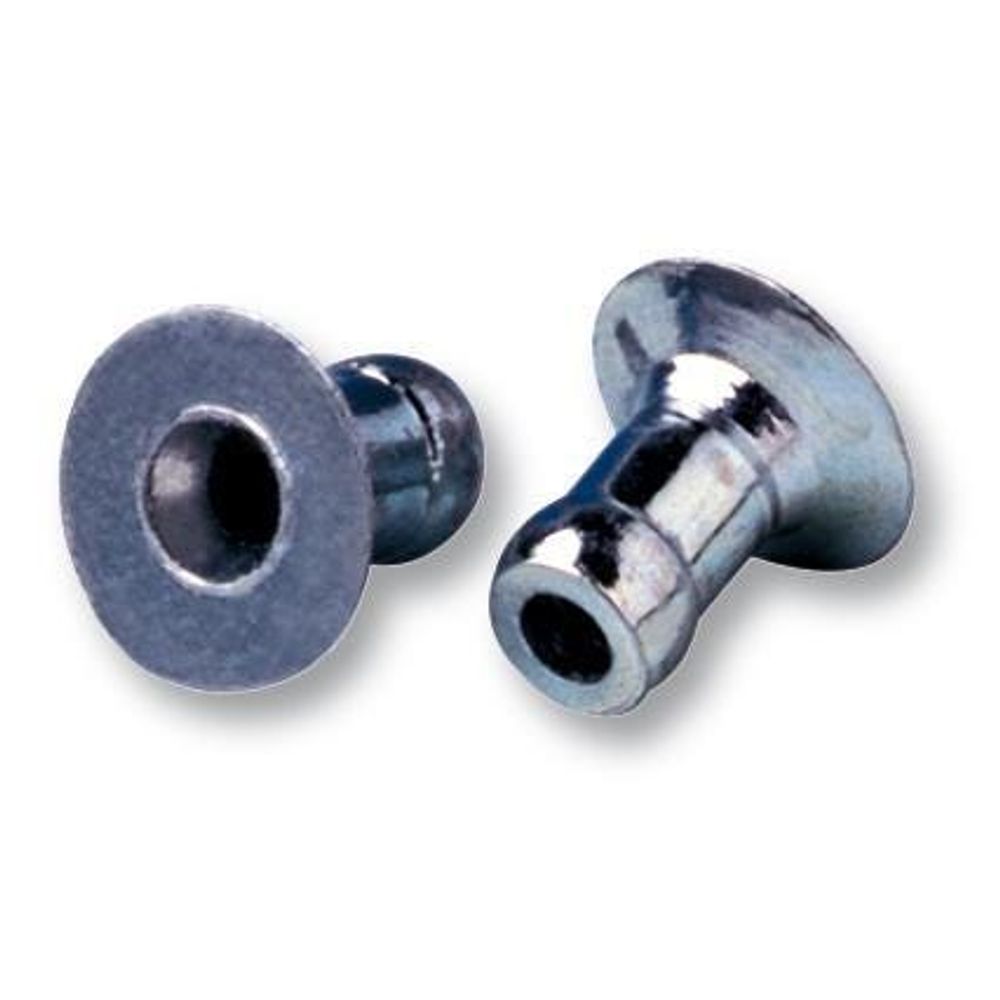

Briv 4 mm A2 Stainless Speed Fastener - 01841-00505
Cód:
01841-00505
Opinião dos Consumidores:0

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

1.57-2.93 mm grip with 4 Nominal Diameter with 3.97-4.04 mm Hole Size and A2 Stainless Material

Briv

BrandAvdel
nominal Diameter4.0
MaterialA2 Stainless
FinishPolished
Min grip mm1.57
Max grip mm2.93
Min Grip Inches0.06
Max Grip Inches0.11535433070866143
Min Hole Size mm3.97
Max Hole Size mm4.04
Min Holes Size Inches0.15629921259842522
Max Hole Size Inches0.15905511811023623
Body Length mm4.91
Body Length Inches0.19330708661417326
Max Secondary Protrusion mm3.87
Max Secondary Protrusion inches0.15236220472440945
Flange Diameter mm8.18
Flange Diameter inches0.3220472440944882
Flange Thickness mm0.99
Flange Thickness Inches0.03897637795275591
Shear kN2.45
Tensile kN3.6
Shear lbf550.7845000000001
Tensile lbf809.316
Fasteners per Pod52

default

JDE_Weight_UOMLB
JDE_Weight_Per_UOMM
JDE_HTS_Code7318230000
JDE_Country_of_OriginGB
JDE_Lead_Time_Days252
JDE_Weight10.82029
Minimum Order Quantity12000
Features

    Fast Facts:

  • Bulbed tail and foreshortening of the fastener during installation ensures high clamp.
  • Bulbed tail and large headform provide a large bearing area for soft materials.
  • Tapered tail for ease of hole entry.
  • Expands radially during installation to ensure maximum hole fill.
  • Lower in-place costs than welding or nail rivets.
  • Placed using a unique repetition mandrel system for high speed assembly.
  • Can be bowl fed for larger volume applications using automated equipment.
  • Available as a customized design to meet your unique assembly requirements.
  • Popular assembly applications include automotive, electronic components, sheet metal, electrical engineering, domestic appliances, furniture, and general light fabrication.

    • Specifications:
  • Sizes: 2.4mm (3/32") to 6.0mm
  • Materials: Aluminum alloy, steel, stainless steel, brass, and tin plated brass*
  • Headforms: Dome/mushroom, countersunk
