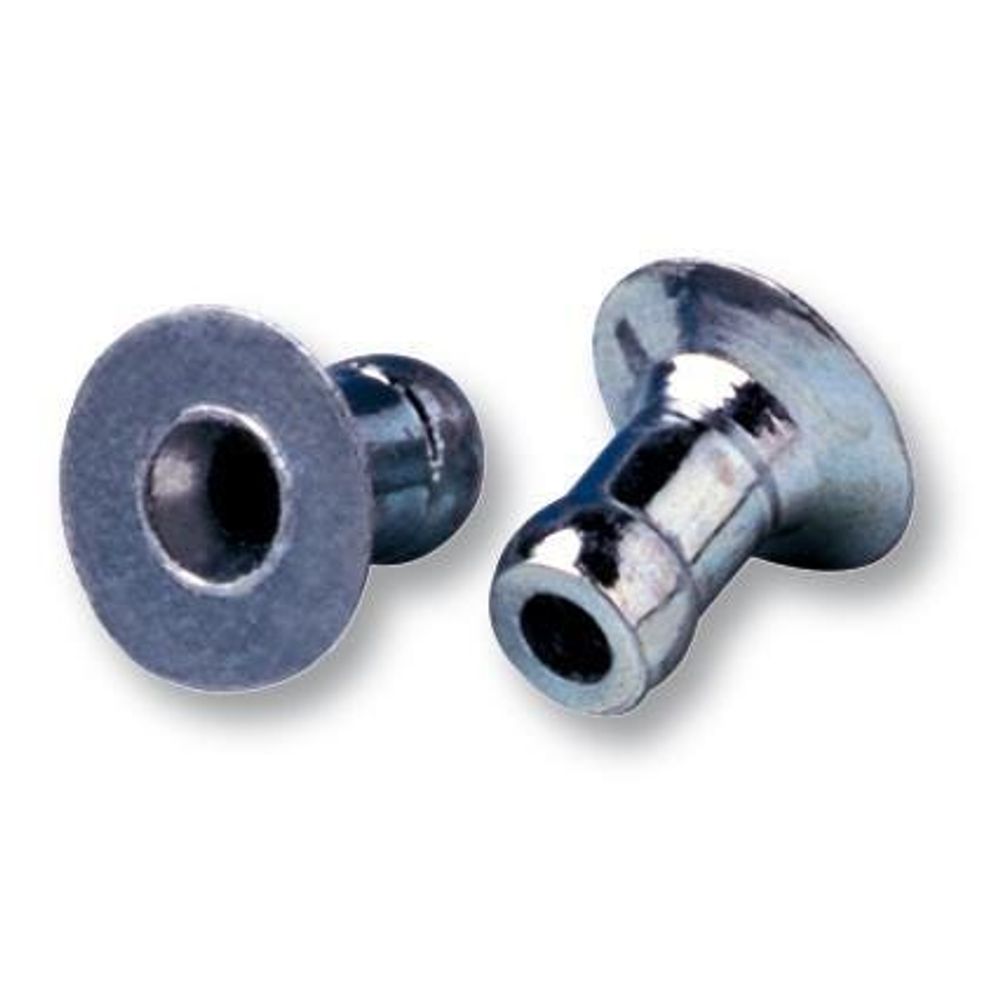

Briv 2.4 mm Brass Speed Fastener - 01833-00308
Cód:
01833-00308
Opinião dos Consumidores:0

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

3.17-4.45 mm grip with 2.4 Nominal Diameter with 2.36-2.44 mm Hole Size and Brass Material

Briv

BrandAvdel
nominal Diameter2.4
MaterialBrass
FinishElectro tin plated
Min grip mm3.17
Max grip mm4.45
Min Grip Inches0.12
Max Grip Inches0.1751968503937008
Min Hole Size mm2.36
Max Hole Size mm2.44
Min Holes Size Inches0.09291338582677165
Max Hole Size Inches0.09606299212598425
Body Length mm6.02
Body Length Inches0.23700787401574802
Max Secondary Protrusion mm2.35
Max Secondary Protrusion inches0.09251968503937008
Flange Diameter mm4.11
Flange Diameter inches0.16181102362204727
Flange Thickness mm0.89
Flange Thickness Inches0.03503937007874016
Shear kN0.44
Tensile kN0.89
Shear lbf98.9164
Tensile lbf200.0809
Fasteners per Pod44

default

JDE_Weight_UOMLB
JDE_Weight_Per_UOMM
JDE_HTS_Code7415290000
JDE_Country_of_OriginGB
JDE_Lead_Time_Days252
JDE_Weight6.26113
Minimum Order Quantity140000
Features

    Fast Facts:

  • Bulbed tail and foreshortening of the fastener during installation ensures high clamp.
  • Bulbed tail and large headform provide a large bearing area for soft materials.
  • Tapered tail for ease of hole entry.
  • Expands radially during installation to ensure maximum hole fill.
  • Lower in-place costs than welding or nail rivets.
  • Placed using a unique repetition mandrel system for high speed assembly.
  • Can be bowl fed for larger volume applications using automated equipment.
  • Available as a customized design to meet your unique assembly requirements.
  • Popular assembly applications include automotive, electronic components, sheet metal, electrical engineering, domestic appliances, furniture, and general light fabrication.

    • Specifications:
  • Sizes: 2.4mm (3/32") to 6.0mm
  • Materials: Aluminum alloy, steel, stainless steel, brass, and tin plated brass*
  • Headforms: Dome/mushroom, countersunk
