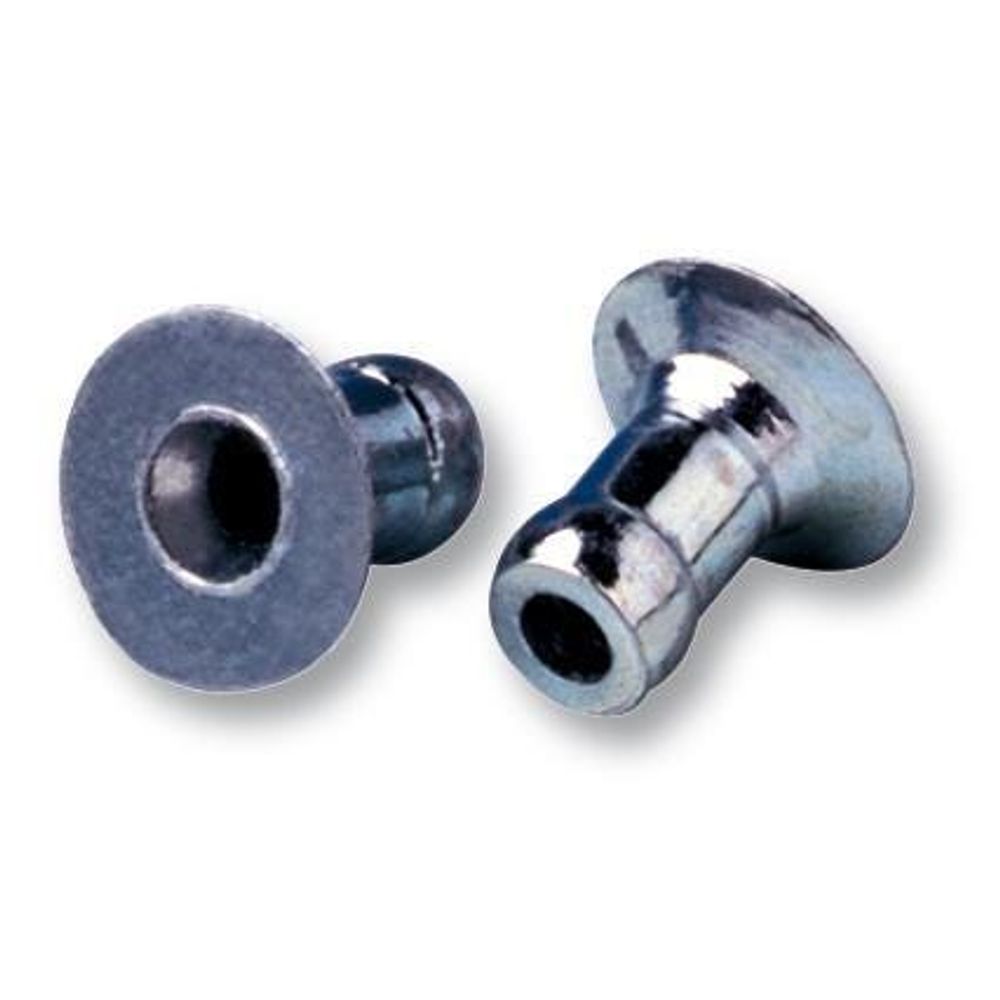

Briv 6 mm Steel Speed Fastener - 01821-06015
Cód:
01821-06015
Opinião dos Consumidores:0

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

6.73-7.99 mm grip with 6 Nominal Diameter with 5.94-6.02 mm Hole Size and Steel Material

Briv

BrandAvdel
nominal Diameter6.0
MaterialSteel
FinishZinc plated clear passivated
Min grip mm6.73
Max grip mm7.99
Min Grip Inches0.26
Max Grip Inches0.3145669291338583
Min Hole Size mm5.94
Max Hole Size mm6.02
Min Holes Size Inches0.23385826771653545
Max Hole Size Inches0.23700787401574802
Body Length mm10.99
Body Length Inches0.43267716535433076
Max Secondary Protrusion mm5.93
Max Secondary Protrusion inches0.23346456692913387
Flange Diameter mm11.55
Flange Diameter inches0.454724409448819
Flange Thickness mm1.35
Flange Thickness Inches0.05314960629921261
Shear kN2.58
Tensile kN4.22
Shear lbf580.0098
Tensile lbf948.6981999999999
Fasteners per Pod24

default

JDE_Weight_UOMLB
JDE_Weight_Per_UOMM
JDE_HTS_Code7318230000
JDE_Country_of_OriginGB
JDE_Lead_Time_Days252
JDE_Weight15.43236
Minimum Order Quantity4000
Features

    Fast Facts:

  • Bulbed tail and foreshortening of the fastener during installation ensures high clamp.
  • Bulbed tail and large headform provide a large bearing area for soft materials.
  • Tapered tail for ease of hole entry.
  • Expands radially during installation to ensure maximum hole fill.
  • Lower in-place costs than welding or nail rivets.
  • Placed using a unique repetition mandrel system for high speed assembly.
  • Can be bowl fed for larger volume applications using automated equipment.
  • Available as a customized design to meet your unique assembly requirements.
  • Popular assembly applications include automotive, electronic components, sheet metal, electrical engineering, domestic appliances, furniture, and general light fabrication.

    • Specifications:
  • Sizes: 2.4mm (3/32") to 6.0mm
  • Materials: Aluminum alloy, steel, stainless steel, brass, and tin plated brass*
  • Headforms: Dome/mushroom, countersunk
