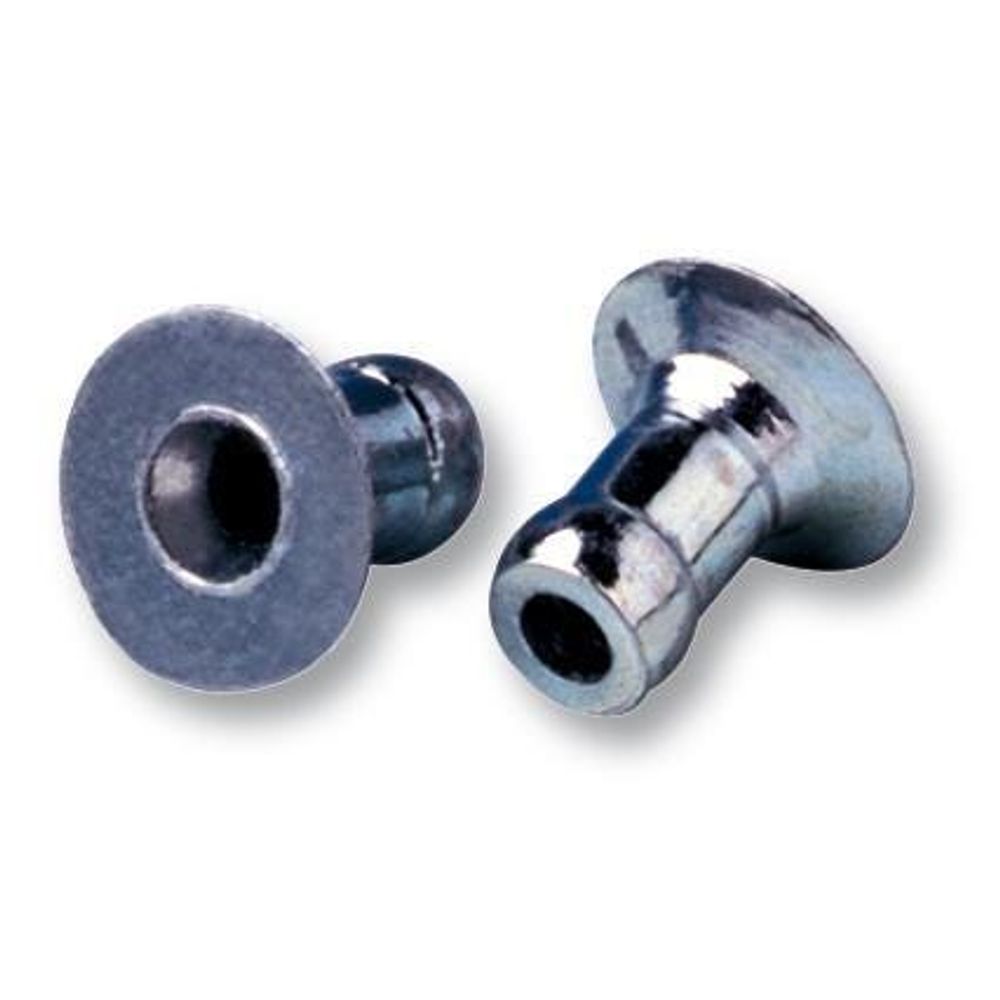

Briv 3.2 mm Brass Speed Fastener - 01833-00410
Cód:
01833-00410
Opinião dos Consumidores:0

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

3.17-4.45 mm grip with 3.2 Nominal Diameter with 3.26-3.34 mm Hole Size and Brass Material

Briv

BrandAvdel
nominal Diameter3.2
MaterialBrass
FinishElectro tin plated
Min grip mm3.17
Max grip mm4.45
Min Grip Inches0.12
Max Grip Inches0.1751968503937008
Min Hole Size mm3.26
Max Hole Size mm3.34
Min Holes Size Inches0.1283464566929134
Max Hole Size Inches0.131496062992126
Body Length mm6.41
Body Length Inches0.25236220472440946
Max Secondary Protrusion mm3.16
Max Secondary Protrusion inches0.12440944881889765
Flange Diameter mm6.53
Flange Diameter inches0.25708661417322837
Flange Thickness mm0.99
Flange Thickness Inches0.03897637795275591
Shear kN1.11
Tensile kN1.91
Shear lbf249.53910000000002
Tensile lbf429.3871
Fasteners per Pod42

default

JDE_Weight_UOMLB
JDE_Weight_Per_UOMM
JDE_HTS_Code7415290000
JDE_Country_of_OriginGB
JDE_Lead_Time_Days252
JDE_Weight7.8705
Minimum Order Quantity100000
Features

    Fast Facts:

  • Bulbed tail and foreshortening of the fastener during installation ensures high clamp.
  • Bulbed tail and large headform provide a large bearing area for soft materials.
  • Tapered tail for ease of hole entry.
  • Expands radially during installation to ensure maximum hole fill.
  • Lower in-place costs than welding or nail rivets.
  • Placed using a unique repetition mandrel system for high speed assembly.
  • Can be bowl fed for larger volume applications using automated equipment.
  • Available as a customized design to meet your unique assembly requirements.
  • Popular assembly applications include automotive, electronic components, sheet metal, electrical engineering, domestic appliances, furniture, and general light fabrication.

    • Specifications:
  • Sizes: 2.4mm (3/32") to 6.0mm
  • Materials: Aluminum alloy, steel, stainless steel, brass, and tin plated brass*
  • Headforms: Dome/mushroom, countersunk
