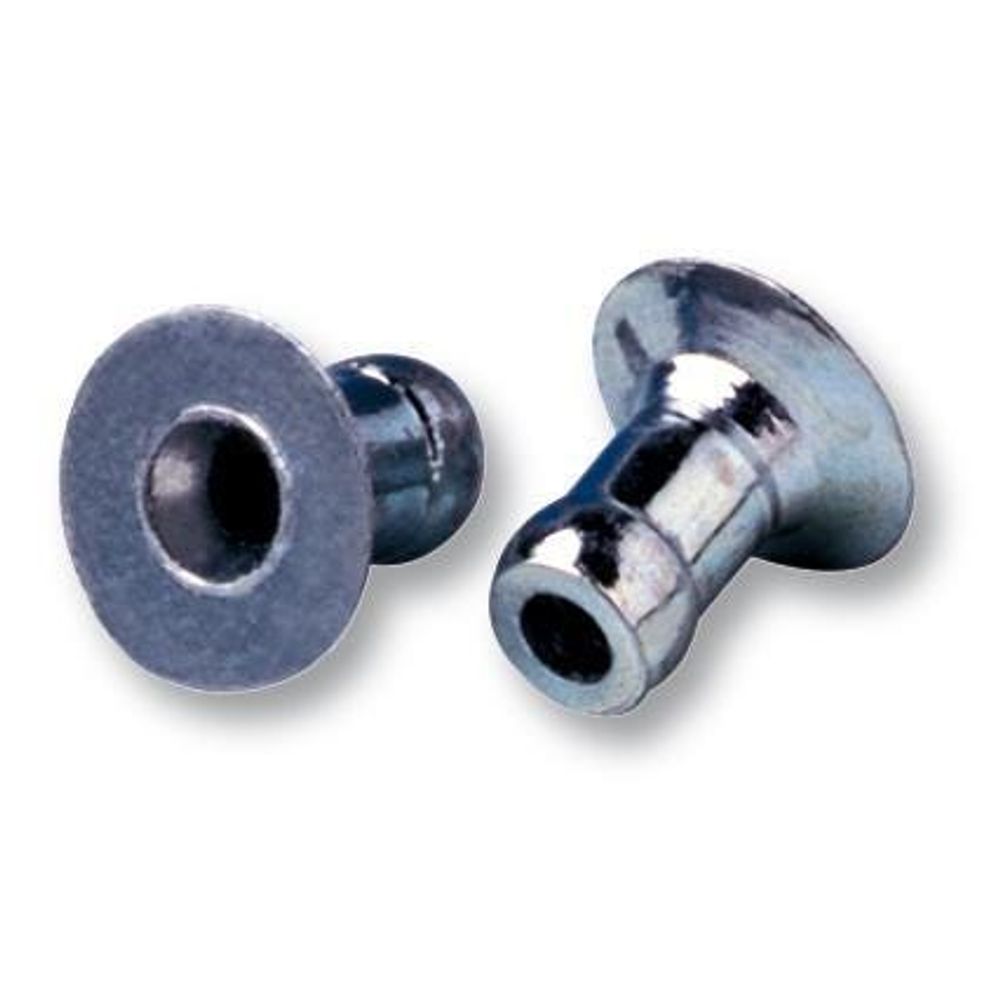

Briv 4.8 mm A2 Stainless Speed Fastener - 01841-00609
Cód:
01841-00609
Opinião dos Consumidores:0

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

3.68-5.21 mm grip with 4.8 Nominal Diameter with 4.85-4.93 mm Hole Size and A2 Stainless Material

Briv

BrandAvdel
nominal Diameter4.8
MaterialA2 Stainless
FinishPolished
Min grip mm3.68
Max grip mm5.21
Min Grip Inches0.14
Max Grip Inches0.20511811023622048
Min Hole Size mm4.85
Max Hole Size mm4.93
Min Holes Size Inches0.19094488188976377
Max Hole Size Inches0.19409448818897637
Body Length mm7.37
Body Length Inches0.29015748031496064
Max Secondary Protrusion mm4.77
Max Secondary Protrusion inches0.18779527559055118
Flange Diameter mm9.71
Flange Diameter inches0.3822834645669292
Flange Thickness mm1.17
Flange Thickness Inches0.046062992125984255
Shear kN3.56
Tensile kN5.12
Shear lbf800.3236
Tensile lbf1151.0272
Fasteners per Pod35

default

JDE_Weight_UOMLB
JDE_Weight_Per_UOMM
JDE_HTS_Code7318230000
JDE_Country_of_OriginGB
JDE_Lead_Time_Days252
JDE_Weight13.26301
Minimum Order Quantity8000
Features

    Fast Facts:

  • Bulbed tail and foreshortening of the fastener during installation ensures high clamp.
  • Bulbed tail and large headform provide a large bearing area for soft materials.
  • Tapered tail for ease of hole entry.
  • Expands radially during installation to ensure maximum hole fill.
  • Lower in-place costs than welding or nail rivets.
  • Placed using a unique repetition mandrel system for high speed assembly.
  • Can be bowl fed for larger volume applications using automated equipment.
  • Available as a customized design to meet your unique assembly requirements.
  • Popular assembly applications include automotive, electronic components, sheet metal, electrical engineering, domestic appliances, furniture, and general light fabrication.

    • Specifications:
  • Sizes: 2.4mm (3/32") to 6.0mm
  • Materials: Aluminum alloy, steel, stainless steel, brass, and tin plated brass*
  • Headforms: Dome/mushroom, countersunk
