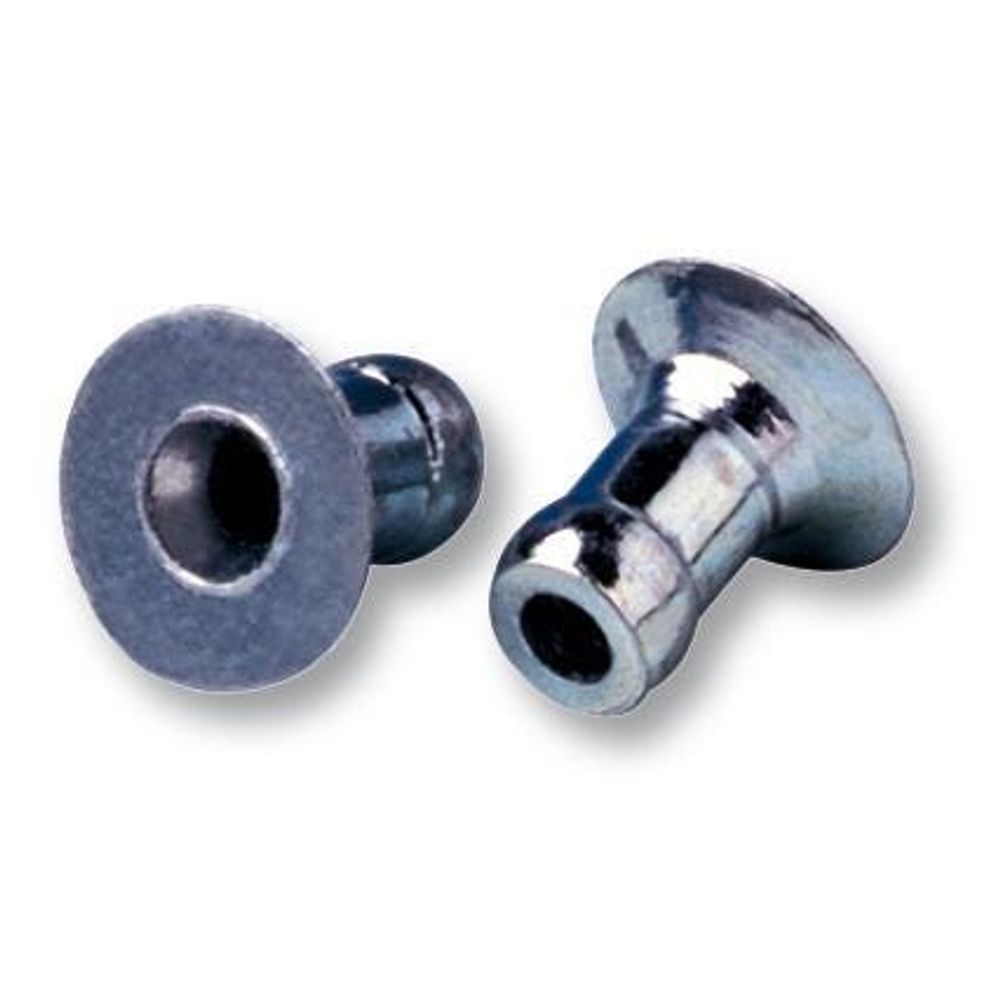

Briv 3.2 mm Steel Speed Fastener - 01822-00408
Cód:
01822-00408
Opinião dos Consumidores:0

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

3.56-4.83 mm grip with 3.2 Nominal Diameter with 3.26-3.34 mm Hole Size and Steel Material

Briv

BrandAvdel
nominal Diameter3.2
MaterialSteel
FinishZinc plated clear passivated
Min grip mm3.56
Max grip mm4.83
Min Grip Inches0.14
Max Grip Inches0.19015748031496063
Min Hole Size mm3.26
Max Hole Size mm3.34
Min Holes Size Inches0.1283464566929134
Max Hole Size Inches0.131496062992126
Body Length mm6.81
Body Length Inches0.2681102362204724
Max Secondary Protrusion mm3.17
Max Secondary Protrusion inches0.12480314960629922
Flange Diameter mm5.84
Flange Diameter inches0.22992125984251968
Flange Thickness mm0.76
Flange Thickness Inches0.029921259842519688
Shear kN0.95
Tensile kN1.65
Shear lbf213.5695
Tensile lbf370.93649999999997
Fasteners per Pod44

default

JDE_Weight_UOMLB
JDE_Weight_Per_UOMM
JDE_HTS_Code7318230000
JDE_Country_of_OriginGB
JDE_Lead_Time_Days252
JDE_Weight8.79644
Minimum Order Quantity14000
Features

    Fast Facts:

  • Bulbed tail and foreshortening of the fastener during installation ensures high clamp.
  • Bulbed tail and large headform provide a large bearing area for soft materials.
  • Tapered tail for ease of hole entry.
  • Expands radially during installation to ensure maximum hole fill.
  • Lower in-place costs than welding or nail rivets.
  • Placed using a unique repetition mandrel system for high speed assembly.
  • Can be bowl fed for larger volume applications using automated equipment.
  • Available as a customized design to meet your unique assembly requirements.
  • Popular assembly applications include automotive, electronic components, sheet metal, electrical engineering, domestic appliances, furniture, and general light fabrication.

    • Specifications:
  • Sizes: 2.4mm (3/32") to 6.0mm
  • Materials: Aluminum alloy, steel, stainless steel, brass, and tin plated brass*
  • Headforms: Dome/mushroom, countersunk
