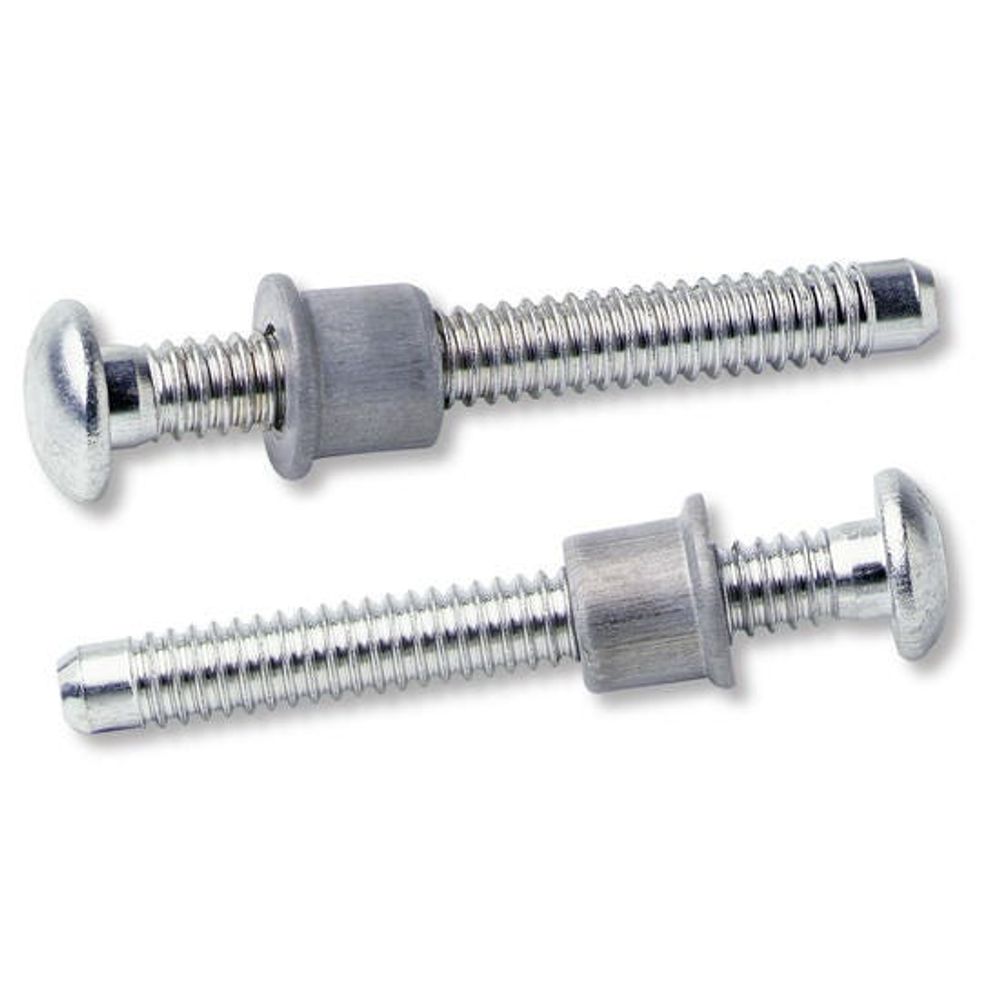

AVDEL Aluminum Lockbolts with 4.8mm [3/16] (6) nominal diameter with 7.92 - 31.75 mm grip range - 01921-00620
Cód:
01921-00620
Opinião dos Consumidores:0

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

7.92-31.75 mm grip with 4.8mm [3/16] (6) Nominal Diameter based on Brazier Head head style and Aluminum Pin Material

Maxlok

nominal Diameter4.8mm [3/16] (6)
Pin MaterialAluminum
Head StyleBrazier Head
Min grip mm7.92
Max grip mm31.75
Min Grip Inches0.312
Max Grip Inches1.25
Min Hole Size mm5.26
Max Hole Size mm5.16
Max Hole Size Inches0.203
Head Diameter mm10.01
Head Diameter inches0.394
Head Thickness mm3.38
Head Thickness Inches0.133
Shear kN4.23
Tensile kN5.78
Shear lbf950.0
Tensile lbf1300.0
Full Collar Part No.01985-00600
Body Length mm0.0

default

JDE_Weight_UOMLB
JDE_Weight_Per_UOMM
JDE_HTS_Code7616109090
JDE_Country_of_OriginUS
JDE_Lead_Time_Days98
JDE_Weight6.812
Minimum Order Quantity30000
Features

    Fast Facts:

  • Wide grip range to suit a wide variety of applications.
  • High shear and tensile strength.
  • High-strength, high-speed assembly.
  • Excellent vibration resistance.
  • Consistent, high performance.
  • TIR approved – easy to inspect for tampering.
  • Robust and rugged installation tools.
  • Reduced fastener inventory and simpler stock control.

    • Specifications:
  • Sizes: 4.8mm and 6.4mm (3/16" and ¼")
  • Materials: Aluminum alloy and steel
  • Headforms: Brazier, countersunk, mushroom, and truss head
  • Collar: Flanged
