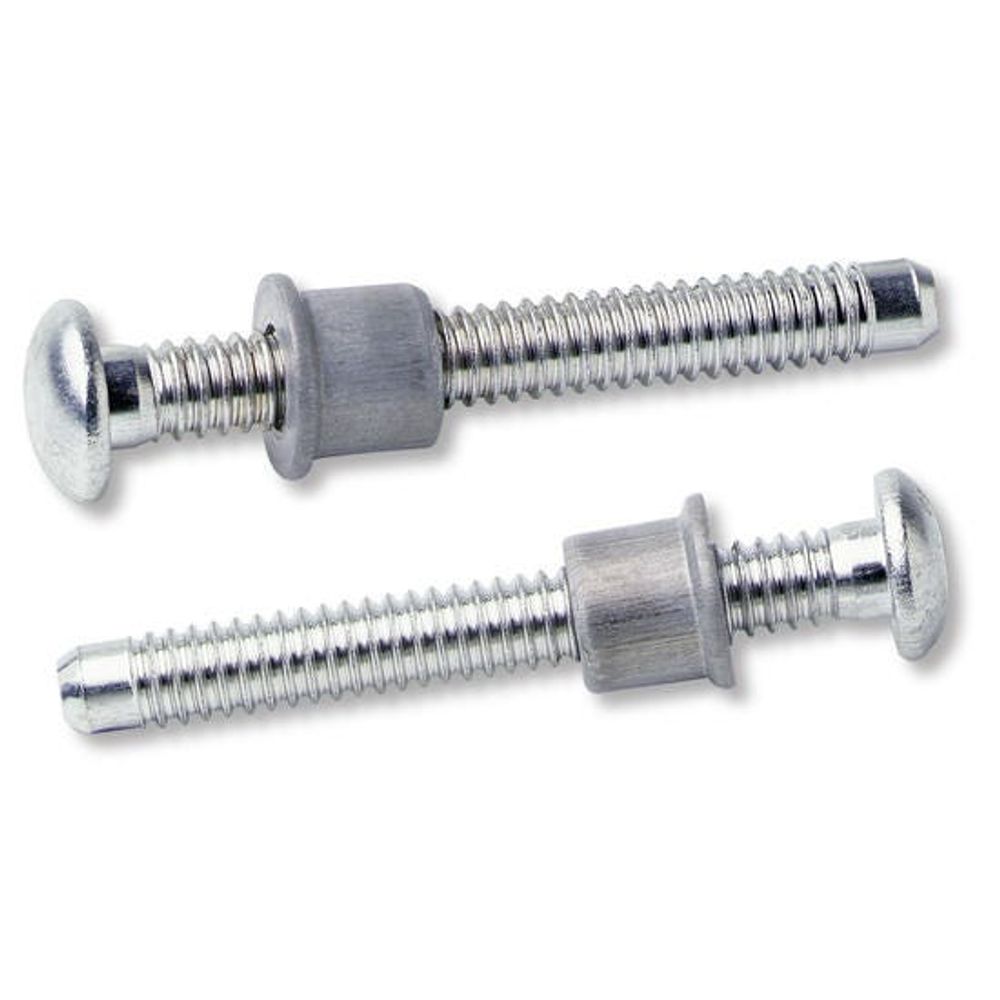

AVDEL Steel Lockbolts with 6.4mm [1/4] (8) nominal diameter with 7.92 - 31.75 mm grip range - 01903-70820
Cód:
01903-70820
Opinião dos Consumidores:0

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

7.92-31.75 mm grip with 6.4mm [1/4] (8) Nominal Diameter based on Mushroom Head head style and Steel Pin Material

Maxlok

nominal Diameter6.4mm [1/4] (8)
Pin MaterialSteel
Head StyleMushroom Head
Min grip mm7.92
Max grip mm31.75
Min Grip Inches0.312
Max Grip Inches1.25
Min Hole Size mm6.73
Max Hole Size mm6.73
Max Hole Size Inches0.265
Head Diameter mm16.69
Head Diameter inches0.657
Head Thickness mm3.2
Head Thickness Inches0.126
Shear kN11.79
Tensile kN16.01
Shear lbf2650.0
Tensile lbf3600.0
Full Collar Part No.01981-70800
Body Length mm0.0

default

JDE_Weight_UOMLB
JDE_Weight_Per_UOMM
JDE_HTS_Code7318290000
JDE_Country_of_OriginUS
JDE_Lead_Time_Days112
JDE_Weight38.802
Minimum Order Quantity750
Features

    Fast Facts:

  • Wide grip range to suit a wide variety of applications.
  • High shear and tensile strength.
  • High-strength, high-speed assembly.
  • Excellent vibration resistance.
  • Consistent, high performance.
  • TIR approved – easy to inspect for tampering.
  • Robust and rugged installation tools.
  • Reduced fastener inventory and simpler stock control.

    • Specifications:
  • Sizes: 4.8mm and 6.4mm (3/16" and ¼")
  • Materials: Aluminum alloy and steel
  • Headforms: Brazier, countersunk, mushroom, and truss head
  • Collar: Flanged
