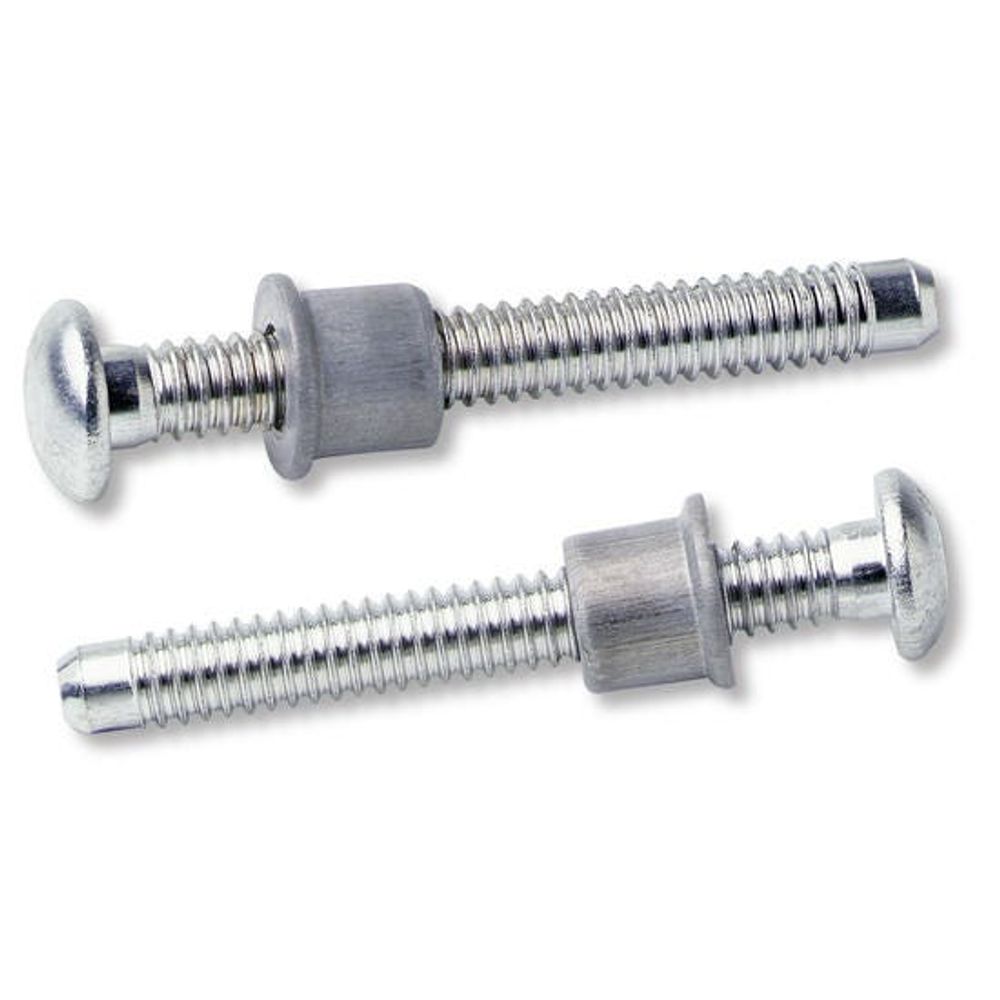

AVDEL Steel Lockbolts with 6.4mm [1/4] (8) nominal diameter with 1.57 - 15.88 mm grip range - 01901-70810
Cód:
01901-70810
Opinião dos Consumidores:0

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

1.57-15.88 mm grip with 6.4mm [1/4] (8) Nominal Diameter based on Brazier Head head style and Steel Pin Material

Maxlok

nominal Diameter6.4mm [1/4] (8)
Pin MaterialSteel
Head StyleBrazier Head
Min grip mm1.57
Max grip mm15.88
Min Grip Inches0.062
Max Grip Inches0.625
Min Hole Size mm6.73
Max Hole Size mm6.73
Max Hole Size Inches0.265
Head Diameter mm13.34
Head Diameter inches0.525
Head Thickness mm3.89
Head Thickness Inches0.153
Shear kN11.79
Tensile kN16.01
Shear lbf2650.0
Tensile lbf3600.0
Full Collar Part No.01981-70800
Body Length mm0.0

default

JDE_Weight_UOMLB
JDE_Weight_Per_UOMM
JDE_HTS_Code7318290000
JDE_Country_of_OriginUS
JDE_Lead_Time_Days112
JDE_Weight29.269
Minimum Order Quantity30000
Features

    Fast Facts:

  • Wide grip range to suit a wide variety of applications.
  • High shear and tensile strength.
  • High-strength, high-speed assembly.
  • Excellent vibration resistance.
  • Consistent, high performance.
  • TIR approved – easy to inspect for tampering.
  • Robust and rugged installation tools.
  • Reduced fastener inventory and simpler stock control.

    • Specifications:
  • Sizes: 4.8mm and 6.4mm (3/16" and ¼")
  • Materials: Aluminum alloy and steel
  • Headforms: Brazier, countersunk, mushroom, and truss head
  • Collar: Flanged
