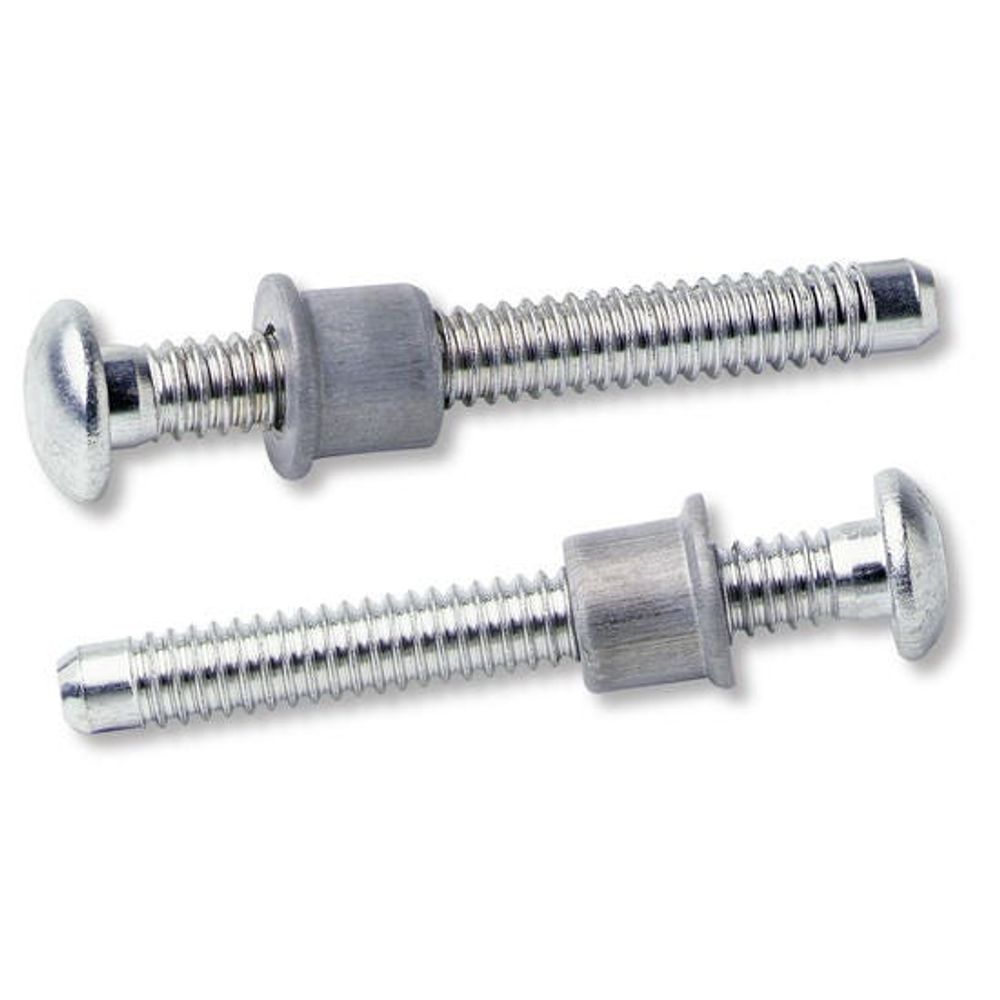

AVDEL Steel Lockbolts with 4.8mm [3/16] (6) nominal diameter with 1.57 - 15.88 mm grip range - 01903-70610
Cód:
01903-70610
Opinião dos Consumidores:0

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

1.57-15.88 mm grip with 4.8mm [3/16] (6) Nominal Diameter based on Mushroom Head head style and Steel Pin Material

Maxlok

Body Length mm0.0
Full Collar Part No.01981-70600
Tensile lbf2250.0
Shear lbf1855.0
Tensile kN10.01
Shear kN8.25
Head Thickness Inches0.111
Head Thickness mm2.82
Head Diameter inches0.491
Head Diameter mm12.47
Max Hole Size Inches0.203
Max Hole Size mm5.16
Min Hole Size mm5.16
Max Grip Inches0.625
Min Grip Inches0.062
Max grip mm15.88
Min grip mm1.57
Head StyleMushroom Head
Pin MaterialSteel
nominal Diameter4.8mm [3/16] (6)

default

JDE_Weight_UOMLB
JDE_Weight_Per_UOMM
JDE_HTS_Code7318290000
JDE_Country_of_OriginUS
JDE_Lead_Time_Days112
JDE_Weight15.4037
Minimum Order Quantity15000
Features

    Fast Facts:

  • Wide grip range to suit a wide variety of applications.
  • High shear and tensile strength.
  • High-strength, high-speed assembly.
  • Excellent vibration resistance.
  • Consistent, high performance.
  • TIR approved – easy to inspect for tampering.
  • Robust and rugged installation tools.
  • Reduced fastener inventory and simpler stock control.

    • Specifications:
  • Sizes: 4.8mm and 6.4mm (3/16" and ¼")
  • Materials: Aluminum alloy and steel
  • Headforms: Brazier, countersunk, mushroom, and truss head
  • Collar: Flanged
