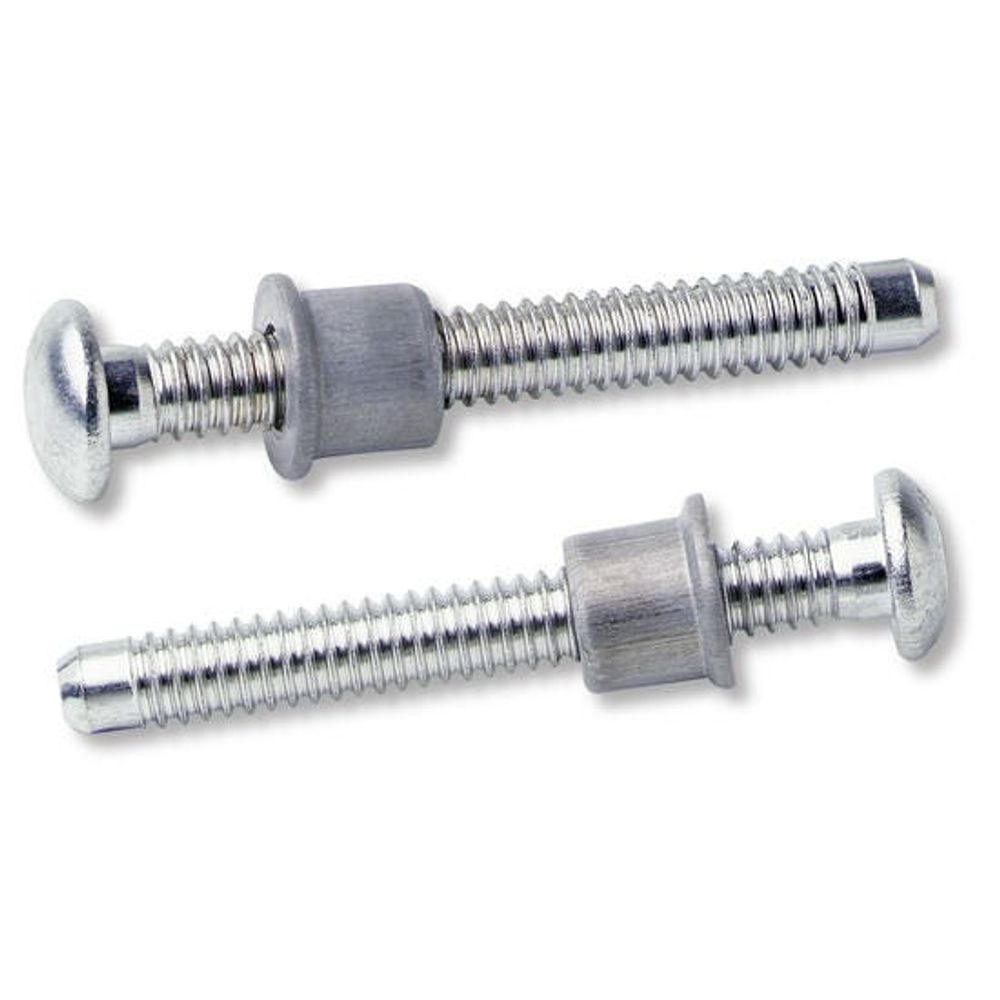

AVDEL Steel Lockbolts with 4.8mm [3/16] (6) nominal diameter with 2.44 - 15.88 mm grip range - 01902-70610
Cód:
01902-70610
Opinião dos Consumidores:0

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

2.44-15.88 mm grip with 4.8mm [3/16] (6) Nominal Diameter based on Countersunk head style and Steel Pin Material

Maxlok

nominal Diameter4.8mm [3/16] (6)
Pin MaterialSteel
Head StyleCountersunk
Min grip mm2.44
Max grip mm15.88
Min Grip Inches0.096
Max Grip Inches0.625
Min Hole Size mm5.16
Max Hole Size mm5.16
Max Hole Size Inches0.203
Head Diameter mm8.86
Head Diameter inches0.349
Head Thickness mm2.16
Head Thickness Inches0.085
Shear kN8.25
Tensile kN10.01
Shear lbf1855.0
Tensile lbf2250.0
Full Collar Part No.01981-70600
Body Length mm0.0

default

JDE_Weight_UOMLB
JDE_Weight_Per_UOMM
JDE_HTS_Code7318290000
JDE_Country_of_OriginUS
JDE_Lead_Time_Days112
JDE_Weight13.427
Minimum Order Quantity1500
Features

    Fast Facts:

  • Wide grip range to suit a wide variety of applications.
  • High shear and tensile strength.
  • High-strength, high-speed assembly.
  • Excellent vibration resistance.
  • Consistent, high performance.
  • TIR approved – easy to inspect for tampering.
  • Robust and rugged installation tools.
  • Reduced fastener inventory and simpler stock control.

    • Specifications:
  • Sizes: 4.8mm and 6.4mm (3/16" and ¼")
  • Materials: Aluminum alloy and steel
  • Headforms: Brazier, countersunk, mushroom, and truss head
  • Collar: Flanged
