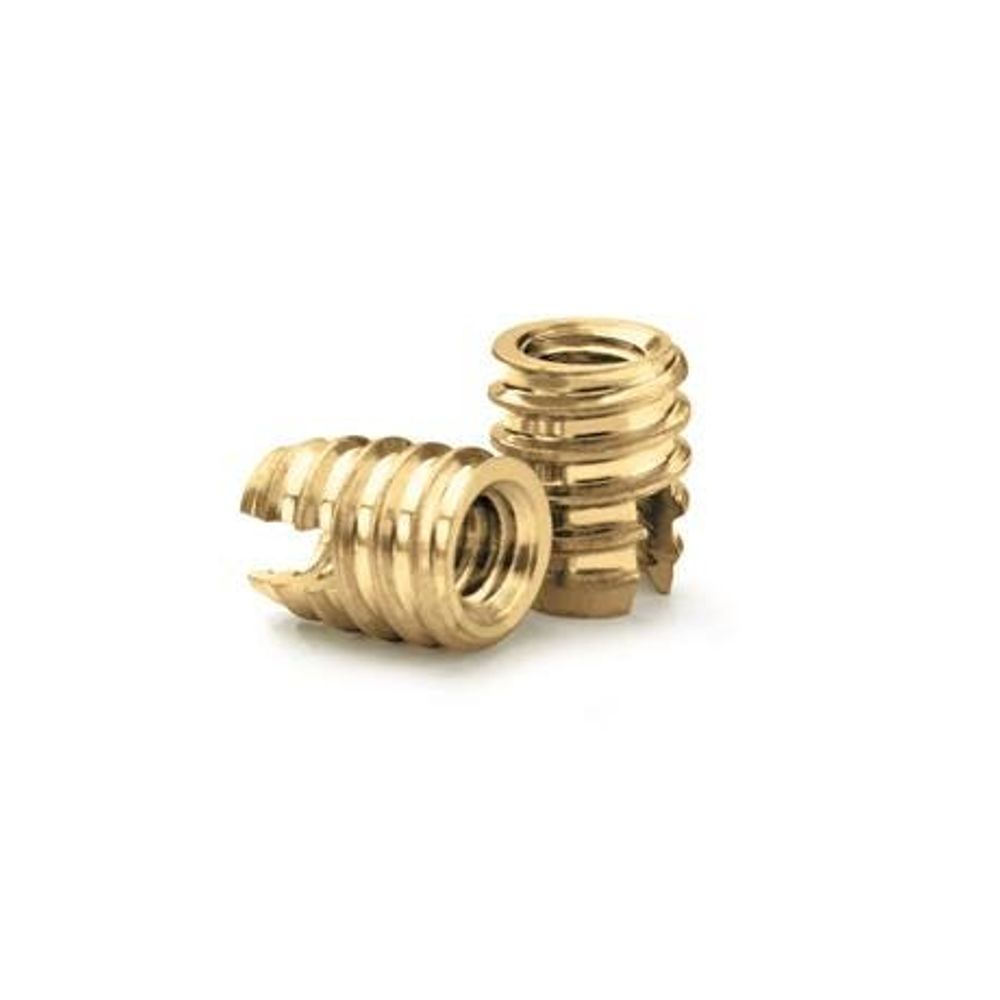

Dodge M6x1 Self Threading Solid Inserts 12.29 mm Length - STM6x1
Cód:
STM6x1
De: $0.00Por: $0.02ou X de
Preço a vista: $0.02
De: $0.00Por: $0.02ou X de
Preço a vista: $0.02
| Brand | Dodge |
|---|---|
| Thread Size | M6x1 Metric |
| Length | 12.29 mm |
| Body Diameter | 9.50 mm |
| Pilot Diameter | 7.67 mm |
| MaxHoleDiameterThermoset | 8.71mm |
| Minimum Hole Diameter Thermoset | 8.53 mm |
| Max Hole Diameter Thermoplastic | 8.58 mm |
| Minimum Hole Diameter Thermoplastic | 8.38 mm |
| Hole Depth | 14.76 mm |
| Minimum Boss Diameter | 19.00 mm |
| Counterbore Diameter | 9.53 mm |
| Counterbore Depth | 1.60 mm |
| JDE_Weight_Per_UOM | M |
|---|---|
| JDE_HTS_Code | 7415390000 |
| JDE_Country_of_Origin | US |
| JDE_Lead_Time_Days | 70 |
| JDE_Weight | 5.32993 |
| Features |
Insert cuts its own thread cleanly and evenly. |
