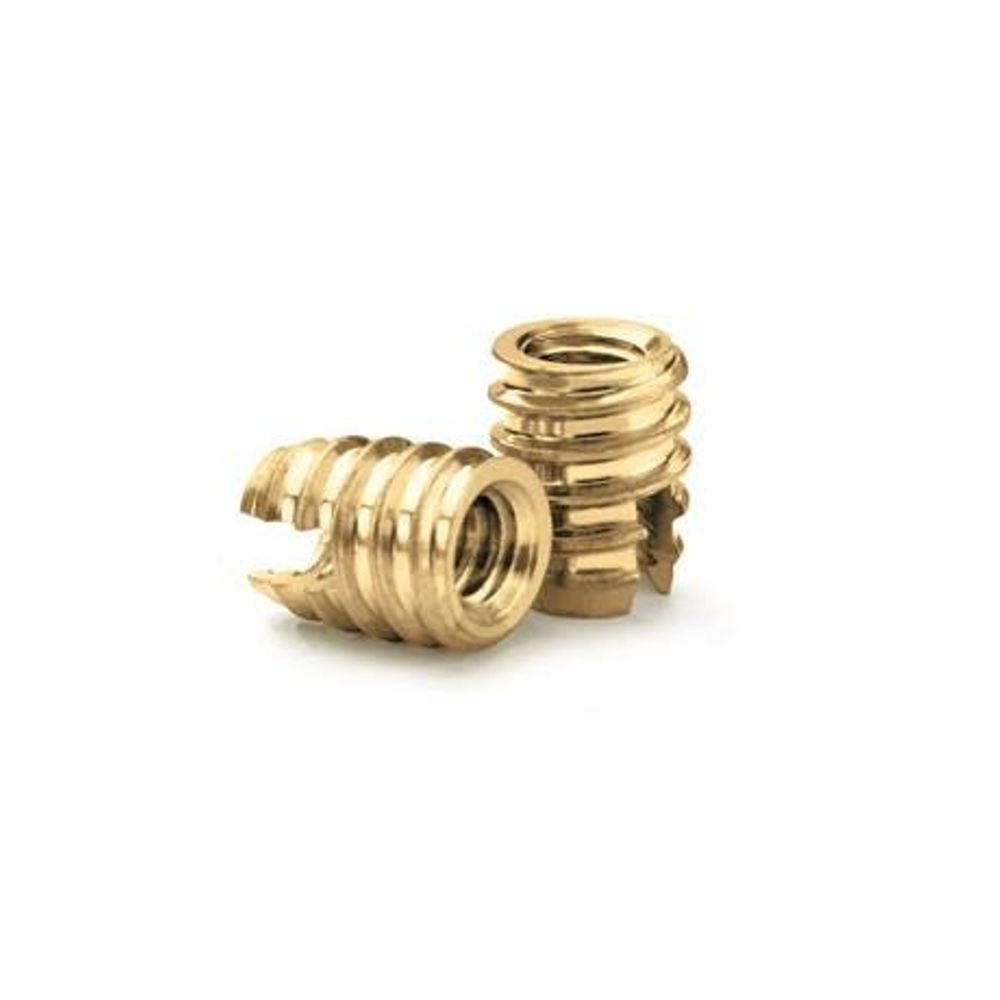

Dodge 4-40 Self Threading Solid Inserts .234 Inch Length - ST112-40
Cód:
ST112-40
De: $0.00Por: $0.02ou X de
Preço a vista: $0.02
De: $0.00Por: $0.02ou X de
Preço a vista: $0.02
| Brand | Dodge |
|---|---|
| Thread Size | 4-40 Inches |
| Length | .234 Inch |
| Body Diameter | .171 Inch |
| Pilot Diameter | .132 Inch |
| MaxHoleDiameterThermoset | .156Inch |
| Minimum Hole Diameter Thermoset | .152 Inch |
| Max Hole Diameter Thermoplastic | .152 Inch |
| Minimum Hole Diameter Thermoplastic | .149 Inch |
| Hole Depth | .281 Inch |
| Minimum Boss Diameter | .342 Inch |
| Counterbore Diameter | .172 Inch |
| Counterbore Depth | .042 Inch |
| JDE_Weight_UOM | LB |
|---|---|
| JDE_Weight_Per_UOM | M |
| JDE_HTS_Code | 7415390000 |
| JDE_Country_of_Origin | US |
| JDE_Lead_Time_Days | 70 |
| JDE_Weight | 0.58905 |
| Features |
Insert cuts its own thread cleanly and evenly. |
